Configuring Broadband Using Separate System Components

To configure a broadband system follow these 3 simple steps:
1. Select 1 of the PNA or PNA-X models in the tables below
2. Select the N5292A test set with the correct interconnect cable options
3. Select the N5293A or N5295A frequency extender

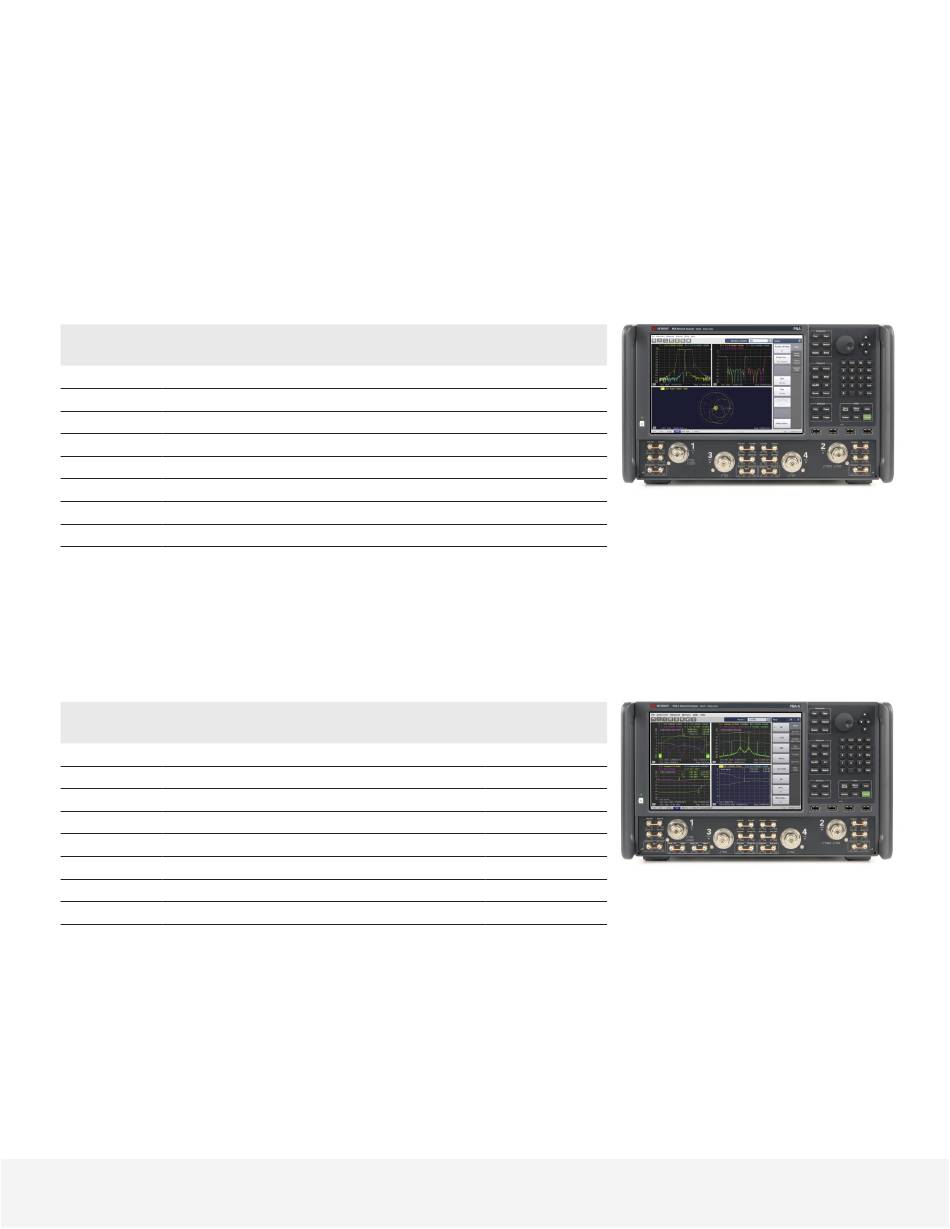

Step 1: Supported PNA Configurations

Product/
1,2
option Description
N5222B-201 26.5 GHz 2-Port PNA with configurable test set option
N5222B-401 26.5 GHz 4-Port PNA with configurable test set option
N5224B-201 43.5 GHz 2-Port PNA with configurable test set option
N5224B-401 43.5 GHz 4-Port PNA with configurable test set option
N5225B-201 50 GHz 2-Port PNA with configurable test set option
N5225B-401 50 GHz 4-Port PNA with configurable test set option
N5227B-201 67 GHz 2-Port PNA with configurable test set option
N5227B-401 67 GHz 4-Port PNA with configurable test set option
1. All hardware options listed are the minimum required hardware options
2. All PNA Models listed require Option 020
3. Option 205 allows the millimeter wave system to have a start frequency of 900 Hz

Step 1: Supported PNA-X Configurations

Product/
option 1,2 Description
N5242B-201 26.5 GHz 2-Port PNA-X with configurable test set option
N5242B-401 26.5 GHz 4-Port PNA-X with configurable test set option
N5244B-201 43.5 GHz 2-Port PNA-X with configurable test set option
N5244B-401 43.5 GHz 4-Port PNA-X with configurable test set option
N5245B-201 50 GHz 2-Port PNA-X with configurable test set option
N5245B-401 50 GHz 4-Port PNA-X with configurable test set option
N5247B-201 67 GHz 2-Port PNA-X with configurable test set option
N5247B-401 67 GHz 4-Port PNA-X with configurable test set option
1. All hardware options listed are the minimum required hardware options
2. All PNA-X Models listed require Option 020
3. Option 425 allows the millimeter wave system to have a start frequency of 900 Hz
4. The N5247A Option 425 is only available with Option 029
For details or to add other PNA or PNA-X options to the above listed minimum
configuration please refer to the PNA Family Configuration Guide (literature number
5992-1465EN).
Цены и срок поставки уточняйте на сайте
Low frequency
extension
Option 205
n/a
n/a
n/a
n/a
n/a
Option 205
n/a
Low frequency
extension
n/a
Option 425
n/a
n/a
n/a
n/a
Option 425
n/a
