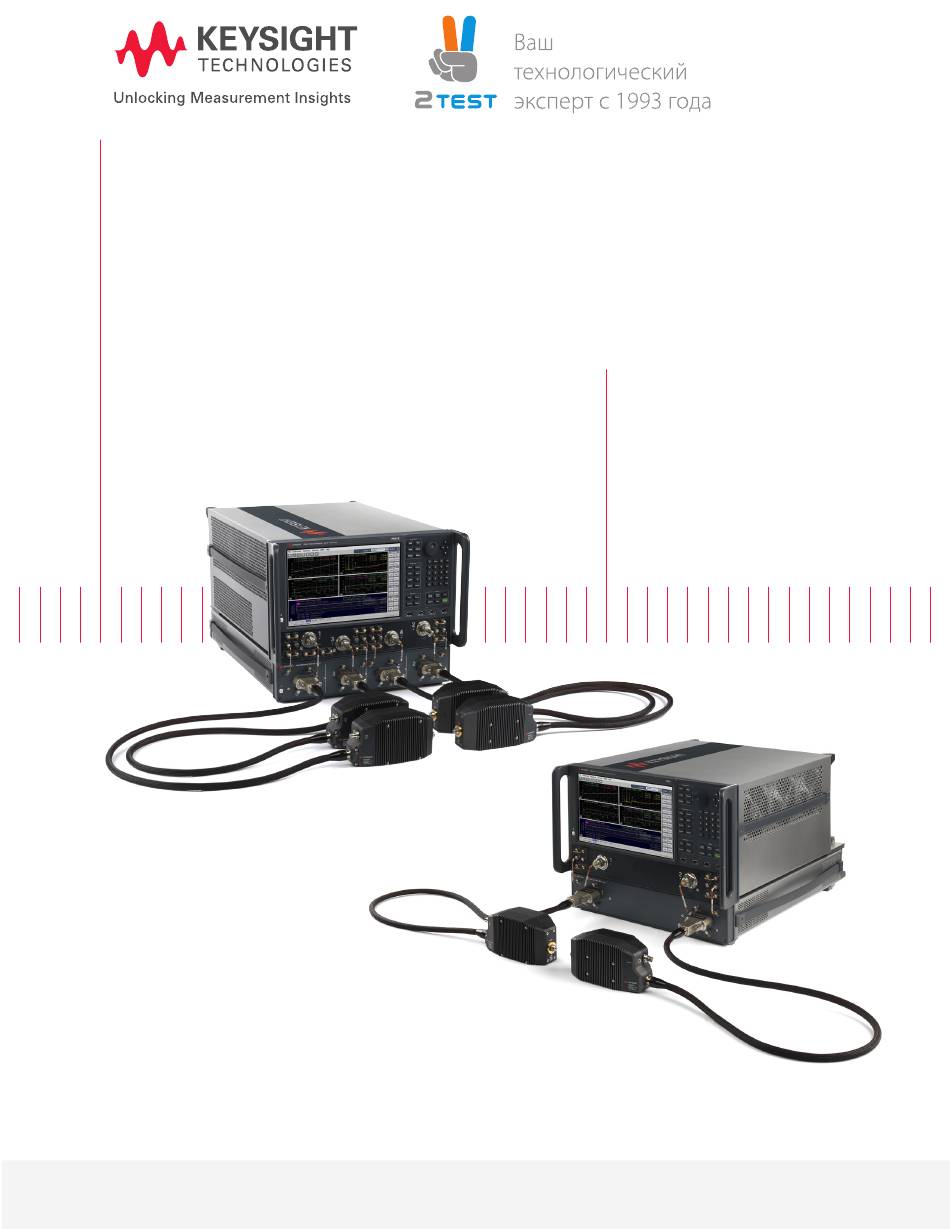

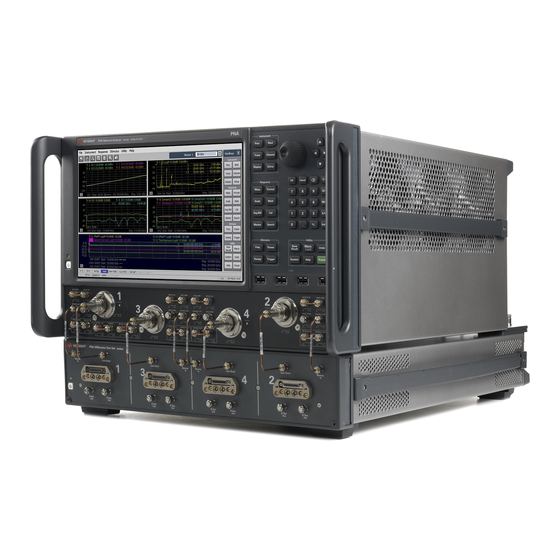

- Page 1 Keysight Technologies Millimeter Wave Network Analyzers (N5290A/N5291A) Configuration Guide www.2test.ru + 7 495 215-57-17 info@2test.ru Цены и срок поставки уточняйте на сайте , по телефону: или...
-
Page 2: Table Of Contents
02 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Table of Contents Introduction....................3 Millimeter Wave Network Analyzer Configurations ........5 Supported N5290/91A System Components ..................5 N5290A System Configurations ......................6 N5291A System Configurations ......................7 System Block diagrams ........................8 Configuring Broadband Using Separate System Components ....11... -
Page 3: Introduction
This guide describes the available configurations for Keysight’s millimeter wave vector network analyzer (VNA) solutions and should be used in conjunction with the N5290A and N5291A datasheets. Both N5290A and N5291A systems come fully configured with hardware and options to enable broadband S-parameter measurements. - Page 4 04 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Common Options The following set of service and warranty options are available on both the N5290A and N5291A. Certification options Commercial calibration certification with test data (Option UK6) Complete set of measurements which tests unit to manufacturer’s published specifications.
-
Page 5: Millimeter Wave Network Analyzer Configurations
05 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Millimeter Wave Network Analyzer Configurations Supported N5290/91A system components N5290/91A supported PNA/PNA-X hardware: PNA/PNA-X Frequency coverage Test set configuration N5222B 900 Hz to 26.5 GHz 2-Port with Option 205... -
Page 6: N5290A System Configurations
N5290A Pre-configured system options The N5290A system comes preconfigured and will operate from 900 Hz to 110 GHz and it includes five different options. Each option below comes with either a 2- or 4-port PNA or PNA-X, the N5292A millimeter wave test set controller for 2- or 4-port measurements, and the N5293AX03 110 GHz frequency extenders. -
Page 7: N5291A System Configurations
07 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide N5291A Pre-configured system options The N5291A system comes preconfigured and operates from 900 Hz to 120 GHz and it includes five different options. Each option below comes with either a 2- or 4-port PNA or PNA-X, the N5292A millimeter wave test set controller for 2- or 4-port measurements, and the N5295AX03 110 GHz frequency extenders. -
Page 8: System Block Diagrams
08 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide System block diagrams N5290/91A Option 201 System level block diagram (N5222B with Option 205) N5290/91A Option 202 System level block diagram (N5227B with Option 205) www.2test.ru + 7 495 215-57-17 info@2test.ru... - Page 9 09 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide System block diagrams (continued) N5290/91A Option 401 System level block diagram (N5242B with Option 425) N5290/91A Option 402 System level block diagram (N5242B with Option 425, 029) www.2test.ru + 7 495 215-57-17 info@2test.ru...
- Page 10 10 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide System block diagrams (continued) N5290/91A Option 403 System level block diagram (N5247B with Option 425,029) www.2test.ru + 7 495 215-57-17 info@2test.ru Цены и срок поставки уточняйте на сайте...
-
Page 11: Configuring Broadband Using Separate System Components
11 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Configuring Broadband Using Separate System Components To configure a broadband system follow these 3 simple steps: 1. Select 1 of the PNA or PNA-X models in the tables below 2. -
Page 12: Step 2: N5292A Millimeter Wave Test Controllers
12 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Step 2: N5292A Millimeter wave test controllers N5292A Millimeter wave test set controller (Option 200) N5292A Millimeter wave test set controller (Option 400) Measurement configuration N5292A option required... -
Page 13: Configuring Oml And Vdi Banded Frequency Extenders With N5290/91A
13 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Configuring OML and VDI Banded Frequency Extenders with the N5290/91A In addition to supporting the broadband frequency extenders from Keysight the N5292A test set controller may be configured to drive Keysight supported frequency extenders from OML and VDI. -
Page 14: Measurement Applications
14 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Measurement Applications On wafer applications To configure the system for use with a Cascade probe station a set of 1.0 mm cables are required as well as a probe positioner. The N5293A module positioner may be obtained directly from Cascade Microtech for the probe station type. -
Page 15: Measurement Accessories
15 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Measurement Accessories The following table lists the currently available accessories that may be used with Keysights millimeter wave network analyzer solutions. These accessories are not supplied with the N5290A or N5291A and can be purchased separately. -
Page 16: 85059B Dc To 120 Ghz 1.0 Mm Calibration Kit
16 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide 85059B DC to 120 GHz 1.0 mm Calibration kit The 85059B calibration kit includes the following items: 85059B Calibration components Male components Female components Part number Description Part number... -
Page 17: General Accessories
17 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide General Accessories In addition to the measurements accessories there are additional general accessories that are also available. These accessories help improve connectivity of the 1.0 mm test port to calibration devices and the test port cables. In addition, we offer a transportation case for the N5293A or N5295A. - Page 18 18 | Keysight | Millimeter Wave Network Analyzers (N5290A/N5291A) - Cofiguration Guide Broadband frequency extender transit case (N5290A303) The transportation case is available for storage and transportation of the N5293A or N5295A frequency extenders. The transportation case comes standard with the pre- configured N5290/91A millimeter wave network analyzer solutions.
