Remove the access cover
Remove the access cover to connect to the wiring terminals. Refer to
Figure
11.

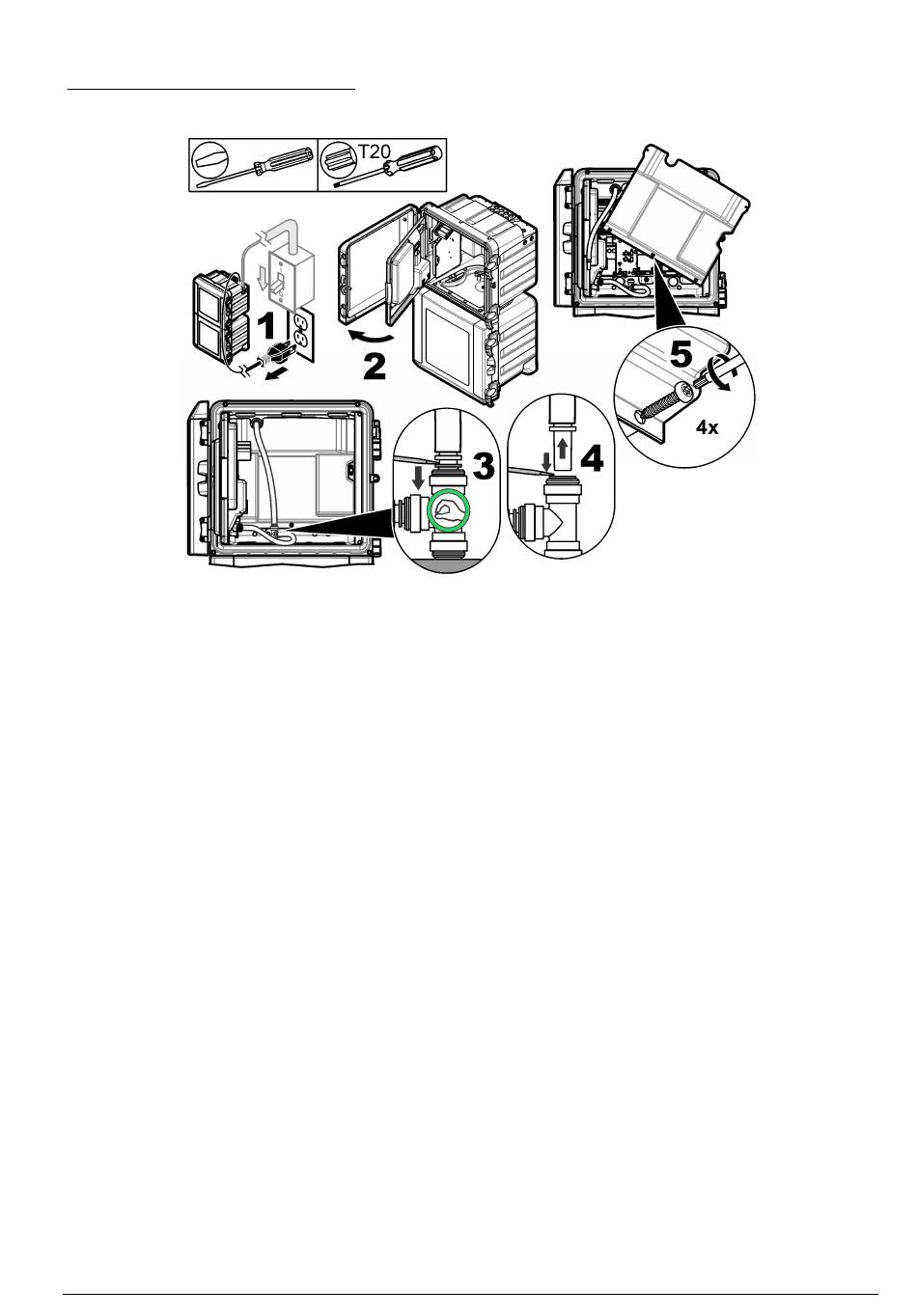

Figure 11 Access cover removal
Wiring connections overview
Figure 12
shows all of the possible wiring connections. Make sure to use the wire gauge that is
specified for the connection (refer to
Specifications
on page 21).
English 13
