28838-88

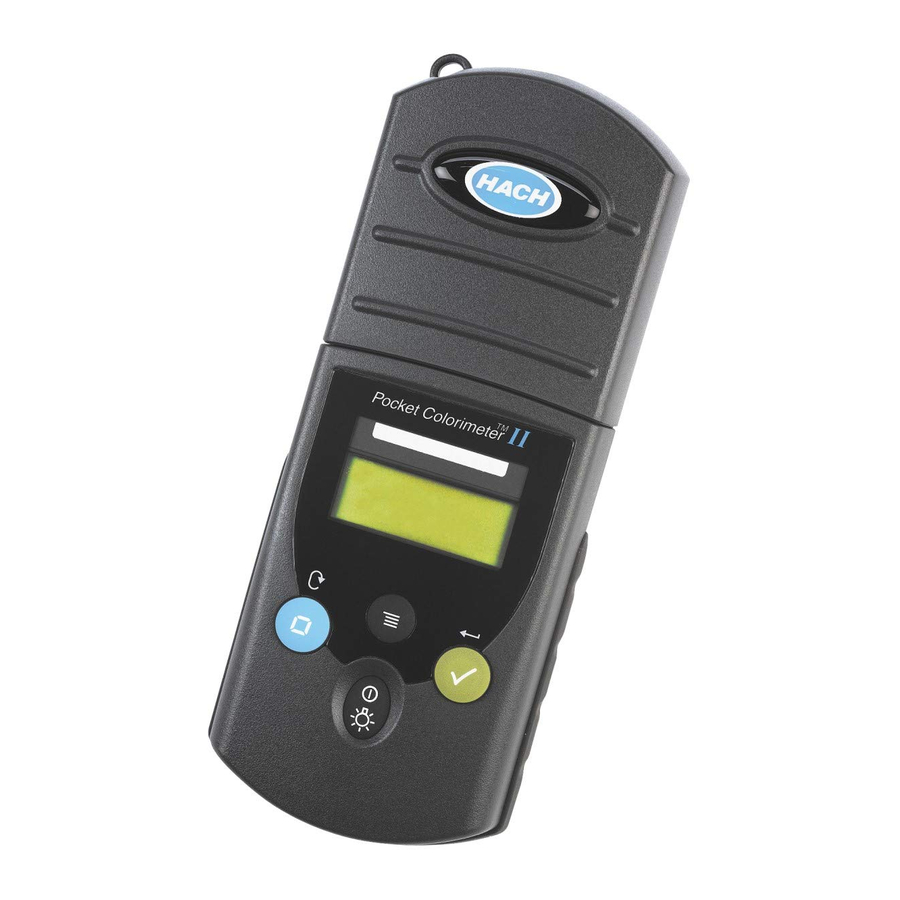

POCKET COLORIMETER™ II
ANALYSIS SYSTEMS
INSTRUCTION MANUAL
Free Ammonia
Monochloramine
© Hach Company, 2006. All rights reserved. Printed in the U.S.A.
te/dk 9/06 2ed
