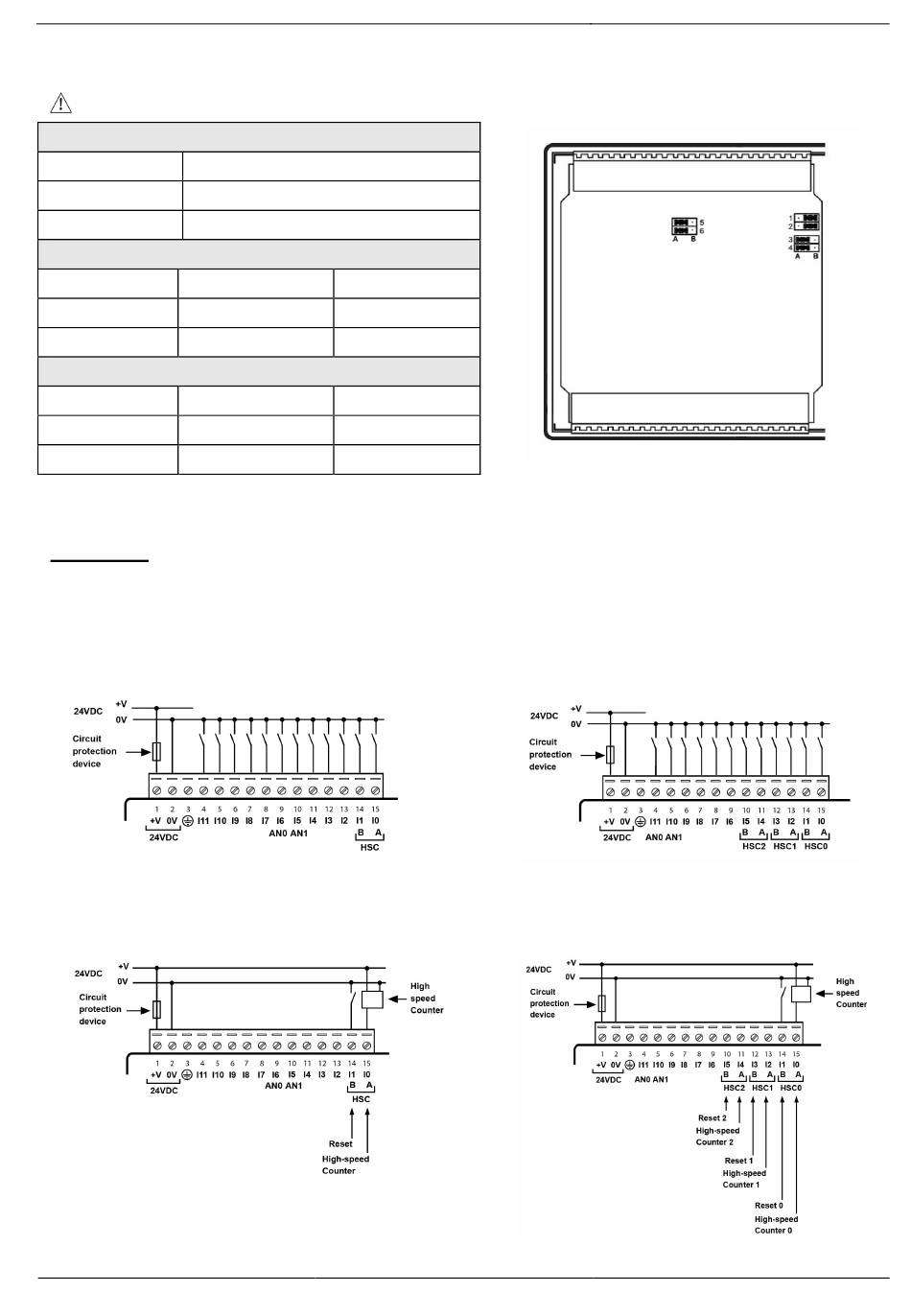

Unitronics Samba OPLC Series Installation Manual page 7

Samba™ OPLC™
SM35/43/70-J-T20
Do not move JP2.
Digital Inputs 0-11: Set Type
Set to JP1 (all Inputs)
npn (sink) A
pnp(source)* B
Inputs 10/11: Set as Digital or Analog
Set to JP5 (Input 10)
Digital* A
Analog B
Analog Inputs AN0/AN1: Set Type
Set to JP3 (AN0)
Voltage* A
Current B
*Default settings
I/O Wiring
SM35/43/70-J-R20
Unitronics
JP6 (Input 11)
A
B
JP4 (AN1)
A
B
npn Input Wiring
Input wiring, npn (sink)
HSC input wiring, npn (sink)
SM35/43/70-J-T20
7
