Layout - Atmel AT89STK-09 User Manual

Starter kit for at83c26
Table of Contents

Advertisement

Quick Start
3.2

Layout

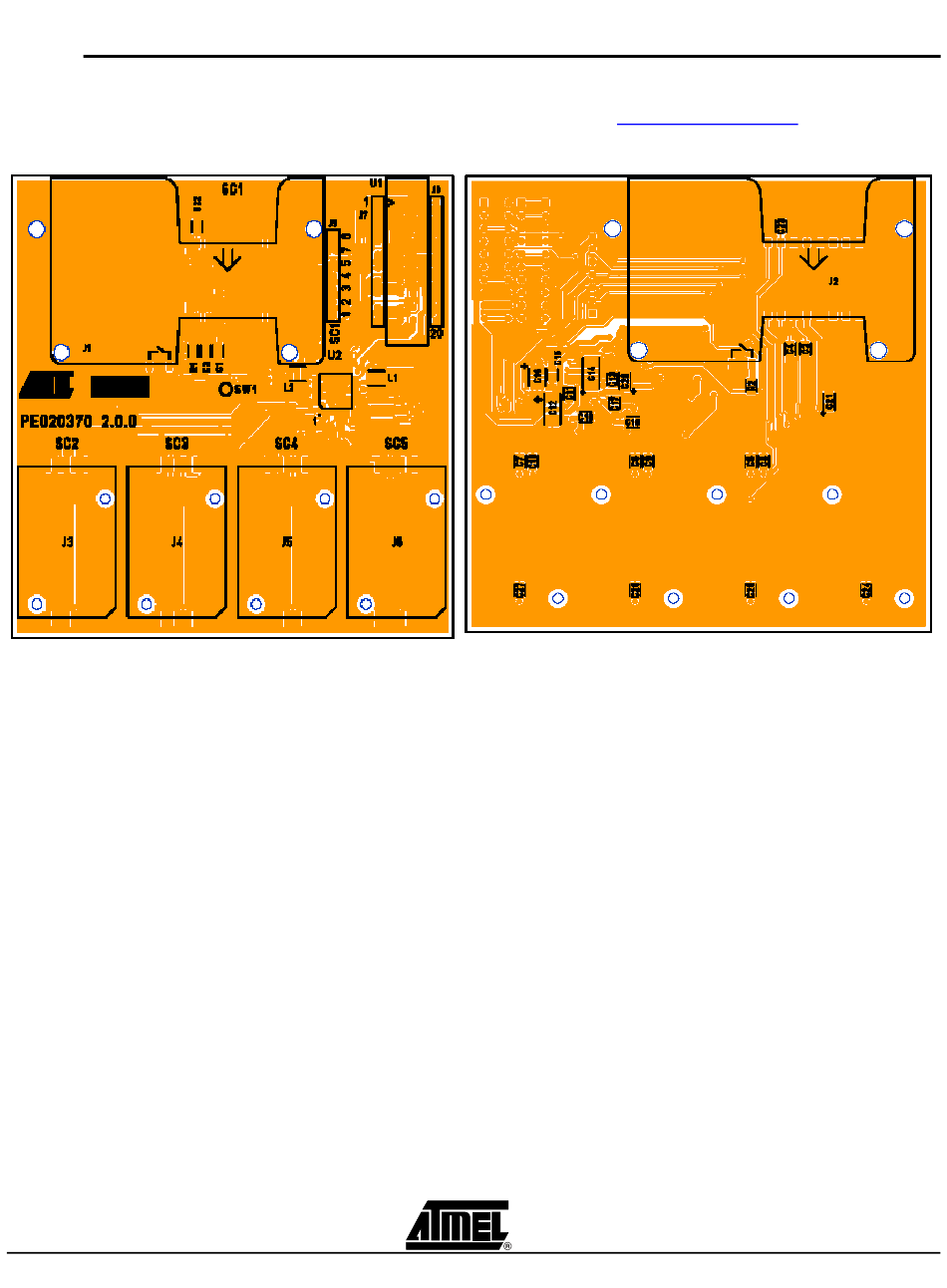

Figure 3-2. Component & Solder Sides
3-9
7521B–SCR–10/05
The board layout has been optimized in order to reduce the noise, overshoot & under-
shoot on the smart card interface signals. The board is used to pass EMV certification
level 1. Gerber file is available on demand at
Component Side
cardreader@atmel.com
Solder Side
AT89STK-09 User Guide
