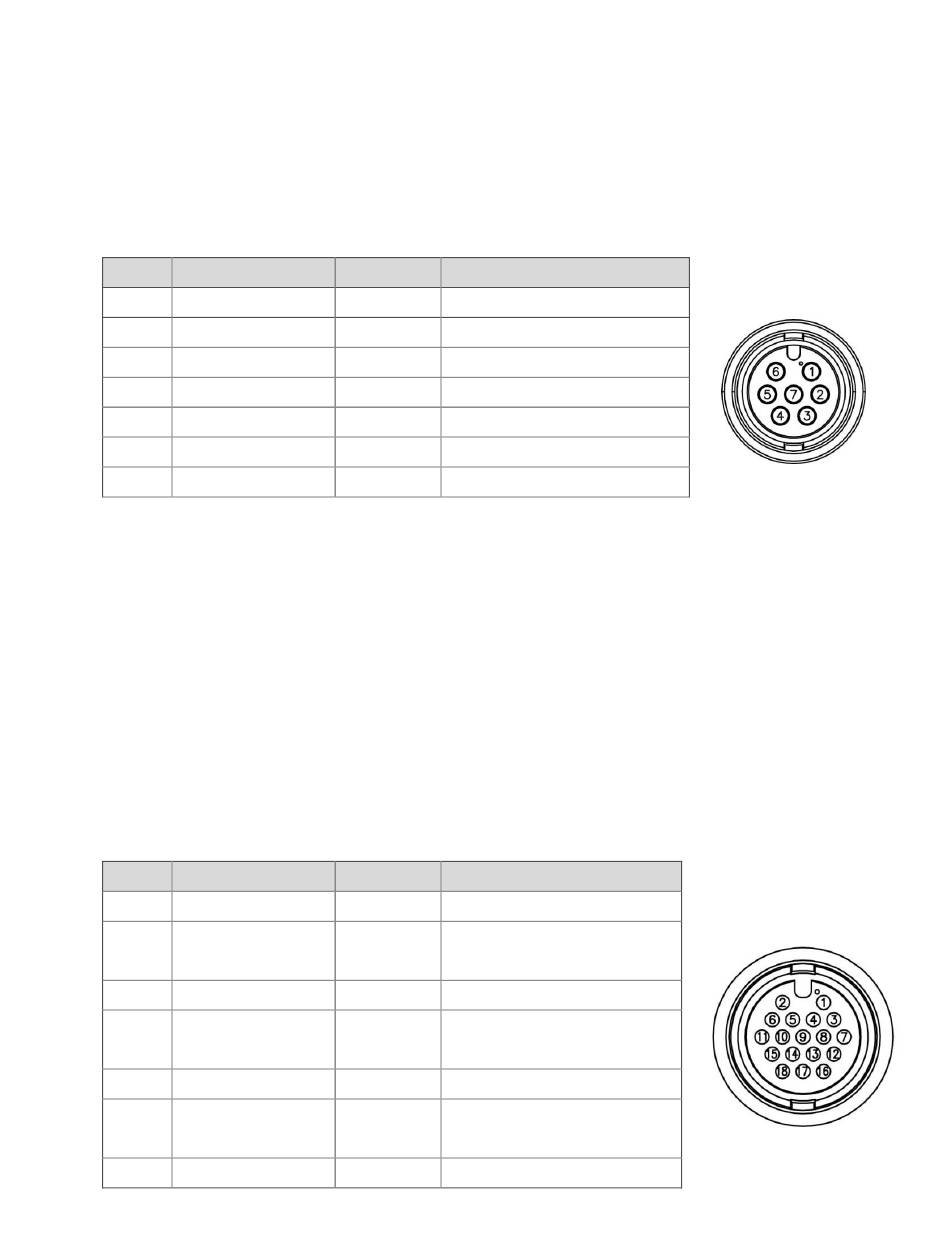

Connect the 7-Way Cable (Optional)

To connect the 7-Way cable to the Qtanium 400, unscrew the blanking cover over the 7-
Way cable connector then push the 7-Way cable onto the connector and hand-tighten the
locking screw.
Connect the 7-Way cable wires to any external signals as follows:
PIN WIRE COLOR
1 Black
2 Yellow
3 Purple
4 Blue
5 Blue/White
6 Green/White
7 Grey
4.8.5

Teletrac Navman Temperature Probes

The Qtanium 400 can support up to six Teletrac Navman digital temperature probes and can
also use some of the Multi I/O and Digital Inputs for temperature event monitoring.
4.8.6

Connect an 18-Way Cable (Optional)

1. To connect an 18-Way cable to the Qtanium 400, remove and retain the shipping
plug from the 18-Way connector. (The shipping plug prevents the Qtanium 400 from
powering ON during shipping. The plug is also used to COLD RESET the Qtanium 400
in the unlikely event of any problems; see section 5.2.)
2. Push the 18-Way cable onto the connector and hand-tighten the locking screw.
3. Connect the 18-Way cable wires to peripheral devices as follows:
PIN WIRE COLOR
1 Black
2 White
3 Green
4 Light Blue
5 Light Blue/Black
6 Orange
7 Orange/White
FUNCTION DESCRIPTION
Ground
MI/0-1 Multi I/O
DI-4 Digital Input 4
DI-3 Digital Input 3
DI-2 Digital Input 2
DI-1 Digital Input 1
DO-2 Digital Output 2
FUNCTION DESCRIPTION
Ground Ground output
~+3.8 V Power Supply/3.8V
Ref
MI-02 Multi I/O
TxD-2 RS232 Serial Port
2/transmit
RxD-2 RS232 Serial Port 2/receive
~+3.8 V Power Supply/3.8V
Ref
1WD Temperature Probe Data
18
Qtanium 400 | Installation Manual
Front View
Front View
