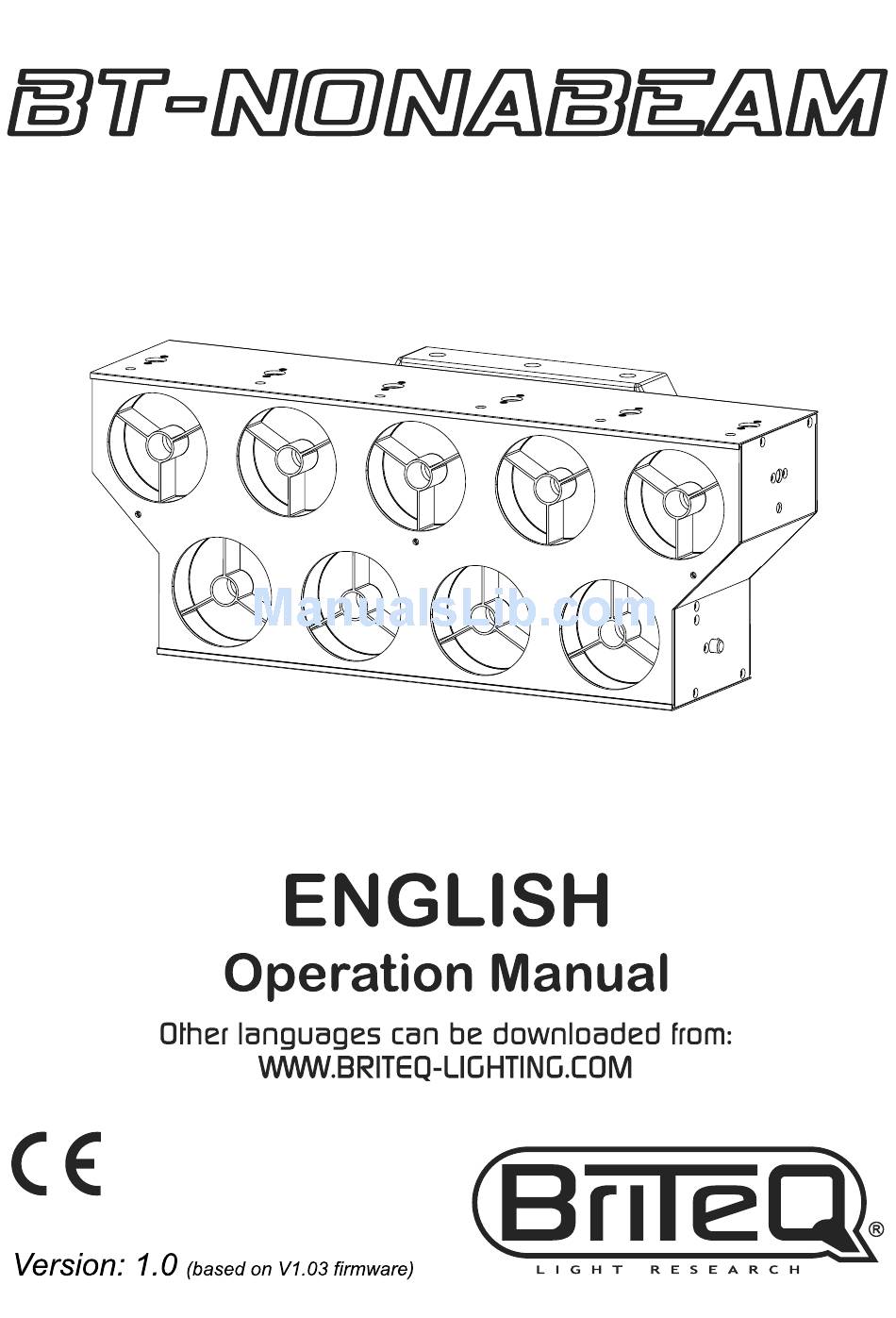

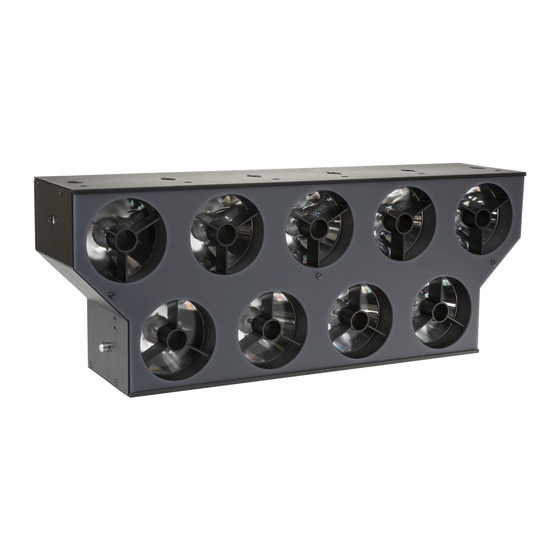

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • This impressive new projector is developed for use on big concert stages, TV-studios, …... -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/11 BT-NONABEAM ®... - Page 5 (2pcs included) can be installed at different locations. Also used to fix several projectors in a line to create a light curtain. 8. HANGING BRACKET: the included hanging bracket can be easily installed/removed using 4 quarter- turn quick locks. BRITEQ 3/11 BT-NONABEAM ®...
-
Page 6: Setup Menu
• Once the correct address shows on the display, press the ENTER button to save it. Remark: on RDM-compatible controllers this option can also be remotely set. BRITEQ 4/11 BT-NONABEAM ®... - Page 7 • Press ENTER to confirm. These factory settings will be used: DMX ADDRESS NOT changed ! CHANNEL MODE NOT changed ! PIX ORDER A (std) DIMMER CURVE Square DIMMER SPEED DMX-value 030 (0.3s) FAN MODE AUTO BRITEQ 5/11 BT-NONABEAM ®...
-
Page 8: Overhead Rigging
• Use the ▼/▲ buttons to browse the menu until the FIRMWARE is showing on the display. Note: The firmware of this unit can be upgraded using our special “Firmware Updater 2” (separately available from Briteq). More information about this can be found in the user manual of the firmware updater or our website: https://briteq-lighting.com/firmware-updater-2 OVERHEAD RIGGING •... -
Page 9: Electrical Installation
Never use Y-splitter cables, this simply won’t work! • Make sure that all units are connected to the mains. • Each unit in the chain has its proper starting address so it knows which commands from the controller it has to decode. BRITEQ 7/11 BT-NONABEAM ®... -
Page 10: Operating Instructions
• The DMX-controller sends out a “discovery command”, all RDM devices respond and send their unique device ID. • The DMX-controller asks each RDM device for some basic data so it knows which devices are connected. The projector will respond: • Device name: BT-NONABEAM • Manufacturer: ® Briteq • Category: fixture fixed •... - Page 11 BEAM EFFECTS 000-003 No function (no effects active) 004-039 METEOR 1 040-075 METEOR 2 076-111 FLOW 1 112-147 FLOW 2 148-183 CFADE 184-219 CHANGE 220-255 FADE CONTROL CHANNEL 000-007 No function DIMMER SPEED: (0,0s → 0,7s) 008-108 BRITEQ 9/11 BT-NONABEAM ®...
-
Page 12: Maintenance
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 10/11 BT-NONABEAM ®... -
Page 13: Specifications
580 x 223 x 142mm (227mm incl. hanging bracket) Weight: 15kg (16kg incl bracket) The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 11/11 BT-NONABEAM ®...
