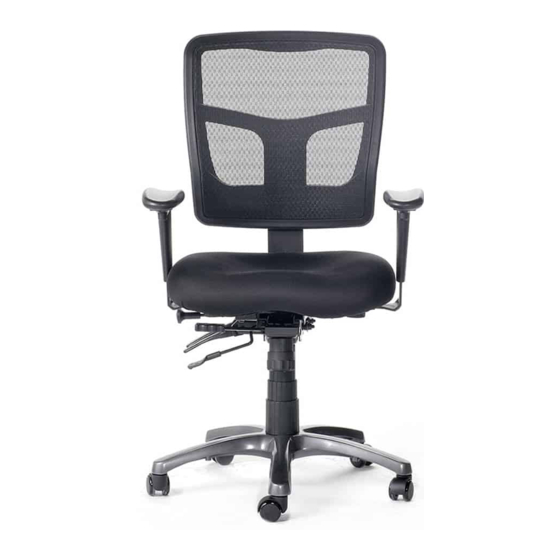

Friant MIDZONE User Manual And Assembly Instructions

User Guide and Assembly Instructions
MIDZONE
The Mechanism with Multi-Functions
Pneumatic Seat Height - Control Seat
ƒ
height
ƒ Seat Angle Control - Seat angle can be
adjusted independently
Back Angle Control & Height Adjustments
ƒ
- Adjust back and lock at desired positions
and heights
Control of Seat Forward Tilt - Lock
ƒ
and release of forward tilt for intensive
keyboard activities
Adjustable Tilt/Tension Control - Tension
ƒ
of seat & back tilt can be increased or
decreased as desired
Backrest can be pulled up and down.
Raise the backrest to the top position
when you would like to adjust it to the
intial position.
FRONT VIEW
Press this button to
move the armrest up
and down
The lock button can adjust
the armrest width.
Seat Slider can slide seat
back and forth by up to 2"
and lock in 4 poistions.
1
