Pedestal Top Cap
The following steps are instructions on how to
remove the Top Cap of a Box/File Mobile Pedestal
with lock, and replace it with a new top cap.
TOOLS

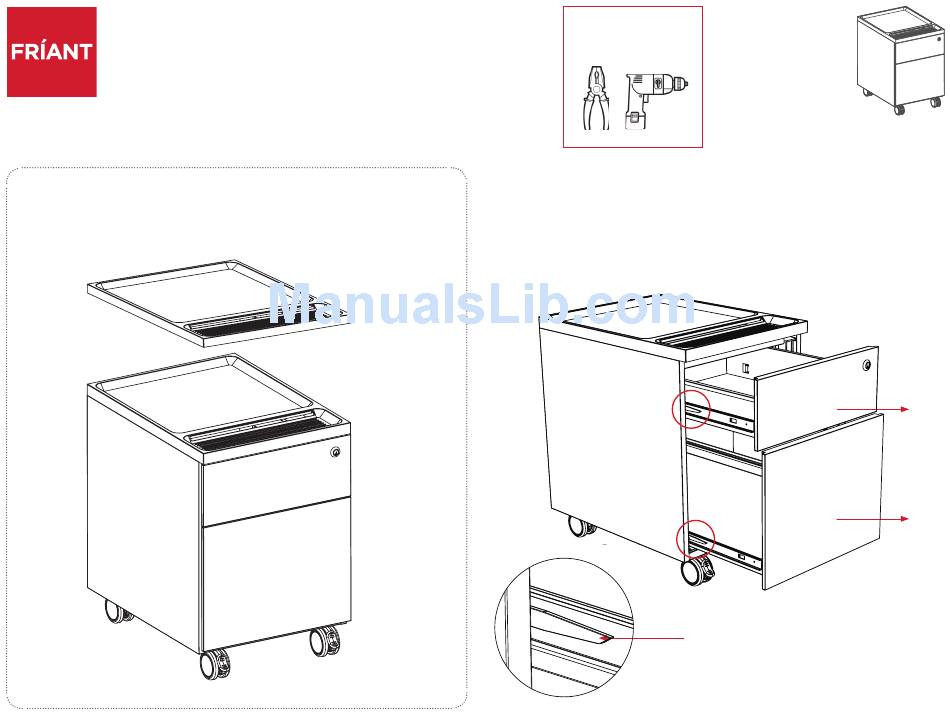

STEP 1. Remove Box and File Drawers
Release the Snap Joints by pulling up on the left and pushing down
on the right. Pull box and file drawers out.
snap joint

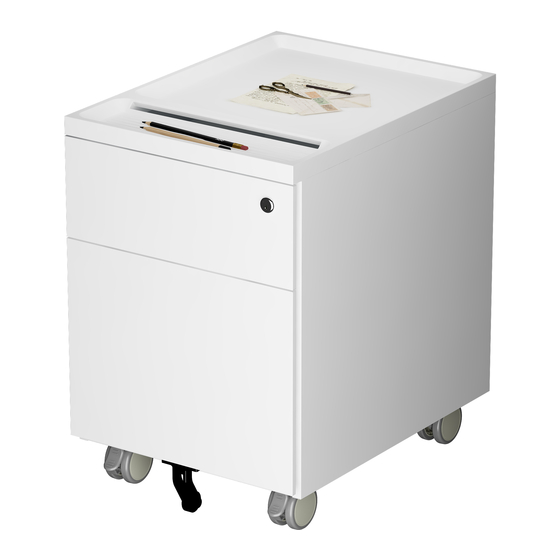

MY-HITE BOX / FILE
MOBILE PEDESTAL
WITH LOCK
Part Number: FBFPED.MOB
SNAP JOINT
