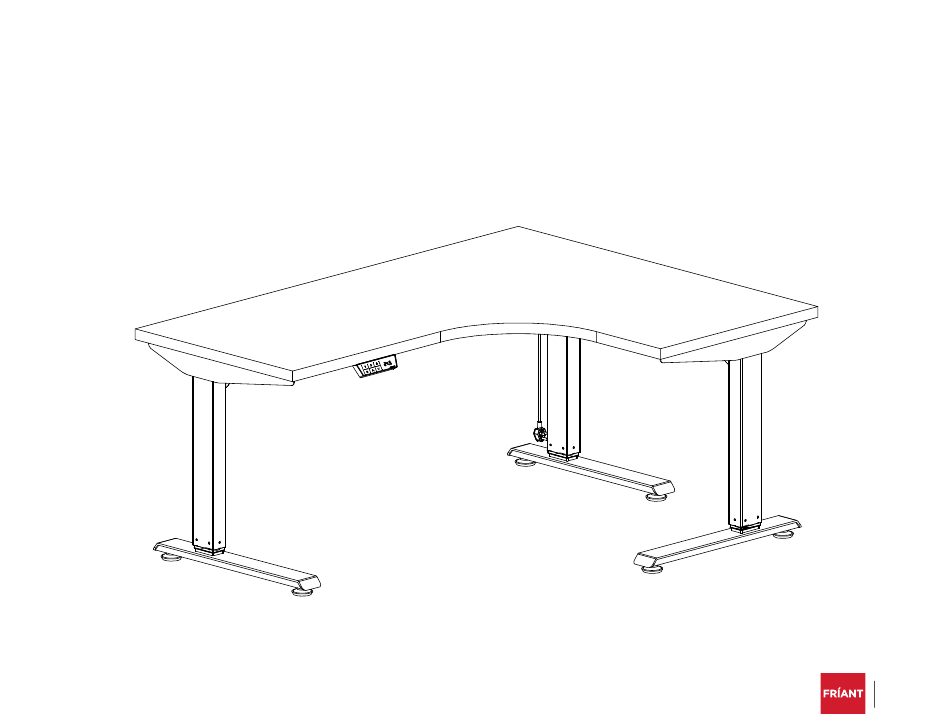

- Page 1 MY-HITE ADJUSTABLE TABLE Corner C Leg Base Model Number : FCNAHBC Please Read Instructions Before Use ASSEMBLY INSTRUCTIONS WORKSTYLES WELCOME...
-
Page 2: Tools Needed
7. If, after trouble shooting the problem persists, contact Customer Service for further assistance. Friant & Associates, LLC does not assume any responsibility for product that is altered in any way. IMPORTANT: When placing table in final location, be sure there is ample room for adjustment around ALL sides, and at the highest (50”) -
Page 3: Parts List
Parts List Installation Steps Step 1: Place worksurface finished side down on a blanket PART# IMAGE NAME PIECES Step 2: Insert A side bracket into D crossbeam assembly. Repeat on other sides. Side Bracket WORKSURFACE Column Leg SIDE BRACKET Crossbeam CROSSBEAM Center Rails Control Panel... - Page 4 Step 4: Use 4 socket button head bolts, M6*12mm to secure side bracket, column leg and IMPORTANT: Make sure column legs are sitting perfectly flat against the worksurface crossbeam together as shown in detail. Step 7: Place all 3 leg assemblies on worksurface and insert E center rails into D crossbeams as shown.
- Page 5 Step 8: Secure E center rails to D Step 8a: With option of post foot, as Step 11: Secure the F control panel in the Step 11a: With post foot option as shown crossbeams with L (8) socket button head shown below: desired location with N (2) truss head screws below:...
- Page 6 Schematic view of the My-Hite wiring: Step 14: Turn table right side up, adjust the glides as necessary, and plug the power cord into a 110v outlet. Step 13: Install the H telescopic cover plates, Step 13a: With option of post foot, as leaving exit space for the electrical power cords, shown below: and secure to worksurface with N (8) truss head...
- Page 7 Repeat this procedure for each preset button. Motor has Overuse Let motor rest for 10 minutes. overheated Perform reset operation. If problem persists contact Friant customer SET MINIMUM HEIGHT service ERR, System is Various Reasons Remove plug from electrical outlet for 15 1.
