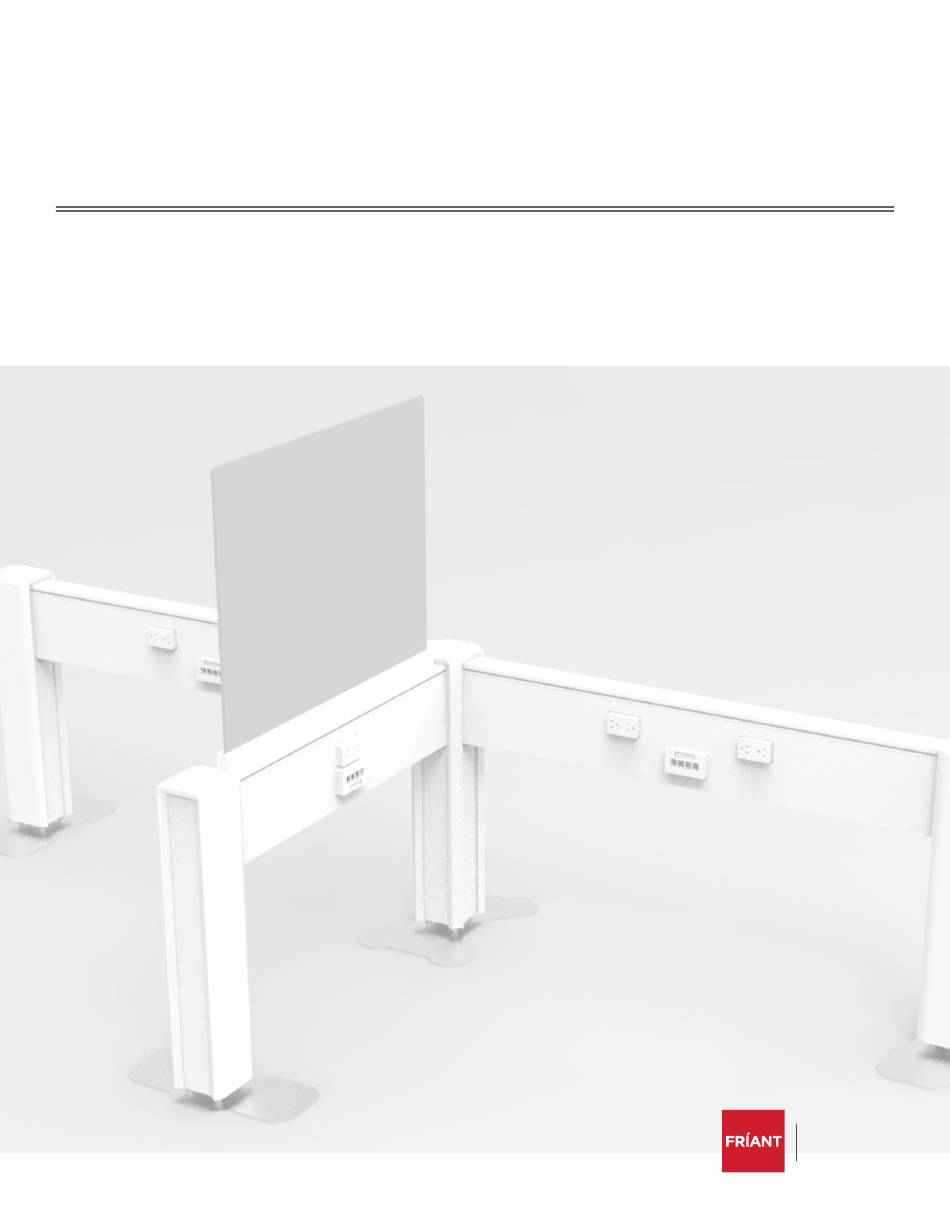

- Page 1 MY-HITE Beam Installation Manual WORKSTYLES WELCOME...
-
Page 3: Table Of Contents
MY-HITE BEAM INSTALLATION MANUAL Post & Foot Installation ������������������������������������������������������������������������������������������������ 7 Beam Installation ������������������������������������������������������������������������������������������������������������� 9 Installation of Top Cap with Screen support ��������������������������������������������������� 10 Installation of Top Cap w/o Screen support ����������������������������������������������������� 12 Festoon Installation ������������������������������������������������������������������������������������������������������� 13 Base Feed Installation �������������������������������������������������������������������������������������������������� 14 4 Circuit Power Entry Beam Power Pole Installation ����������������������������������������������������������������������������������... - Page 4 This installation manual provides necessary information for the safe can result in product damage, personal injury or both. installation of Friant’s Beam product. SAFETY & SUPPORT SAFETY NOTES SUPPORT CENTER Should you have any questions or require...
- Page 5 INSTALLATION TOOLS INSTALLATION TOOLS The following tools are necessary for field assembly and installation of Friant’s My-Hite Beam product: #3 Phillips head screwdriver ƒ 5mm Allen Key Bit ƒ 1/2” Open End Wrench ƒ 1/2” Socket Wrench ƒ 1/4” Hand Driver for Socket ƒ...
-
Page 7: Post & Foot Installation
POST & FOOT INSTALLATION POST & FOOT INSTALLATION Tools needed: (4)M8x80 hex bolt, (4) 16x45 brown springs, (4) nuts, straight wrench. 1. Attach (1) column to (1) foot using (4) M8x80 hex bolt, (4) 16x45 brown springs, and (4) nuts� IMAGE A &... - Page 8 POST & FOOT INSTALLATION POST & FOOT INSTALLATION LAYOUTS 1. Layout of 180° post� IMAGE A 2. Layout of 2-way post 90°� IMAGE B 3. Layout of 3-way post 90°� IMAGE C 4. Layout of 4 way post 90°� IMAGE D 180°...
-
Page 9: Beam Installation
BEAM INSTALLATION BEAM INSTALLATION 1. Slide beam into position at top and inside of columns as Beam shown� IMAGE A 2. Using (4) M6x12 hex flat head screws, attach the beam to the column� Secure beam shown� IMAGE B 3. Attach duplex units to the beam� IMAGE C 4. -
Page 10: Installation Of Top Cap With Screen Support
GLASS OR FABRIC PANEL INSTALLATION ON TOP CAP INSTALLATION OF TOP CAP WITH SCREEN SUPPORT 1. Position two brackets at the bottom of the glass or fabric panel as shown� IMAGE A 2. Secure the brackets to the glass panel using (2) M6x16 screws per bracket (4 total)�... - Page 11 GLASS OR FABRIC PANEL INSTALLATION ON TOP CAP INSTALLATION OF TOP CAP WITH SCREEN SUPPORT CONT 7. Secure the top cap to the beam with (8) M6x28 socket Underside Top Cap cap screws (4 on each side of the beam), using 5mm of frame Allenhead wrench�...
-
Page 12: Installation Of Top Cap W/O Screen Support
TOP CAP INSTALLATION INSTALLATION OF TOP CAP WITHOUT SCREEN SUPPORT Top cap without screen support 1. Place top cap on top of the beam, between the two posts� IMAGE A 2. Secure top cap to the beam with (8) M6x28 socket cap screws (4 on each side of the beam), using 5mm Allenhead wrench�... -
Page 13: Festoon Installation
FESTOON INSTALLATION FESTOON INSTALLATION NOTE: Festoons carry power from (1) one duplex to another in the beam. 1. Layout of 180° degree� IMAGE A 2. Layout of 2-way, 90° degree L shape� IMAGE B 3. Layout of 3-way, 90° degree T shape� IMAGE C 4. -
Page 14: Base Feed Installation
BASE FEED INSTALLATION BASE FEED INSTALLATION 1. Insert base feed through the Beam and connect to the power retro� IMAGE A Power retro Base feed... -
Page 15: Circuit Power Entry
ELECTRICAL DISTRIBUTION 4-Circuit Power Entry 4 CIRCUIT POWER ENTRY My-Hite Power Beam Installation Manual 4901 East 12th St / Oakland / California 94601 / T: 510.535.5113 / F: 510.535.5237 / friant.com... -
Page 16: Beam Power Pole Installation
BEAM POWER POLE INSTALLATION BEAM POWER POLE INSTALLATION Small Beam Attachment Plate 1. Insert one small beam attachment plate to the post� There are two bulges and two threaded mounting holes on the small beam to secure the U piece� IMAGE A 2. - Page 17 BEAM POWER POLE INSTALLATION BEAM POWER POLE INSTALLATION CONT 4. There are three mounting holes on the U piece� The two holes above are through holes corresponding the two mounting holes on the small beam� The one hole below is threaded hole to secure the U piece� Use three screws to secure the U piece to the small beam through the long panel�...
- Page 18 BEAM POWER POLE INSTALLATION BEAM POWER POLE INSTALLATION CONT 6. Secure the 2nd U piece� IMAGE F 7. Attach power pole top trim� IMAGE G U piece Power pole top trim...
-
Page 19: Short Cover Installation
SHORT COVER INSTALLATION SHORT COVER INSTALLATION 180° Post NOTE: Short covers have two hooks on the backside. Place the short covers into position and slide down slightly to lock them into place. Short covers are used on columns that are in the middle of installations that do NOT have a beam in place. -
Page 20: Tall Cover Installation
TALL COVER INSTALLATION TALL COVER INSTALLATION 180° End Post NOTE: Tall covers have three hooks on the (1) Tall cover backside. Place the tall covers into position and for base feed slide down slightly to lock them into place. Tall covers are used on columns that are in the middle of installations that do NOT have a beam in place. -
Page 21: Beam Cover & Data Panel Installation
BEAM COVER & DATA PANEL INSTALLATION BEAM COVER & DATA PORT PLATE INSTALLATION 1. Place beam cover in position and push gently to snap into place� IMAGE A 2. Snap data port plate into place� IMAGE B NOTE: The beam cover must be installed before installing the arc side panel and the hanging bars. -
Page 22: Arc Side Panel Installation
ARC SIDE PANEL INSTALLATION ARC SIDE PANEL INSTALLATION 1. Arc side panels installation at an end post with base feed� IMAGE A 2. Arc side panels installation on a 180° post� IMAGE B Hook NOTE: They have two hooks on the back: Place bottom hook into slot, slide down &... -
Page 23: Corner Trim & Interior Column Top Cap Installation
CORNER TRIM & INTERIOR COLUMN TOP CAP INSTALLATION CORNER TRIM & INTERIOR COLUMN TOP CAP INSTALLATION 1. Clip corner trim to the sides of the long covers in the middle columns on installations as shown� IMAGE A WARNING : Do NOT use corner trim on columns on the ends of beam installations. - Page 24 CORNER TRIM & INTERIOR COLUMN TOP CAP INSTALLATION CORNER TRIM & INTERIOR COLUMN TOP CAP INSTALLATION CONT 3. Interior column top cap on a 180° post� IMAGE C 4. Interior column top cap on a 4-way post 90°� IMAGE D 180°...
- Page 25 FINISHED INSTALLATION FINISHED INSTALLATION 1. Layout of a finished installation� IMAGE A My-Hite Power Beam Installation Manual 11.09.18...
