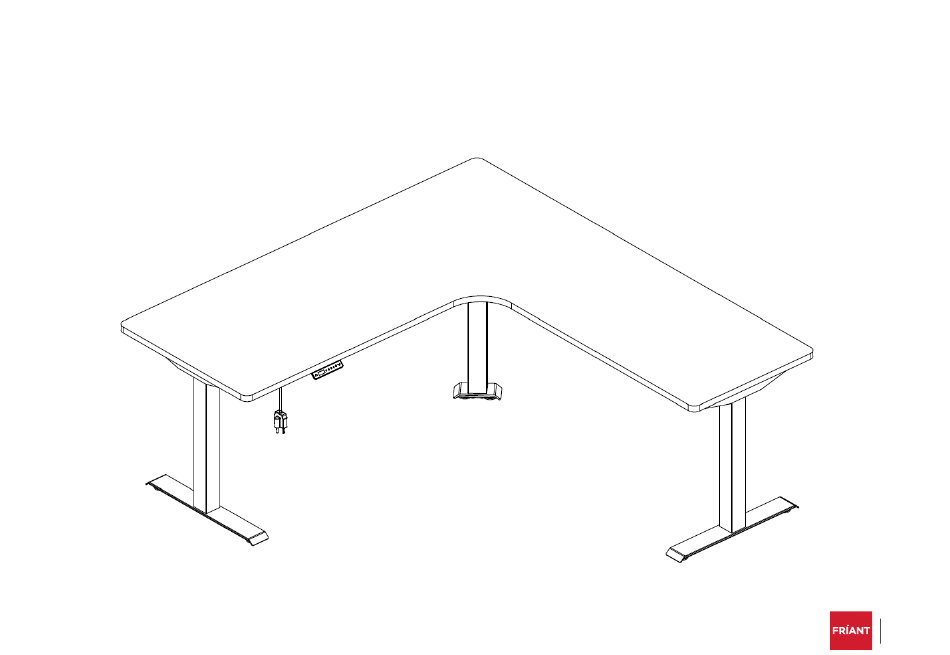

- Page 1 MY-HITE ADJUSTABLE TABLE CORNER 2 STAGE T LEG BASE Model Number : FCNAHBT-24-2 Please Read Instructions Before Use WORKSTYLES ASSEMBLY INSTRUCTIONS WELCOME...
-
Page 2: User Notes
7. If, after trouble shooting the problem persists, contact Customer Service for further damage, or personal injury. assistance. Friant & Associates, LLC does not assume any responsibility for product that is altered in any IMPORTANT: When placing table in final location, be sure there is ample room for adjustment way. -
Page 3: Parts List
Parts List Installation Steps PART# IMAGE NAME PIECES Step 1 Column Leg Place worksurface finished side down on a blanket. Step 2 Crossbeam Insert A column leg into B crossbeam assembly and slide back to lock into place. Repeat on other side. - Page 4 Step 4 Step 5 Use (8) metal screws N, M6*15mm to secure E mounting plate, F connecting rod inner and G Place all leg assemblies on worksurface and insert H connecting beams into F connecting connecting rod outer together as shown in detail. Then put A leg and E plate together like rod inner, G connecting rod outer and B crossbeam, then use (16) flat screws O, M10*25mm step 2 and step 3.
- Page 5 Step 7 Step 10 Attach J feet and K feet to A column leg with Q (12) socket button head bolts, M6*35. Tighten Connect M display and A column leg to L control box with V control wires as shown. Use T bolts securely.
- Page 6 Schematic view of My-Hite wiring Step 10 Turn table right side up, adjust the glides as necessary, and plug the power cord into a 110v outlet. Power Cord Control Wires Control Wires Display Make sure the length of the plug-in cord is appropriate to both reach the outlet, AND for the distance the table will travel up and down.
- Page 7 First Time Use: 4) Set Maximum Height ˄ Step 11: 1. Press and hold then release. Adjust table to desired maximum height. 2. Press and hold S, then press and hold 3 for about 3 seconds. Release. Letter “ ¯L¯” flashes on the screen.This means the position is locked at the maximum height.
-
Page 8: General Tips
Check the cable connections between leg and computer. Reset Connection Issue The leg is disconnected from the control box. display. If problem persists contact Friant Customer Service. Let motor rest for 10 min. Then try again. Continous Operation Continous operation for 5 min.
