User Guide and Assembly Instructions

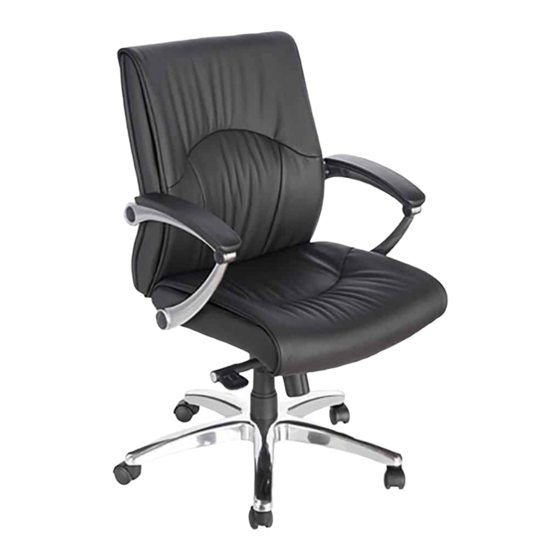

MADISON
FRONT VIEW
Vertical
adjustment is
controlled with
the handhold.
ADJUSTMENT KNOBS
Adjustable
armrests allow
each user to
customize for
maximum comfort.
The backrest tilt is
adjusted and locked
with the handhold.
Adjustable tension
knob for back tilt to
maximize comfort for
varying sized users.
1
Advertisement
Table of Contents
Related Manuals for Friant MADISON
Summary of Contents for Friant MADISON
- Page 1 User Guide and Assembly Instructions MADISON FRONT VIEW ADJUSTMENT KNOBS Adjustable tension knob for back tilt to maximize comfort for varying sized users. Adjustable armrests allow each user to customize for maximum comfort. Vertical adjustment is The backrest tilt is...
- Page 2 Parts and Hardware Attention: Carefully check all parts according to the instructions before assembling. Please assemble carefully to avoid scratching surfaces, especially powder coated surfaces. Headrest Parts/ Item Parts Qty. Hardware Qty. Hardware Backrest Screw 5/16” x 1-1/4” Armrest L/R 1 ea Screw 5/16”...
- Page 3 Chair Assembly Instructions 1. Attach the mechanism [C] to the seat cushion [D] to fasten with screws [A & B]. Screw [A] is for the front of the seat cushion and screw [B] is for the back of the seat cushion. 2.
- Page 4 Armrest Assembly Instructions 1. Insert the armrest [B] into the circular of Z1 and Z2. Insert the inverse cup [K] into the circular hole of Z1 and Z2. 2. Insert the square washer [H] into the square bulge of Z2, and fasten the screw [E] into the column. Note: Only tighten the screws halfway.
- Page 5 Product Dimensions WORKSTYLES WELCOME 1980 West Avenue 140th, San Leandro CA 94577/ TEL: 877.828.410 / http://www.friant.com Aug 2019...
