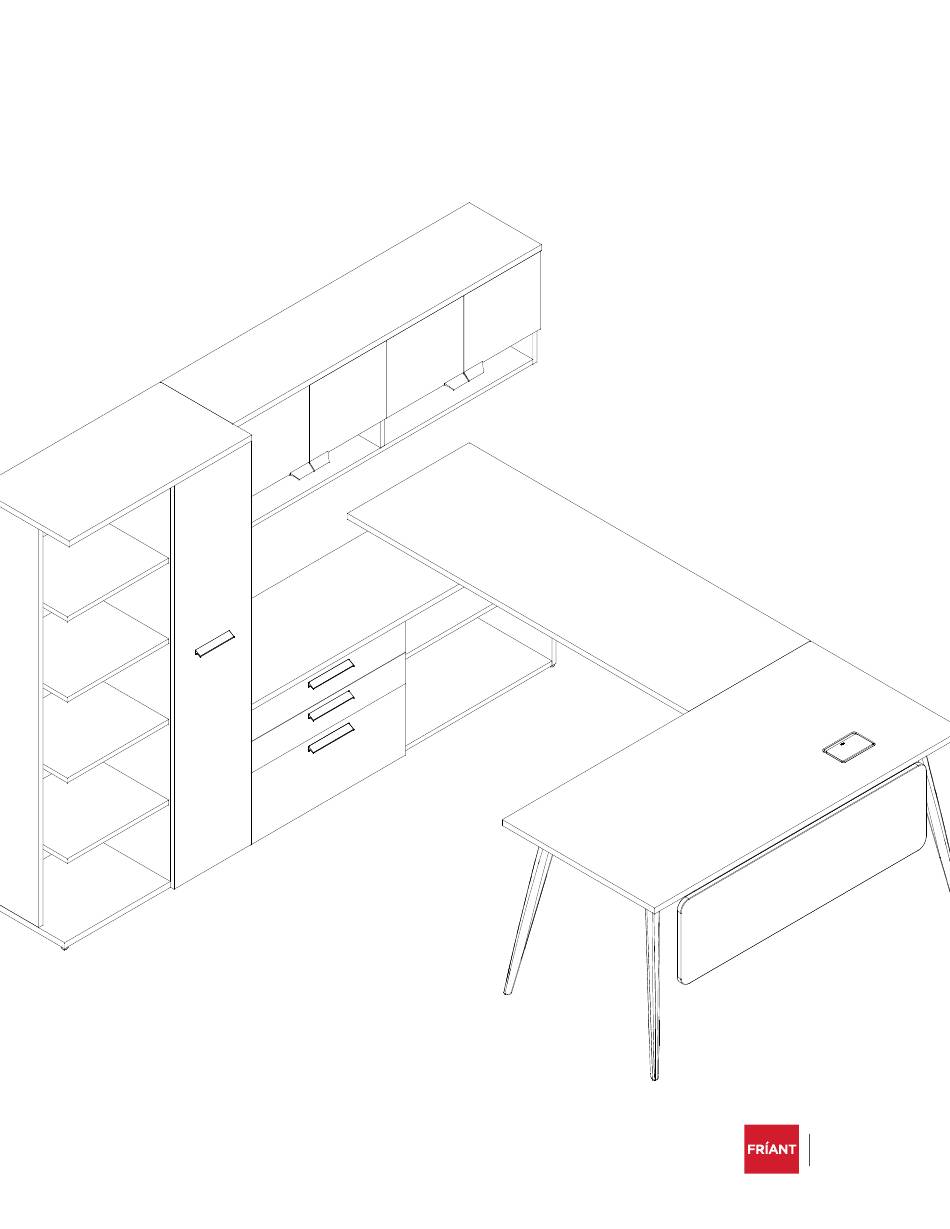

- Page 1 DASH Installation Manual WORKSTYLES WELCOME...
-
Page 3: Table Of Contents
DASH INSTALLATION MANUAL General Information ��������������������������������������������������������������������������������������������������� 4 Safety & Support ��������������������������������������������������������������������������������������������������������� 5 Installation Tools ���������������������������������������������������������������������������������������������������������� 6 Staging & Installation ������������������������������������������������������������������������������������������������ 7 Tabletops Freestanding Tabletops ������������������������������������������������������������������������������������������ 8 Credenza Support Leg Attachment Options ����������������������������������������������� 9 Resting & Wedge Tabletops ����������������������������������������������������������������������������������10 Bridge Tabletop: A & B Style �������������������������������������������������������������������������������� 11 Return Tabletop ���������������������������������������������������������������������������������������������������������... -
Page 4: General Information
Friant’s Dash product. the instructions in this manual can result in product damage, The Dash product line is a desking system composed of tabletops, personal injury or both. storage and accessories designed for systems integration� It consists of products that are factory assembled and require installation only;... -
Page 5: Safety & Support
Many products weigh more than 35 pounds� Use ƒ two or more people to safely lift, carry and install the products� When using tools, extension cords or ladders, use ƒ them in accordance to OSHA guidelines� Work safe, work smart� ƒ Dash Installation Manual... -
Page 6: Installation Tools
INSTALLATION TOOLS INSTALLATION TOOLS The following tools are necessary for field assembly The following tools will help speed up installations, and installation of Friant’s Dash product: but are not necessary: Allen wrench 1/4” Drill (12v or more) ƒ ƒ #2 Phillips head screwdriver Set of drill bits ƒ... -
Page 7: Staging & Installation
4� Keep and maintain a clutter-free staging area — it will help speed up your assembly� 5� Protect all building walls with furniture pads or cardboard where product is leaning against them or in high traffic areas� Dash Installation Manual... -
Page 8: Tabletops
TABLETOPS freestanding support leg FREESTANDING TABLETOPS Freestanding tops have four legs and two support beams that run along the length of the tabletop. Each support support beam beam connects two legs together, left and right. 1. Begin by preparing each leg for installation� Slide the beam bracket inside the groove on the freestanding leg�... -
Page 9: Credenza Support Leg Attachment Options
TABLETOPS CREDENZA SUPPORT LEG ATTACHMENT OPTIONS Credenza support legs offer 3 different types of attachment options depending on usage. (A) Bolt and Nut permanent (drills hole in credenza) (B) Adhesive/Rubber move-able (C) Double-sided Adhesive semi-permanent Dash Installation Manual... -
Page 10: Resting & Wedge Tabletops
TABLETOPS RESTING & WEDGE TABLETOPS Resting and Wedge tabletops have a credenza support leg on one side and a freestanding support leg on the other. 1. Begin by preparing each leg for installation� Slide the beam bracket inside the groove on the leg� Repeat this process for two freestanding legs and two credenza support legs�... -
Page 11: Bridge Tabletop: A & B Style
IMAGE C & D NOTE: Extended support beams for bridge tabletops are sized to run along the length of the tabletop. 6. Continue installation with either A Style or B Style instructions on the next page� Dash Installation Manual... - Page 12 TABLETOPS A STYLE BRIDGE TABLETOPS bridge tabletop Connect to a Freestanding Tabletop TIP: Determine the distance required between the freestanding top and credenza to allow proper space for installation. freestanding 1. Begin by resting the credenza support legs on the tabletop credenza�...
- Page 13 Secure at the location of the predrilled hole� IMAGE C & D NOTE: Extended support beams for bridge tabletops Overview of parts for return tabletop support� are sized to run along the length of the tabletop. Dash Installation Manual...
-
Page 14: Return Tabletop
TABLETOPS RETURN TABLETOPS, continued freestanding tabletop 6. Connect the extended support beam on the return tabletop to the support beam on the freestanding tabletop� Secure together at the location of the pre-drilled return hole� IMAGE E tabletop 7. Align the outside edge of the tabletops so they are flush� 8. -
Page 15: Credenzas
Be sure the handles are oriented correctly as shown in the images to the left� Correct Incorrect Shelves 1. Install shelf pins at the desired height� IMAGE A & B 2. Place shelves on top of the pins� IMAGE C & D Dash Installation Manual... - Page 16 CREDENZAS CREDENZAS: HANDLES, SHELVES, DOORS Doors Hinges have a 3-point adjustment for alignment: Up & Down • In and Out • Up and Down • Side to Side In & Out See image to the left for adjustment screws and example of correct alignment�...
-
Page 17: Credenza Electrical
Connect credenzas using daisy chain power connector, specific to the width of the credenza� 2. Install duplexes� 3. Once all credenzas are connected, install the infeed to the first credenza� NOTE: Duplexes must be ordered separately for 4-circuit powered credenzas. Dash Installation Manual... -
Page 18: Pedestals
PEDESTALS PEDESTALS: HANDLES & CASTERS Handles Be sure the handles are oriented correctly as shown in the images to the left� Correct Incorrect Casters Attach each caster to the bottom of the pedestal at the pre- drilled hole locations� Each caster requires 4 flathead screws provided�... -
Page 19: Shared Overhead: Credenza Mounted
IMAGE C 4. Secure from the inside of the credenza at the location of the pre-drilled holes with screws provided� IMAGE D Continued on the next page » Overview of installed shared overhead Dash Installation Manual... - Page 20 OVERHEAD STORAGE SHARED OVERHEAD: CREDENZA MOUNTED, cont’d 5. Lift and place the shared overhead on top of the shared overhead support column� Measure all sides to ensure the overhead is centered� IMAGE E 6. Secure the shared overhead to the shared overhead support columns with screws provided�...
-
Page 21: Overhead: Wall Mounted
Secure the overhead to the wall mounted cleat using 1�5” long flat head wood screws provided� IMAGE D 7. Reinstall doors to the overhead� IMAGE E 8. Install handles onto doors� IMAGE E Dash Installation Manual... - Page 22 OVERHEAD STORAGE WARNING : Failure to follow the instructions in this manual can result in product damage, personal injury or both. Quantity of screws required for each width cabinet: FD-OS-XX36 = QTY 3 FD-OS-XX42 = QTY 3 FD-OS-XX48 = QTY 3 FD-OS-XX54 = QTY 4 FD-OS-XX60 = QTY 4 FD-OS-XX66 = QTY 4...
-
Page 23: All Overheads: Handles
1. Place the handle over the predrilled holes at the bottom of the door� IMAGE A 2. Insert the screws provided into the predrilled holes and tighten� IMAGE B & C Right-handed door and handle shown� Dash Installation Manual... -
Page 24: Towers
TOWERS TOWERS: HANDLES Be sure the handles are oriented correctly as shown in the images to the left. 1. Place the handle over the predrilled holes at the bottom of the door� Correct Incorrect IMAGE A 2. Insert the screws provided into the predrilled holes and tighten�... - Page 25 TOWERS TOWERS: SHELVES 1. Install shelf pins at the desired height� IMAGE A & B 2. Place shelves on top of the pins� IMAGE C & D Dash Installation Manual...
-
Page 26: Privacy Screen
FABRIC SCREEN PRIVACY SCREEN 1. Prepare for installation by ensuring the privacy screen is oriented correctly for top and bottom� The pre-drilled holes should be closer to the top of the screen� IMAGE A 2. Attach the left and right brackets accordingly to the fabric screen at the pre-drilled hole locations on the privacy screen using the 1”... -
Page 27: Panels
IMAGE C Angled leg 4. Install worksurface onto the legs� Secure with support beam the (8) M6*1�0x25mm hex button socket cap screws Connect beam provided� to leg with IMAGE D (2) screws Inset leg, 45 Panel Worksurface Dash Installation Manual... - Page 28 PANELS INSET LEG INSTALLATION INSTALLATION OF INSET LEGS TO AN INTERRA PANEL Connect bracket to beam with (2) screws Installation of Inset legs to an Interra (65) panel with worksurface. Angled leg support beam 1. Attach angled leg support bracket onto the angled leg support beam with (2) M6*1�0x20mm hex button socket cap screws provided�...
- Page 29 IMAGE C Angled leg 4. Install worksurface onto the legs� Secure with support beam the (8) M6*1�0x25mm hex button socket cap screws Connect beam provided� to leg with IMAGE D (2) screws Taper leg, 45 Panel Worksurface Dash Installation Manual...
- Page 30 PANELS TAPER LEG INSTALLATION INSTALLATION OF TAPER LEGS TO AN INTERRA PANEL Connect bracket to beam with (2) screws Installation of Taper legs to an Interra (65) panel with worksurface. Angled leg support beam 1. Attach angled leg support bracket onto the angled leg support beam with (2) M6*1�0x20mm hex button socket cap screws provided�...
- Page 31 WORKSTYLES WELCOME 1980 West Avenue, 140th, San Leandro CA 94577 TEL: 510.535.51 13 FAX: 510.535.5237 http://www.friant.com 08.17.18...
