Friant FCNAHB Assembly Instructions Manual

My-hite corner adjustable table
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

FRIANT & ASSOC.
4901 E.12 STREET OAKLAND, CA 94601
T:510.535.5113 · FAX:510.535.5237
www.Friant.com/systems/my-hite

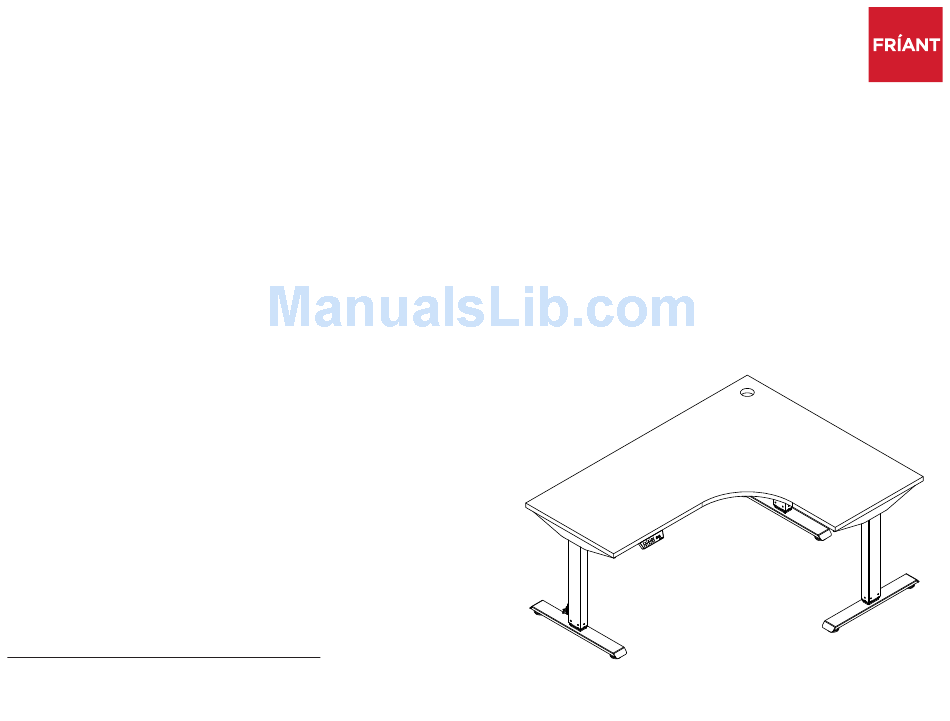

MY-HITE CORNER
ADJUSTABLE
TABLE
Model Number : FCNAHB
Please Read Instructions Before Use
ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCNAHB and is the answer not in the manual?

Questions and answers

Related Manuals for Friant FCNAHB

Summary of Contents for Friant FCNAHB

  • Page 1 MY-HITE CORNER ADJUSTABLE TABLE Model Number : FCNAHB FRIANT & ASSOC. 4901 E.12 STREET OAKLAND, CA 94601 T:510.535.5113 · FAX:510.535.5237 Please Read Instructions Before Use ASSEMBLY INSTRUCTIONS www.Friant.com/systems/my-hite...

  • Page 2: Tools Needed

    MANUAL»CAN»RESULT»IN»PRODUCT»DAMAGE,»OR»PERSONAL»INJURY. 1. As with all power-operated products, please follow instructions Friant & Associates, LLC does not assume any responsibility for product that is altered in any way. and handle with care. 2. When moving My-Hite tables, please lift the tables, do not drag them.

  • Page 3: Parts List

    Parts List Installation Steps Step»1: Place worksurface finished PART# NAME PIECES side down on a blanket. Side Bracket Step»2: Insert A side bracket into B crossbeam assembly. WORKSURFACE Repeat on other sides. Column Leg & Pad SIDE»BRACKET Crossbeam Center Rails CROSSBEAM Control Panel Control Box...
  • Page 4 Installation Steps Installation Steps IMPORTANT: MAKE»SURE»COLUMN»LEGS»ARE»SITTING»PERFECTLY»FLAT»AGAINST» Step»4: Use 4 socket button head THE»WORKSURFACE bolts, M6*12mm to secure side bracket, column leg and crossbeam together as shown in detail. Step»8: Place all 3 leg assemblies on worksurface and insert D center rails into C crossbeams as shown.
  • Page 5 Installation Steps Step»9: Secure D center rails to C crossbeams with K 8 socket Step»12: Secure the E control panel button head bolt M6*12mm. in the desired location with M 2 truss head screws M5*20mm. TRUSS»HEAD» SCREWS» M5*20mm CONTROL» Step»10: Ensure the leg assembly is still PANEL centered, both side-to-side and front-to-back.
  • Page 6 Installation Steps Step»13: Insert the F control box Step»15: Install the G telescopic cover in-between crossbeams. plates, leaving exit space for the electrical power cords, and secure Step»14: Connect E control panel to F control box to worksurface with M 8 truss head with H connector wires.
  • Page 7 Perform reset operation RESET OPERATION if problem persists contact Friant customer service to replace control panel Lower the table to 24.5” by holding arrow down (V) button. Release button. Press the arrow down (V) button again and hold til ASR shows on the display.
