CONNECTION AND OPERATION

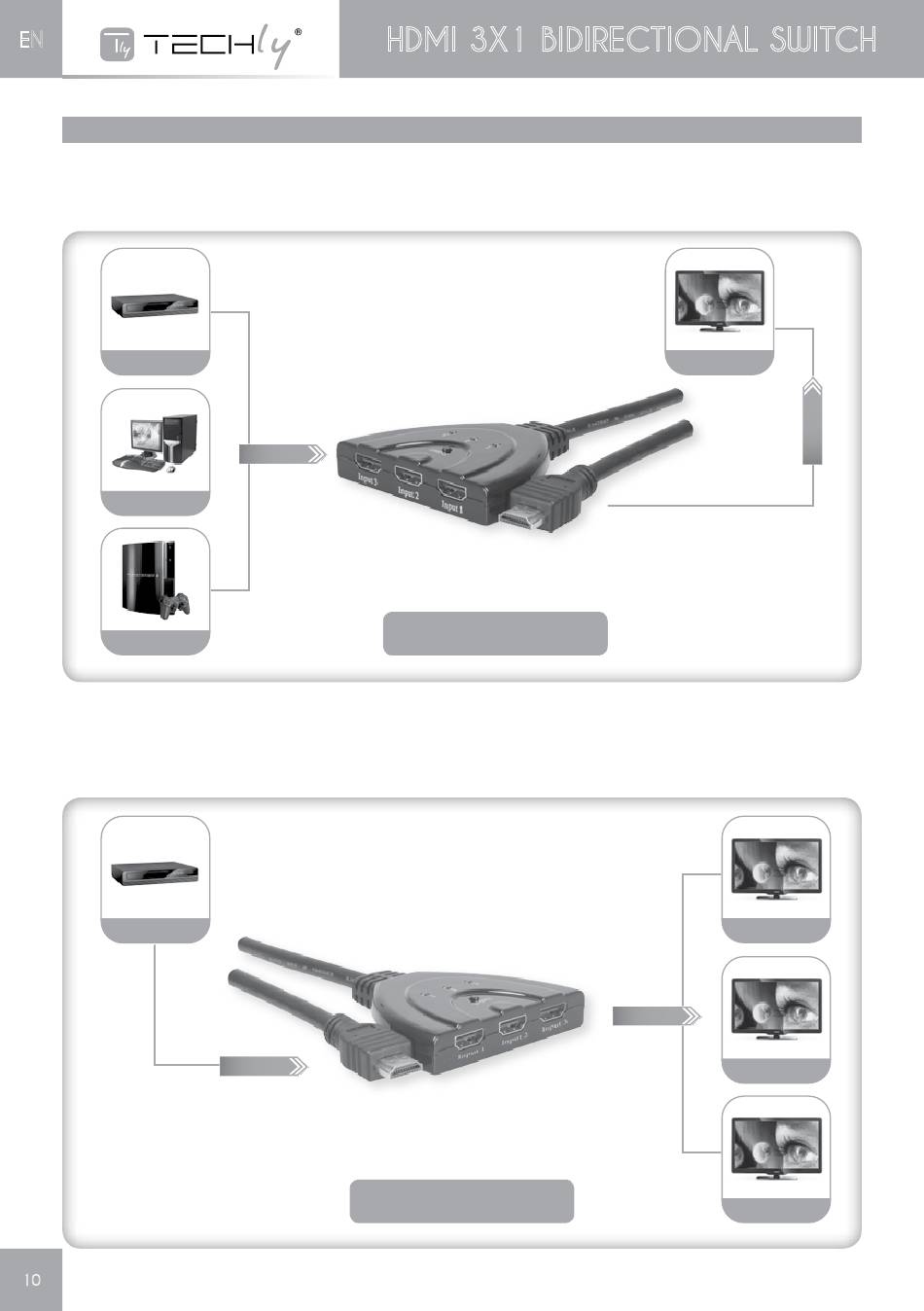

1) You can connect the HDMI sources to the three HDMI female ports and connect the HDMI display to

the HDMI male port. Then, press the "select" button to select one input source from three.

HD DVD

COMPUTER

PS3

2) You can also connect the HDMI Displays to the three HDMI female ports and connect the HDMI

sources to the HDMI male port. Then, press the "select" button to select one HDMI display from

three (But only one can be available).

HDMI Source

HDMI 3X1 BIDIRECTIONAL SWITCH

SWITCH FUNCTION

SPLITTER FUNCTION

HD TV

only

one display

HD TV

is available

HD TV
