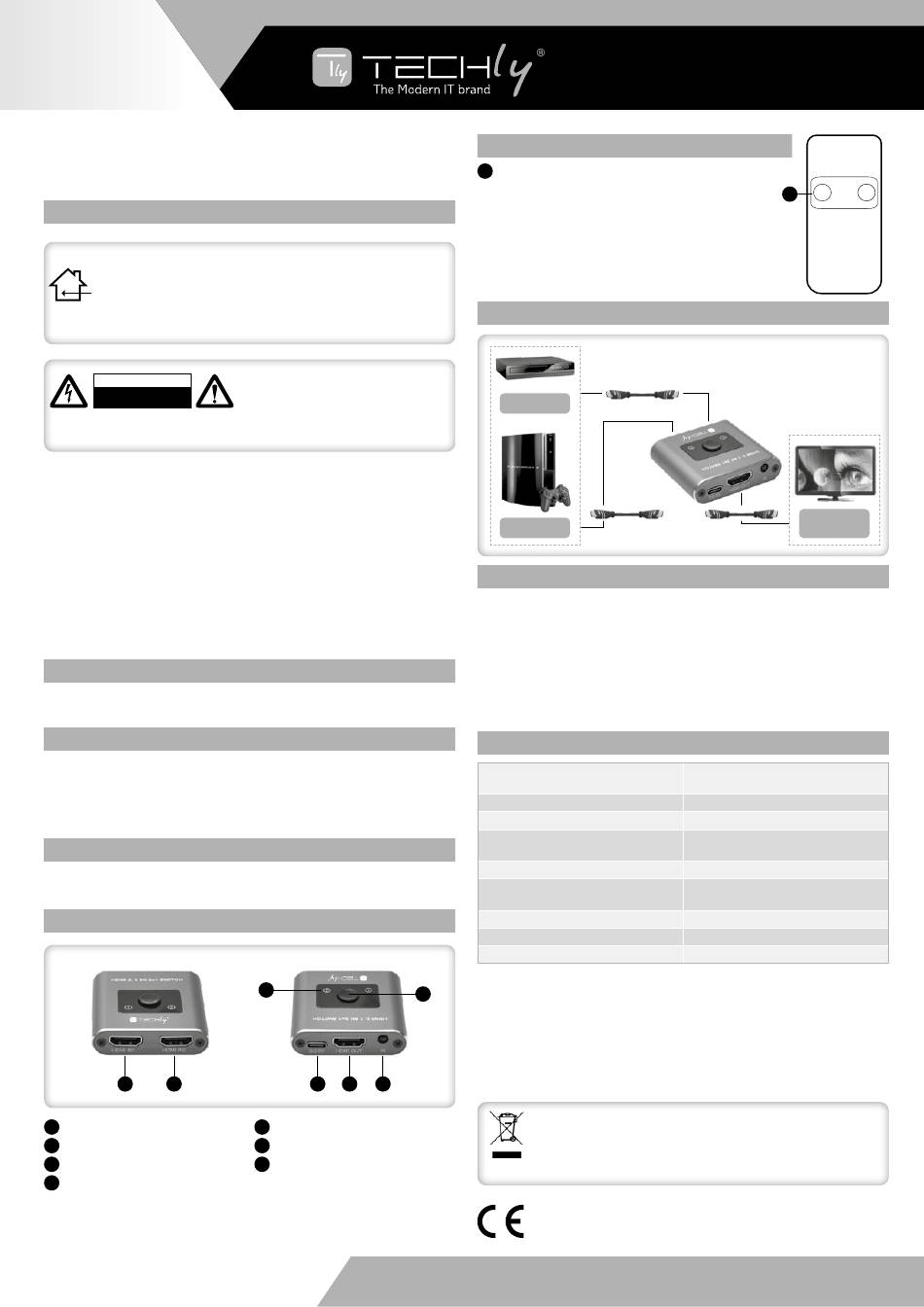

Techly HDMI-2128KT Quick Start Manual

EN
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
IMPORTANT SAFETY INSTRUCTION
INTENDED USE
We do not permit using the device in other ways like described in this user's
manual. Use the product only in dry interior rooms. Not attending to these
regulations and safety instruction might cause fatal accidents, injuries, and
damages to persons and property. The manufacturer/supplier assumes no liability for
damages caused by failure to comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
equipment if a problem should occur. Do not expose the product to water or moisture.
• Your product is not a toy and is not meant for children, because it contains small parts
which can be swallowed and can injure when used inappropriately! • Please install the
system and devices attached to it in a way that persons cannot be injured, or objects not
be damaged for example by dropping or stumbling. • Please remove the packing materials,
because children may cut themselves on them while playing. Furthermore, there is a risk
of swallowing and inhalation of incidentals and insulating material. • Avoid places with
high temperatures, or humidity, or places which might come into contact with water. Do
not install the product close to openings of air conditioners, or at places with an excessive
amount of dust or smoke. Keeps distance from flammable and explosive devices. • Do not
install the product at places subject to vibration, or oscillation. • Do not modify and alter the
product and any accessories! Do not use any damaged parts. • Keep enough space around
all devices for a good ventilation and free motion and to avoid damages. • Do not plug-in/
out the cables when it is in using.
INTRODUCTION
This HDMI Switch allows you to connect two HD input devices to one HDMI output device.
You can switch between two input devices by simply pressing the switch button.
FEATURES
1. Plug and Play, no software driver is needed
2. Supports 2 HDMI inputs and 1 HDMI output
3. Supports HD resolutions up to 8K@60Hz and downward compatible
4. Supports uncompressed audio, such as LPCM. Supports compressed audio such DTS
Digital, Dolby Digital, DTS-HD and Dolby TrueHD
PACKAGE CONTENTS
• 8K@60Hz 2x1 HDMI Switch *1
• USB Power Cable *1
PRODUCT OVERVIEW
1 2
1 HDMI Input port 1
2 HDMI Input port 2
3
Power input port
4
HDMI Output port
WWW.TECHLY.COM
To reduce risk of electric shock, this product
should ONLY be opened by an authorized
technician when service is required.
Disconnect the product from mains and other
• Remote control *1
• User manual *1
7
3 4 5
5 Infrared remote control
6 Change-over switch
7
Input port LED indicator
REMOTE CONTROL
1 HDMI Input source selector: Select an input source
CONNECTION DIAGRAM
Equipment 1
Equipment 2
INSTALLATION GUIDE
1. Connect an HDMI source device (such as DVD player) to one of the input ports of the
HDMI Switch
2. Connect the display device such as an HDTV's input port to the output of the HDMI
Switch
3. Connect the USB-C cable to power port
TM
4. After all connections are done, you can watch HD video on you HDTV
Attention: Insert / Extract cable gently.
SPECIFICATION
HDMI resolution
HDMI/HDCP version
Color format for video
Audio supported
Maximum transmission rate
Distance between input cable and
output cable
Maximum working current
Working temperature
Operating humidity range
NOTE: when HDMI Switch is working ensure that the source devices such as DVD and
6
display devices are properly connected. In order to make the relevant interfaces work
properly, power the switch first and the sources and display devices.
Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty: No guarantee or liability can be accepted for any changes and modifications of
the product or damage caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with this
symbol. It means that used electrical and electronic products should not
be mixed with general household waste. There is a separate collections
system for these products in compliance with WEEE directive, otherwise
contaminative and hazardous substances can pollute the environment.
With the CE sign, Techly
European standards and directives.
2X1 HDMI SWITCH 8K@60HZ
24/50/60fps 480i/576i/480p/720p/1080i/
1080p/2160p/4320p
HDMI 2.1, HDCP 2.3
2.4bits, 30 bits, 36 bits
DTS HD/Dolby – trueHD/LPCM7.1/DTS/
Dolby-AC3 / DSD HD (HBR)
48 Gbps
<2m AWG 24 HDMI standard cable
5V/1A
-15°C to 55°C
5% to 90% RH
ensures that the product is conformed to the basic
®
1 1
2
HDMI 8K
2x1 Switch
Display
Device
