www.techly.it
SWITCH HDMI BIDIREZIONALE 3X1
HDMI 3X1 BIDIRECTIONAL SWITCH
Manuale d'istruzione
User's manual
IDATA HDMI-3BI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDATA HDMI-3BI and is the answer not in the manual?

Questions and answers

Summary of Contents for Techly IDATA HDMI-3BI

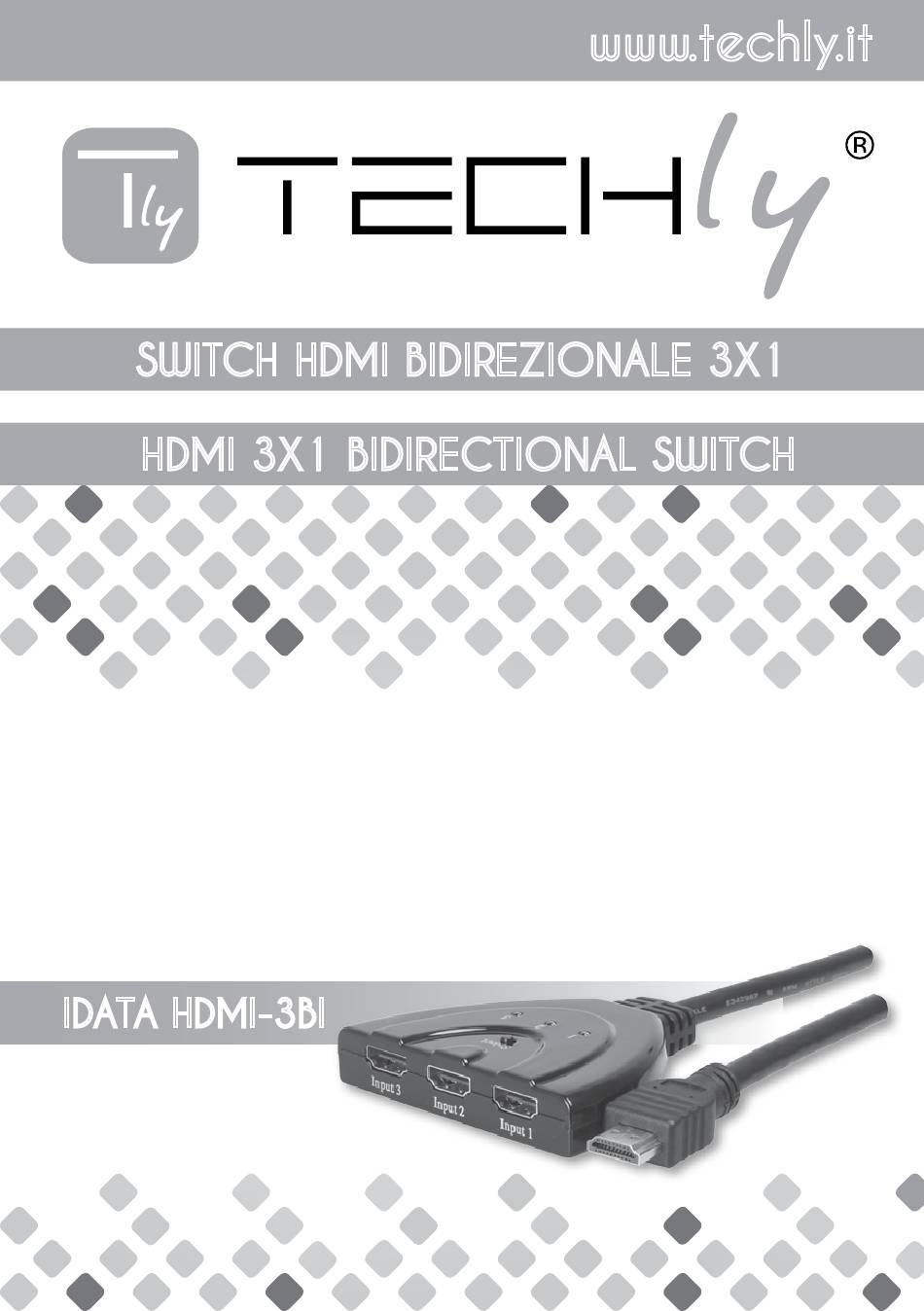

  • Page 1 SWITCH HDMI BIDIREZIONALE 3X1 HDMI 3X1 BIDIRECTIONAL SWITCH Manuale d’istruzione User’s manual IDATA HDMI-3BI...
  • Page 2: Table Of Contents

    SWITCH HDMI BIDIREZIONALE 3X1 MANUALE D'ISTRUZIONE INDICE 1.0 Introduzione ......................................2.0 Specifiche ........................................3.0 Contenuto della confezione ....................... 4.0 Descrizione apparecchio ..........................5.0 Collegamento e funzionamento ................... 6.0 Precauzioni di sicurezza e manutenzione ..........
  • Page 3: Introduzione

    SWITCH HDMI BIDIREZIONALE 3X1 SWITCH HDMI BIDIREZIONALE 3X1 Gentile Cliente Grazie per aver acquistato questo prodotto. Per ottenere il massimo delle prestazioni nella salvaguardia della vostra sicurezza, vi consigliamo di leggere con attenzione il presente manuale prima di collegare e mettere in funzione il prodotto.
  • Page 4: Specifiche

    SWITCH HDMI BIDIREZIONALE 3X1 SPECIFICHE Ingresso/Uscita segnale Segnale DDC ingresso 5 volts p-p (TTL) Intervallo massimo Single Link 1920X1080p Uscita video HDMI Frequenza di funzionamento Intervallo di frequenza verticale 50/60Hz Larghezza di banda video 2.5Gbps/250MHz Risoluzione (HDTV) Interlacciata (50&60Hz) 480i, 576i, 1080i Progressiva (50&60Hz) 480p,5 76p, 720p, 1080p Condizioni ambientali Temperatura d’esercizio Da 0°C a +70°C Umidità d’esercizio Da 10% a 85% RH (senza condensa) Temperatura di stoccaggio Da -10°C a +80°C Umidità di stoccaggio Da 5% a 90% RH (senza condensa)
  • Page 5: Collegamento E Funzionamento

    SWITCH HDMI BIDIREZIONALE 3X1 COLLEGAMENTO E FUNZIONAMENTO 1) E’ possibile collegare le sorgenti HDMI alle tre porte HDMI femmina e collegare il display HDMI alla porta HDMI maschio. Quindi, premere il tasto “select” per selezionare una tra le tre sorgenti in ingresso.
  • Page 6: Precauzioni Di Sicurezza E Manutenzione

    SWITCH HDMI BIDIREZIONALE 3X1 PRECAUZIONI DI SICUREZZA USO PREVISTO Non è consentito l’uso dell’apparecchio in modi diversi da quello indicato nel presente manuale. Utilizzare il prodotto solo luoghi interni asciutti. Non rispettare le istruzioni e le precauzioni di sicurezza riportate nel presente manuale potrebbe causare incidenti mortali, lesioni e danni a persone e cose. Il costruttore/fornitore non risponde dei danni risultanti da un utilizzo non conforme all’uso previsto. Per ridurre il rischio di shock elettrico, questo AT T E N Z I O N E prodotto dovrebbe essere aperto SOLO da un...
  • Page 7 HDMI 3X1 BIDIRECTIONAL SWITCH USER'S MANUAL TABLE OF CONTENTS 1.0 Introduction ......................................2.0 Specifications ....................................3.0 Package Contents ................................4.0 Panel Descriptions ................................5.0 Connection and Operation ........................ 6.0 Safety precautions ..............................
  • Page 8: Introduction

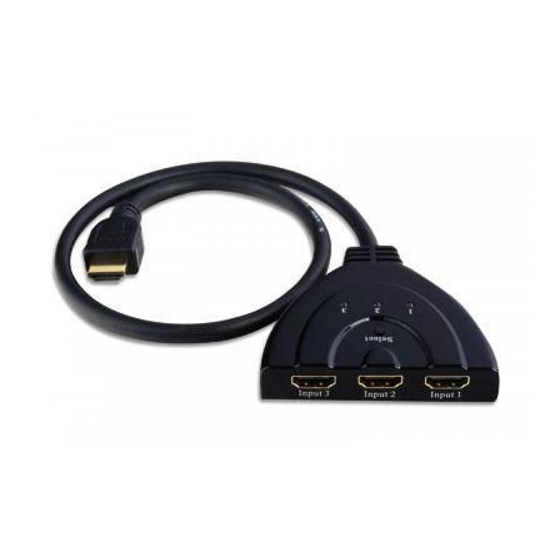

    HDMI 3X1 BIDIRECTIONAL SWITCH HDMI 3X1 BIDIRECTIONAL SWITCH Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. INTRODUCTION This is a kind of high performance HDMI Bidirectional Switch. It can switch one of three sources to one display or switch one source to one of three displays. Press the switch button to select channel 1, channel 2 or channel 3. With a piece fixed HDMI cable this converter not only reduces cost but also save time for customers. FEATURES This HDMI Switcher has many features that enable it to perform in a superior manner. Among those features you will find: • HDMI bidirectional switch, it can switch one of three sources to one display or switch one source to one of three displays.
  • Page 9: Specifications

    HDMI 3X1 BIDIRECTIONAL SWITCH SPECIFICATIONS Signal Inputs/Output Input DDC Signal 5 volts p-p (TTL) Maximum Single Link Range 1920X1080p Output Video HDMI Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 2.5Gbps/250MHz Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Progressive (50&60Hz) 480p, 576p, 720p, 1080p Environmental Operating Temperature 0°C to +70°C Operating Humidity 10% to 85% RH (no condensation) Storage Temperature -10°C to +80°C Storage Humidity 5% to 90% RH (no condensation) Power Requirement External Power Supply...
  • Page 10: Connection And Operation

    HDMI 3X1 BIDIRECTIONAL SWITCH CONNECTION AND OPERATION 1) You can connect the HDMI sources to the three HDMI female ports and connect the HDMI display to the HDMI male port. Then, press the “select” button to select one input source from three. HD DVD HD TV COMPUTER SWITCH FUNCTION 2) You can also connect the HDMI Displays to the three HDMI female ports and connect the HDMI sources to the HDMI male port. Then, press the “select” button to select one HDMI display from three (But only one can be available). HDMI Source HD TV only one display HD TV is available...
  • Page 11: Safety Precautions

    HDMI 3X1 BIDIRECTIONAL SWITCH SAFETY PRECAUTIONS INTENDED USE We do not permit using the device in other ways like described in this user’s manual. Use the product only in dry interior rooms. Not attending to these regulations and safety instruction might cause fatal accidents, injuries, and damages to persons and property. The manufacturer/supplier assumes no liability for damages caused by failure to comply with the intended use. To reduce risk of electric shock, this product should C A U T I O N ONLY be opened by an authorized technician when RISK OF ELECTRIC SHOCK service is required.
  • Page 12 CONVERTITORE DA HDMI A VGA + AUDIO D/S www.techly.it...
