Techly IDATA HDMI-22BI2 User Manual

USER'S
MANUAL
Dear Customer,
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this
manual for future reference.
SAFETY PRECAUTION
Intended Use
Your switcher is provided for audio-/video use only. It is not
allowed to use the device in other ways than described in this
user's manual. Use this device only in dry interior rooms. The
symbol with the house reminds you of that. If you do not attend
to these regulations and notes on safety, it might causes fatal
accidents, injuries and damages to persons and property.
CAUTION
To reduce risk of electric shock, this product should ONLY be
opened by an authorized technician when service is required.
Disconnect the product from mains and other equipment if a
problem should occur. Do not expose the product to water or
moisture.
• Your product is not a toy and is not meant for children, because
it contains small parts which can be swallowed and can injure
when used inappropriately!
• Please install the system and devices attached to it in a way
that persons cannot be injured, or objects not be damaged for
example by dropping or stumbling.
• Please remove the packing materials, because children may
cut themselves on them while playing. Furthermore, there is a
risk of swallowing and inhalation of incidentals and insulating
material.
• Avoid places with high temperatures, or humidity, or places
which might come into contact with water. Do not install the
product close to openings of air conditioners, or at places with
an excessive amount of dust or smoke.
• Do not install the product at places subject to vibration, or
oscillation.
• Do not modify and alter the product and any accessories! Do
not use any damaged parts.
• Keep enough space around all devices for a good ventilation
and free motion and to avoid damages.
INTRODUCTION
This is one device of HDMI2.0 2 ports bi-direction manual
switcher. It can easily switch two routes of HD Source to any
one HD display or projector. Also it can distribute one HD Source
to two HD Display or projector. The resolution can be up to
4Kx2K@60Hz.
FEATURES
• 1 HDMI input to 2 HDMI output; 2 HDMI input to 1 HDMI output
• Manual select push button to alternate between modes
• Support HDMI 2.0 version and HDCP2.2 version
• Support 3D video format
• Support high resolution up to 3840x2160/60HZ,YUV 4:4:4
• Support CEC
• Support highest rate of 18 G and TMDS clock can be up to
600 MHz
• Support 30/36/48 bit deep color
• Support signal retiming
• No power needed
• 2x1 mode: Easily switch between two HDMI video sources to
one HDMI display.
• 1x2 mode: Easily switch signal HDMI video source between
two displays.
WWW.TECHLY.COM
SPECIFICATIONS
HDMI version
HDCP version
HDMI resolution
Support video format
Support audio format
Max bandwidth
Max baud rate
Input cable distance
Output cable distance
Max working current
Operating Temperature range
Dimension (L x W x H)
Weight

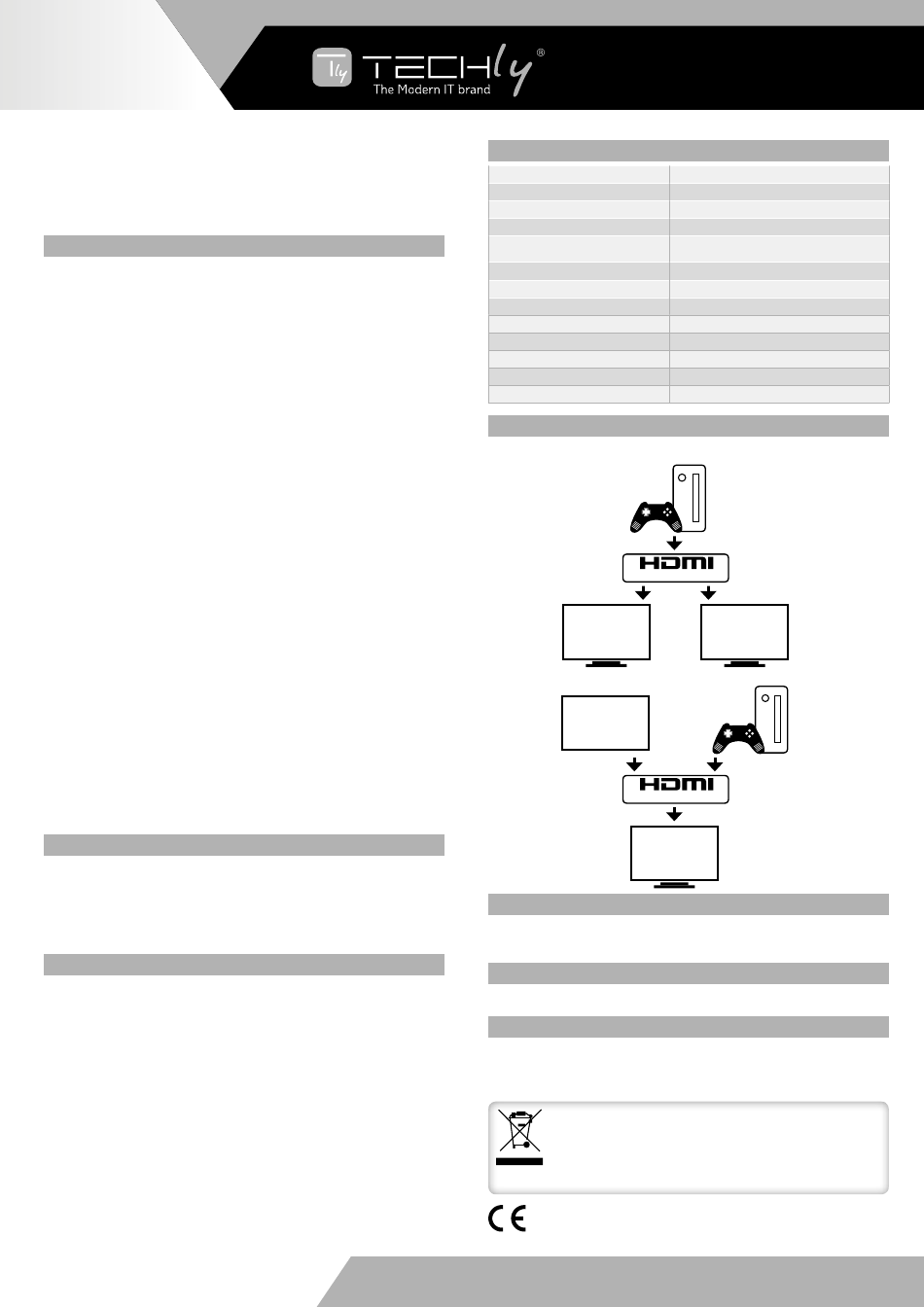

CONNECTION
Mode 1: 1 HDMI input 2 HDMI output
SWITCH
TV
Mode 2: 2 HDMI input 1 HDMI output
DVD
SWITCH
PACKAGE INCLUDE
1. 2 Port Bi-directional HDMI Switch 4K 60Hz
2. User manual
MAINTENANCE
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
WARRANTY
No guarantee or liability can be accepted for any changes and
modifications of the product or damage caused due to incorrect
use of this product.
In compliance with EU Directive WEEE this product is marked
with this symbol. It means that used electrical and electronic
products should not be mixed with general household waste.
There is a separate collections system for these products in
compliance with WEEE directive, otherwise contaminative and
hazardous substances can pollute the environment.
With the CE sign, Techly
conformed to the basic European standards and directives.

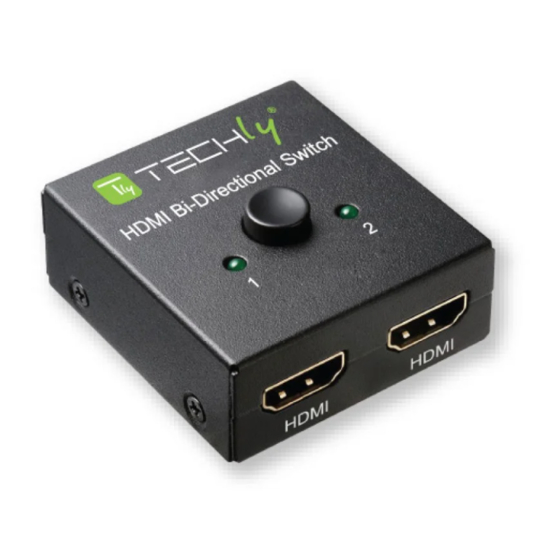

2 PORT BI-DIRECTIONAL
HDMI SWITCH 4K 60HZ
IDATA HDMI-22BI2
HDMI 2.0
HDCP2.2
up to 3840*2160/60Hz
8/10/12 bit deep color
DTS-HD/Dolby-trueHD/DTS/Dolby-
AC3/DSD
600MHz
18Gbps
≤10m AWG24 HDMI standard cable
≤10m AWG24 HDMI standard cable
500mA
(-15°Cto +55°C)
48x52x20 (mm)
50g
TV
TV
ensures that the product is
®
