USER'S
MANUAL
Dear Customer,
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
SAFETY PRECAUTION
Intended Use
Your switcher is provided for audio-/video use only. It is not allowed to use
the device in other ways than described in this user's manual. Use this device
only in dry interior rooms.
CAUTION
To reduce risk of electric shock, this product should ONLY be opened by an
authorized technician when service is required. Disconnect the product from
mains and other equipment if a problem should occur. Do not expose the
product to water or moisture.
• Your product is not a toy and is not meant for children, because it
contains small parts which can be swallowed and can injure when used
inappropriately!
• Please install the system and devices attached to it in a way that persons
cannot be injured, or objects not be damaged for example by dropping or
stumbling.
• Please remove the packing materials, because children may cut themselves
on them while playing. Furthermore, there is a risk of swallowing and
inhalation of incidentals and insulating material.
• Avoid places with high temperatures, or humidity, or places which might
come into contact with water. Do not install the product close to openings
of air conditioners, or at places with an excessive amount of dust or smoke.
• Do not install the product at places subject to vibration, or oscillation.
• Do not modify and alter the product and any accessories! Do not use any
damaged parts.
• Keep enough space around all devices for a good ventilation and free
motion and to avoid damages.
INTRODUCTION

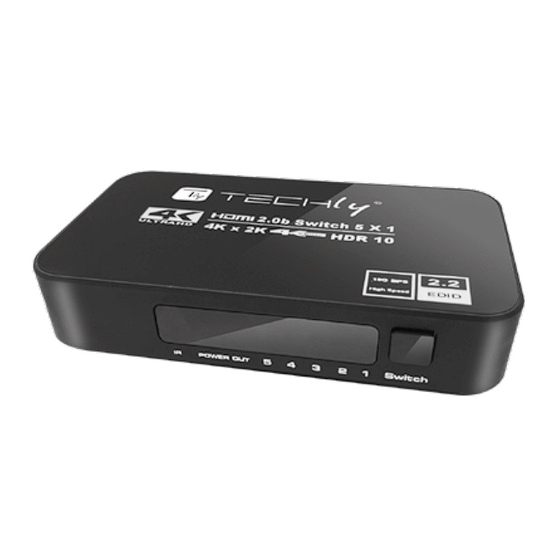

This 5x1 HDMI switcher can support 5 HDMI ports to switch to a display
terminal via remote control or manual button. The Switch can be applied for
connection, signal amplification, multi-picture conversion and for selection
between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3 /
PS4 Por and LCD TV, LCD, Projector, as well as an Audio/Video receiver.
PRODUCT FEATURES
• Switch easily between any 5 HDMI sources
• Support resolution up to ultra HD 4Kx2K@60Hz
• Support highest bandwidth up to 18Gpbs
• Support HDR
• Support HDMI 3D
• Support IR control
• Support uncompressed audio such as PCM
• Support HDCP 2.2
• Plug and play, easy to use
• Good compatibility
SPECIFICATIONS
DDC Signal Input
TMDS Signal Input
Highest Resolution
Framerate
Bandwidth Frequency
Resolution of interlaced scanning
Resolution of progressive scanning
Working temperature
Working Humidity
Storage
Storage Humidity
Power Supply
Maximum Power Consumption
User manual language
WWW.TECHLY.COM
5 volts p-p (TTL)
0.5-1.0 volts p-p
4Kx2K 60Hz
50/60Hz
480i, 1080P, 576i, 1080i, 4K
480i, 1080P, 576i, 1080i, 4K
480p, 576p, 720p, 1080p,
4Kx2K 60Hz
0°C-85°C
10%-85% RH (no crystal)
-10°C – 80°C
5% - 90% RH (no crystal)
DC 5V/1°
2.5W
English/Italian
PRODUCT PHYSICAL INTERFACE
DC 5V
Output
Receivs
infrared
signals from
the remote
control Power Indicator
Indicates that a source
Output port
device is connected
indicator
CONNECTION AND OPERATION
STB/IPTV
Blue-ray player
DC 5V INPUT
DC 5V
1x OUTPUT
TV
PRODUCT APPLICATION
• It is strongly advised that when using the product, the customer should
connect the HDMI output terminal to a television set or the HDMI2.0b
port of any other device with HDMI display, so as to give full play to
the performance of the product and gain an excellent audio and video
experience.
• Freely switching 5 digital audio and video HDMI signal source inputs to the
display device.
• Output display devices; digital televisions, HDMI flat panel televisions, high
definition televisions, digital projectors, video receivers, VR, other HDMI
display devices.
PACKAGE INCLUDE
1. HDMI2.0 switch 5 in 1 out 4K@60Hz
2. Remote control
3. USB Cable
4. User Manual
MAINTENANCE
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
WARRANTY
No guarantee or liability can be accepted for any changes and modifications
of the product or damage caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with
this symbol. It means that used electrical and electronic products
should not be mixed with general household waste. There is a
separate collections system for these products in compliance
with WEEE directive, otherwise contaminative and hazardous
substances can pollute the environment.
With the CE sign, Techly
the basic European standards and directives.
HDMI2.0 SWITCH
5 IN 1 OUT 4K@60HZ
