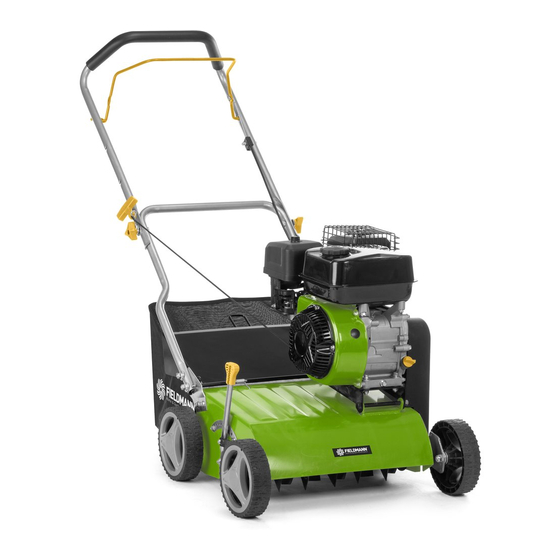

Summary of Contents for Fieldmann FZV 6050 B

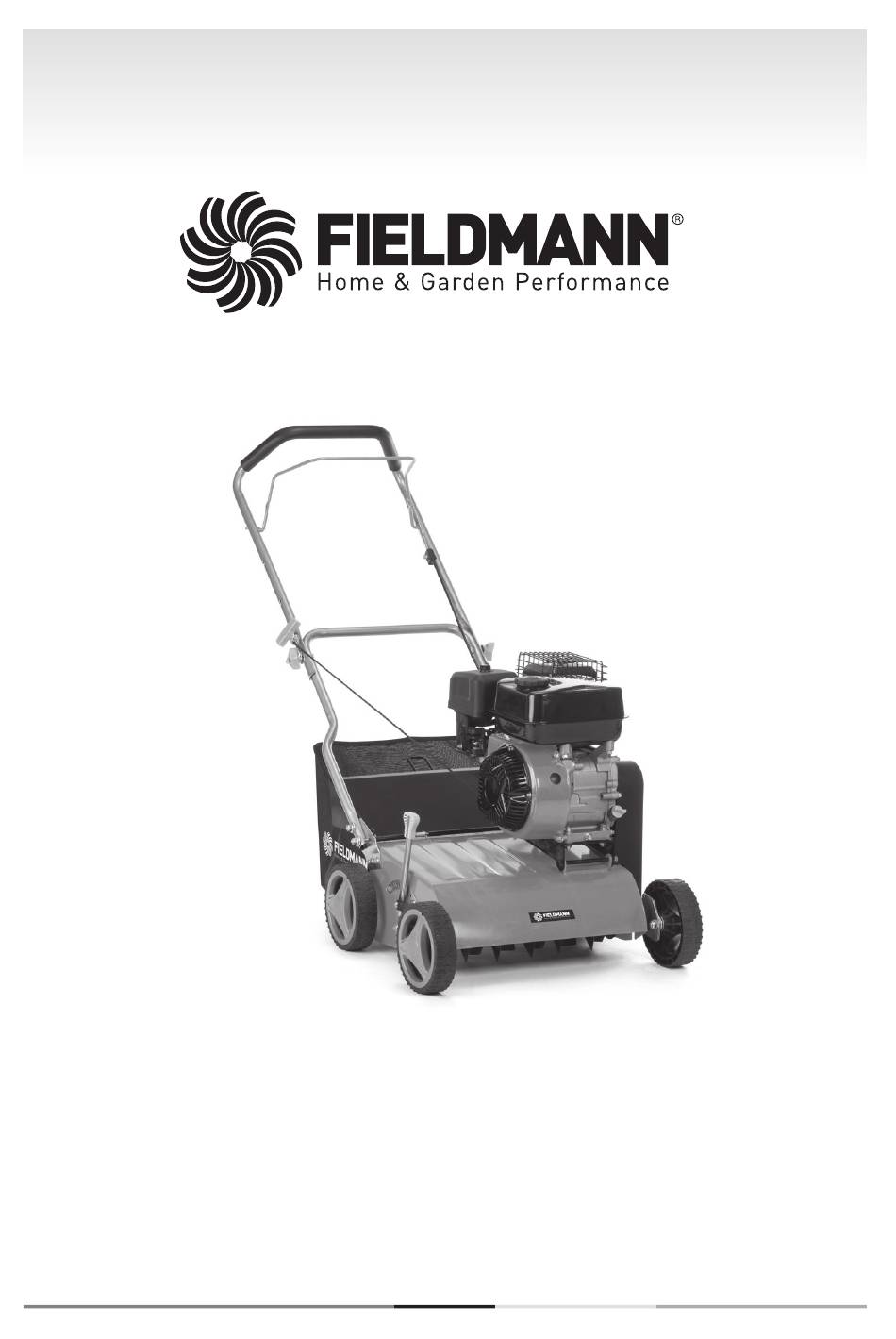

- Page 1 FZV 6050 B...
- Page 2 English ........................................1-20 Czech ........................................21-38 Slovak ........................................39-56 Hungarian......................................57-74 Polish ........................................75-98 FZV 6050 B...
-
Page 3: Table Of Contents
Table of Contents Gas lawn cultivator INSTRUCTIONS FOR USE Thank you for purchasing this petrol cultivator. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................4 Important safety notice ............................4 Packaging ..................................4 User manual ...................................4... -
Page 4: General Safety Regulations
When using the product, follow the instructions contained in the included user's manual. A complaint will not be accepted if you modifi ed the product or if you did not follow the instructions in the user's manual. FZV 6050 B... -
Page 5: Explanation Of The Instruction Labels On The Machine
Explanation of instruction labels on the machine 2. EXPLANATION OF THE INSTRUCTION LA- BELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Attention, rotating blades! Protect yourself against the danger of injury to limbs. - Page 6 Indicates that there is a risk of injury to persons, death or damage to the machine if instructions are not followed. Use ear protection. Use eye protection. Use breathing protection. Choke lever Fuel tank cap Conforms to all relevant European directives. FZV 6050 B...
-
Page 7: Instructions For Correct Use
Instructions for correct use | Cultivator description | Assembly/preparation 3. INSTRUCTIONS FOR CORRECT USE The device is designed exclusively for cultivating of grassy areas. The device is not intended for cultivating fl ower beds, for levelling soil elevations such as molehills or for removing lawns, shredding branches or trimming hedges and the like. -
Page 8: Taking The Lawnmower Out Of The Cardboard Packaging
3. Attach the switch lever cable to the handle using the enclosed plastic clip Fig. 2a Fig. 2b Fig. 2c 2. FITTING THE CATCHER Lift the basket rear cover and attach the basket to the cover axis using the hooks. Fig. 3 FZV 6050 B... -
Page 9: Before Starting The Cultivator
Before starting the cultivator 7. BEFORE STARTING THE CULTIVATOR ADDING OIL Fig. 4a The cultivator is supplied without motor oil. Before fi rst start up, add motor oil SAE30 or 15W-40 (approx 600 ml) according to the following instructions. 1. When pouring in the oil, place the cultivator on a level surface. 2. -
Page 10: Controlling And Operating The Cultivator
To adjust the working depth, gently pull the depth adjustment lever (Fig. 6) away from the machine and set the depth (max. 3mm) and then lock the lever back into position. Important! Move the lever to the highest position for transporting. FZV 6050 B... -
Page 11: Tips For Correct Cultivating
Controlling and operating the cultivator | Safety instructions TIPS FOR CORRECT CULTIVATING Try to cultivate in straight lines for better results. The rows should overlap by a few centimetres to avoid gaps in the rows. Once grass remains behind the cultivator, it is time to empty the grass catcher. It is recommended that the cultivator is carried out at least twice a year, in the spring months and early autumn. - Page 12 Continue with work only after the spilled fuel has evaporated and the fuel fumes have dissipated. After adding fuel, securely tighten the fuel tank cap and the cap on the fuel canister. ATTENTION: Before carrying out maintenance or repairs, stop the engine and disconnect the spark plug. FZV 6050 B...
-
Page 13: Cleaning, Maintenance, Storage, Transportation
Cleaning, maintenance, storage, transportation 10. CLEANING, MAINTENANCE, STORAGE, TRANSPORTATION Important! Never operate or touch the controls on the ignition unit while the engine is running. Always unplug the spark plug before starting any care or maintenance work. Never carry out any work on the machine while it is running. -
Page 14: Servicing The Air Filter
3. Pour the motor oil out of a warm engine. 4. Remove the spark plug base from the spark plug. 5. Clean the drum cooling fi ns and cover. 6. If necessary, remove the cultivator handles. Make sure the cables are not broken. FZV 6050 B... -
Page 15: Technical Specifications
Technical specifi cations 11. TECHNICAL SPECIFICATIONS Engine DUCAR DH212 Engine type OHV, air cooled, 4-stroke Rated power 4.3 kW Working engine speed 2/800 rpm/min Displacement 208 cm Starting Pull cord Fuel tank volume 3.6 litres Recommended fuel Petrol - lead-free, at least 95 octane Oil tank volume 0,6 l Recommended oil... -
Page 16: Servicing Interval
Inspection Air fi lter Cleaning Replacement Inspection & Cleaning Spark plug Replacement Idle Check & Adjust X(*) Valve movement Check & Adjust X(*) Combustion Cleaning X(*) chamber Inspection & Fuel lines X(*) Cleaning Total preventive check X(*) FZV 6050 B... -
Page 17: Detection And Troubleshooting
Detection and troubleshooting 13. DETECTION AND TROUBLESHOOTING Problem Probable cause Measures Move the choke lever to the correct posi- Choke damper in wrong position tion The fuel tank is empty Fill the fuel tank with fuel The air fi lter is dirty Clean the air fi... - Page 18 Install a new spark plug with the correct Unsuitable spark plug gap between the electrodes The cutting unit is loose Tighten the cutting unit The cultivator vibrates The cutting unit is damaged replace the cutting unit excessively Bent crankshaft Contact the service FZV 6050 B...
-
Page 19: Declaration Of Conformity
Declaration of conformity GAS LAWN CULTIVATOR USER MANUAL... -
Page 20: Disposal
This appliance meets all the basic requirements of the EU directives. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. Translation of the original user’s manual. FZV 6050 B...
