System Setup Procedures

Summary of Steps
1) Install good batteries and turn power on.
2) Set the compatibility mode to match the receiver.
3) Connect the signal source and adjust input gain for optimum
modulation level.
4) Set Step Size and frequency to match receiver. Also see receiver
manual for scanning procedure to find a clear operating frequency.
5) Turn on the receiver and verify that solid RF and audio signals are pres-
ent (see receiver manual).
1) Install Batteries

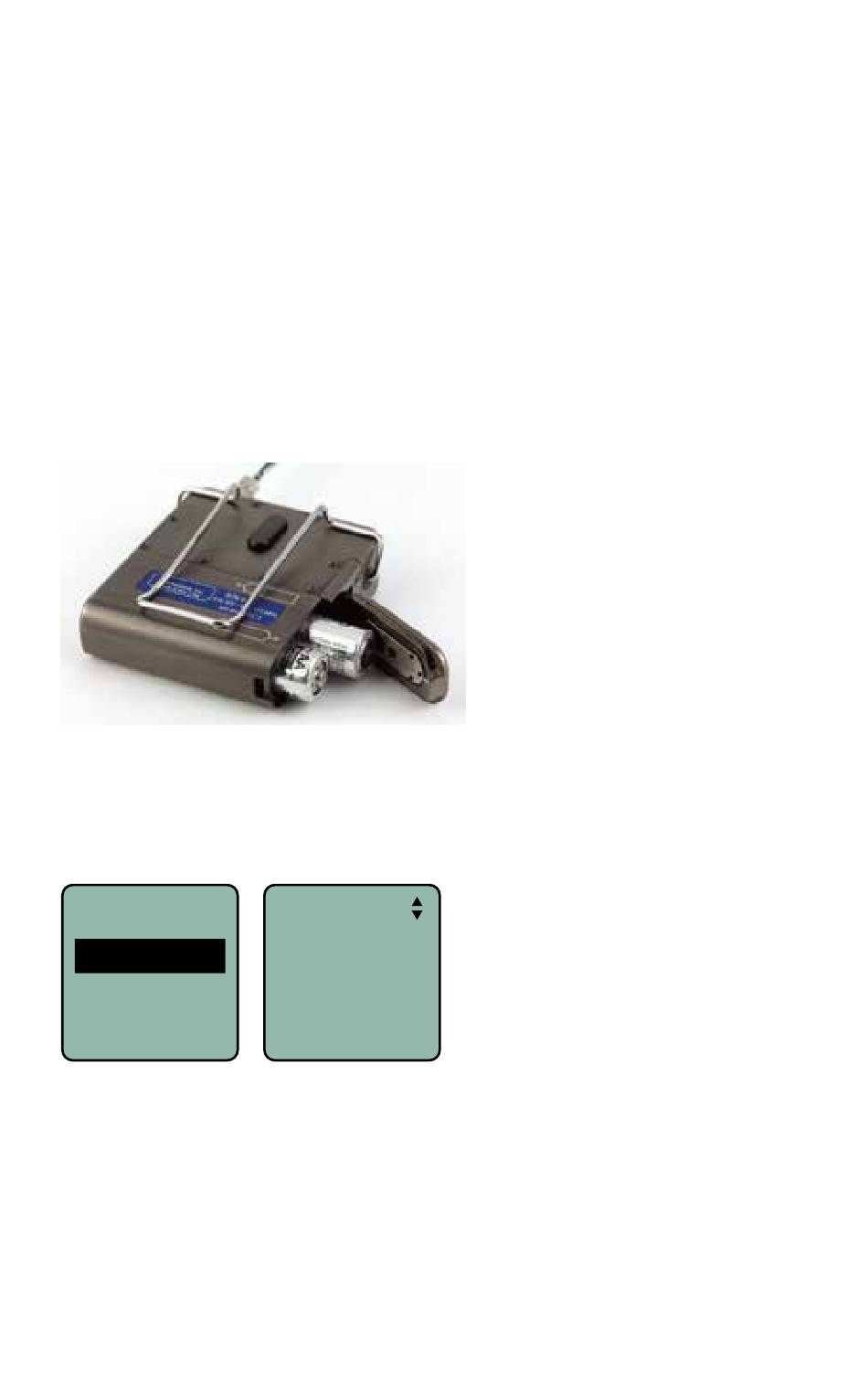

Insert the batteries according to the markings on the back of the housing.
2) Set Compatibility Mode
When used with a Lectrosonics Digital Hybrid Wireless
audio quality will be achieved with the system set to the Nu Hybrid compat-
ibility mode.
Rolloff
Compat
StepSiz
Phase
Use the UP and DOWN arrows to select the desired mode, then press the
BACK button twice to return to the Main Window.
Compatibility modes are as follows:
Receiver Models
• Nu Hybrid
• IFB
• Mode 3
6
Compat
Nu Hybrid
receiver, the best
®
