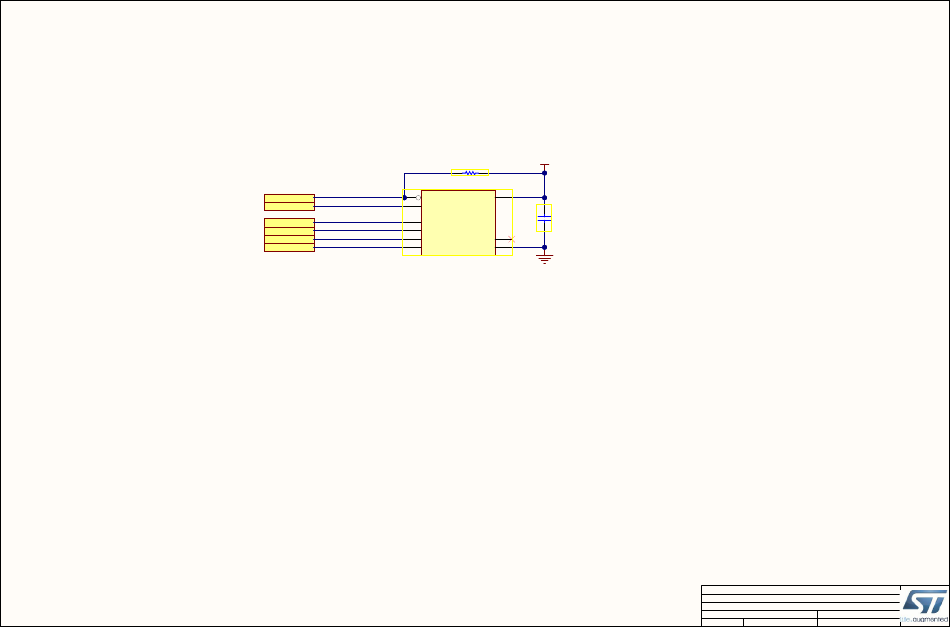

Quad SPI Flash Memory

U3
QSPI_NCS 1
QSPI_NCS S#
QSPI_CLK 6
QSPI_CLK C
QSPI_D0 5
QSPI_D0 DQ0
QSPI_D1 2
QSPI_D1 DQ1
QSPI_D2 3
QSPI_D2 DQ2/W#
QSPI_D3 7
QSPI_D3 DQ3/HOLD#
MT25QL128ABA1EW9-0SIT
3V3
R57
10K_1%_0402
8
VCC
C38
100nF_X7R_10%_0402
9
EPAD
4
VSS
Title: Quad SPI Flash Memory (MICRON)
Project: STM32F7508-DK
Variant: F750N8H6
Revision: C 01 - Reference: MB1191
Size: A4 Date: 17/07/2019 Sheet: 7 of 14
