Satel SILVER Quick Start Manual

SILVER

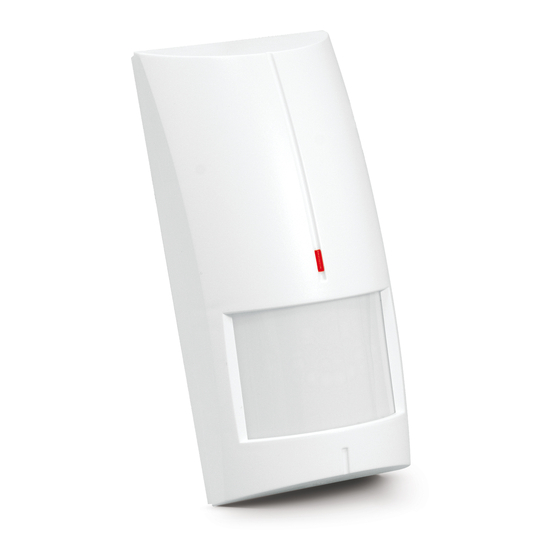

DIGITAL DUAL TECHNOLOGY MOTION DETECTOR

1. Features

•
Combined PIR and microwave technology.
•
Digital motion detection algorithm.
•
Digital temperature compensation.
•
Selectable operation modes: basic or advanced.
•
Microwave based anti-mask feature
•
Remote LED enable/disable.
•
Alarm memory.
•
Supervision of detector signal path and supply voltage.
•
Capability of separate sensor testing.
•
Tamper protection against enclosure opening.

2. Specifications

Supply voltage ........................................................................................................... 12 V DC ±15%
Standby current consumption.................................................................................................. 18 mA
Maximum current consumption ............................................................................................... 25 mA
Relay contacts rating (resistive load) ..................................................................... 40 mA / 16 V DC
Microwave frequency...................................................................................................... 10.525 GHz
Detectable speed.............................................................................................................. 0.3...3 m/s
Alarm signaling time ......................................................................................................................2 s
Security grade according to EN50131-2-4 ........................................................................... Grade 2
Standards complied with .................................EN50131-1, EN50131-2-4, EN50130-4, EN50130-5
Environmental class according to EN50130-5 ................................................................................ II
Operating temperature range ......................................................................................... -30...+55 °C
Maximum humidity.................................................................................................................. 93±3%
Dimensions............................................................................................................62 x 136 x 49 mm
Recommended installation height ............................................................................................ 2.4 m
Weight ...................................................................................................................................... 126 g
The declaration of conformity may be consulted at www.satel.eu/ce

3. Operation modes

Basic – the detector indicates an alarm if both sensors detect motion within a time period shorter
than 3 seconds.
Advanced – the detector indicates an alarm if:
− both sensors detect motion within a time period shorter than 3 seconds;
− within a time interval less than 3 seconds, the microwave sensor detects motion and the
PIR sensor detects some changes in coverage area, insufficient however to be recognized
as motion;
− within 15 minutes' period, the microwave sensor detects motion 16 times, but PIR sensor
does not detect any changes in coverage area.
®
silver_en 12/11
