SILVER
Digital dual technology motion detector
Firmware version 2.00
silver_en 02/20
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silver and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Satel Silver

  • Page 1 SILVER Digital dual technology motion detector Firmware version 2.00 silver_en 02/20 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3: Table Of Contents

    CONTENTS Features ........................... 2 Description ........................2 Operation modes ......................2 Anti-mask feature ......................2 Supervision features ......................2 LED indicator ........................3 Alarm memory ........................3 Electronics board ......................3 Selecting a mounting location ................... 5 Installation ........................5 Start-up and walk test .......................
  • Page 4: Features

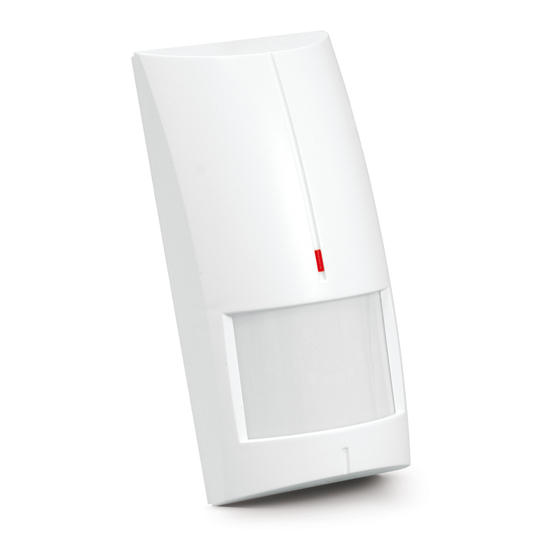

    SILVER SATEL The SILVER detector detects movement in the protected area. This manual applies to the detector with electronics version H. 1. Features • Motion detection with two sensors: passive infrared sensor (PIR) and microwave sensor (MW). • Adjustable detection sensitivity of both sensors.
  • Page 5: Led Indicator

    SATEL SILVER LED indicator The LEDs indicate: • warm-up – flashing alternately red and green for about 30 seconds; • motion detected by one of the sensors – lights green for 2 seconds; • alarm – lights red for 2 seconds;...
  • Page 6 SILVER SATEL 3 – built-in resistors are not used – connect the detector outputs as shown in Fig. 12. microwave sensor. bi-color LED indicator. detector configuration pins: MODE- selecting the detector operation mode: basic mode – place the jumper as shown in Fig. 4, advanced mode –...
  • Page 7: Selecting A Mounting Location

    SATEL SILVER 4. Selecting a mounting location • Do not install the detector outdoors (A). • Install the detector at the recommended height (B). • When choosing the installation location, keep in mind that the detector performance will be the best where the expected direction of the intruder movement will be across the coverage pattern (C).
  • Page 8 SILVER SATEL...
  • Page 9 SATEL SILVER...
  • Page 10 SILVER SATEL...
  • Page 11: Start-Up And Walk Test

    SATEL SILVER 6. Start-up and walk test The LED should be enabled during the walk test (see “LED indicator”).
  • Page 12: Separate Testing Of Sensors

    SILVER SATEL 1. Power on the detector. The LEDs will flash alternately red and green for 30 seconds to indicate warm-up of the detector. 2. When the LED stops flashing, check that moving within the detector coverage area will make the LED turn on red. Figure 15 shows the maximum coverage area of a detector installed at a height of 2.4 m.
  • Page 13 SATEL SILVER Dimensions ....................62 x 136 x 49 mm Weight ..........................126 g...
