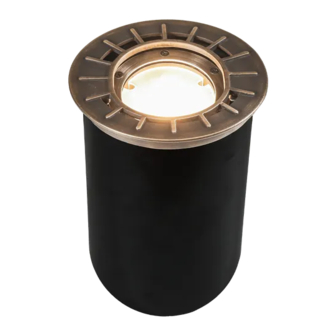

- Page 1 INSTALLATION INSTRUCTIONS VOLT Low Voltage Landscape Lighting ® Brass Bully Well Lights Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Brass Bully Well Lights ® Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
-
Page 3: Package Contents
Package Contents A. (1) Housing C. (5) Lock Screws B. (1) Luminaire Cover with Gasket Product Dimensions Brass Bully Open Brass Bully Grate 5” 4.5” 5.5” Brass Bully Shielded Brass Bully Beacon Brass Bully Turret VWL-555 customersupport@voltlighting.com • 813.978.3700... -
Page 4: Wire Connection
INSTALLATION INSTRUCTIONS VOLT Brass Bully Well Lights ® Dig Hole Dig hole in the ground. Make sure Luminaire there is approximately 3” space surrounding the luminaire housing for 3” 3” pea gravel or sand. 3” Hole Soil Wire Connection Strip two leads from luminaire pigtail. -
Page 5: Install Lamp
Install Lamp Insert MR16 lamp with correct wattage and type as marked on luminaire label. Lamp CAUTION: Do not exceed maximum wattage marked on luminaire label. NOTE: DO NOT touch lamp with bare hands. Use soft cloth to handle Socket lamp. - Page 6 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2015, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
