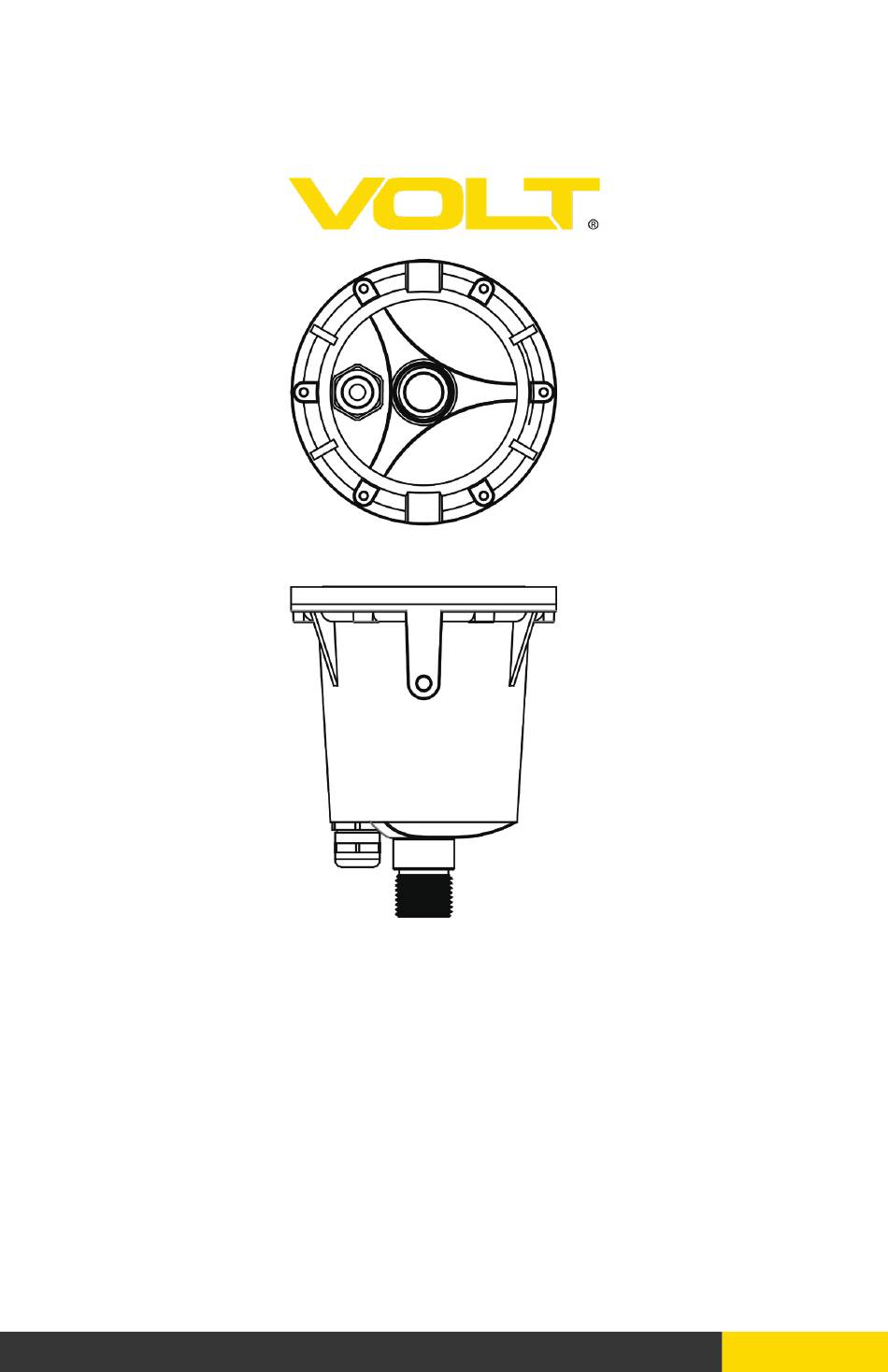

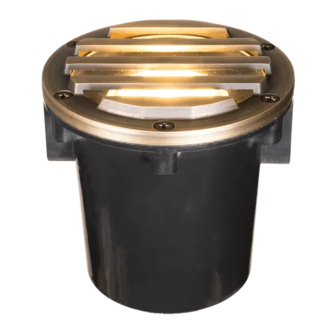

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Salty Dog MR16 In-Grade Light ® ITEM: VWL-703 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Salty Dog MR16 In-Grade Light - VWL-703 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture B. (1) Stake Parts Required (sold separately) A. (1) MR16 Lamp PRODUCT DIMENSIONS 4” 4.25” 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Salty Dog MR16 In-Grade Light - VWL-703 ® Remove Faceplate and Lens Unlock the screws and remove the Screw faceplate, gasket, and lens from the Faceplate housing. Gasket Lens Housing Install/Replace Lamp Insert lamp with correct wattage and type marked on fixture label.
- Page 5 Install Lens and Faceplate Screw Place the lens, gasket and faceplate back onto the housing. Secure them Faceplate with screws previously removed. Hand tighten until snug, then use a screwdriver to secure them in a star Gasket Lens Housing Install Stake Determine the desired location for Board mounting the fixture.
- Page 6 INSTALLATION INSTRUCTIONS VOLT Salty Dog MR16 In-Grade Light - VWL-703 ® Wire Connections Pigtail Wire Connectors Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect leads from luminaire to the main supply cable.
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
