INSTALLATION INSTRUCTIONS

VOLT

Low Voltage Landscape Lighting

VOLT

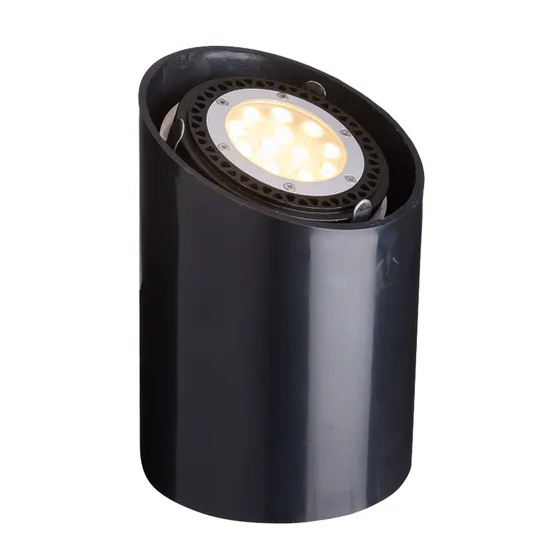

Ground Hog PVC PAR36 In-Ground Well Light

VWL-500-4-PBK

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

Specifications and product details subject to change without notice.

customersupport@voltlighting.com • 813.978.3700

Table of Contents

Need help?

Do you have a question about the VWL-500-4-PBK and is the answer not in the manual?

Page 1 ® VWL-500-4-PBK Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2018, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700...
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT Ground Hog PVC PAR 36 Well Light ® VWL-500-4-PBK Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
Page 3 Package Contents A. (1) Tube D. (2) Screws B. (1) Lamp Holder E. (2) Nuts C. (1) “U” bracket Parts Required B. (1) Debris Cover (glass + louvers) A. (1) PAR36 Lamp (sold separately) (sold separately, optional) Product Dimensions 6” 8.27”...
Page 4 INSTALLATION INSTRUCTIONS VOLT Ground Hog PAR 36 Well Light ® VWL-500-4-PBK Install Lamp Holder Attach the lamp holder onto the Lamp Holder “U” bracket by lining up the holes, then pass the screws through the holes and secure with the provided Screw nuts.
Page 5 Install Debris Cover (optional) Attach the debris cover onto the top end of the tube if necessary. Debris Cover NOTE: Debris cover is not for use with 50 watt halogen lamps. Tube Wire Connection Strip both leads from the luminaire pigtail.
