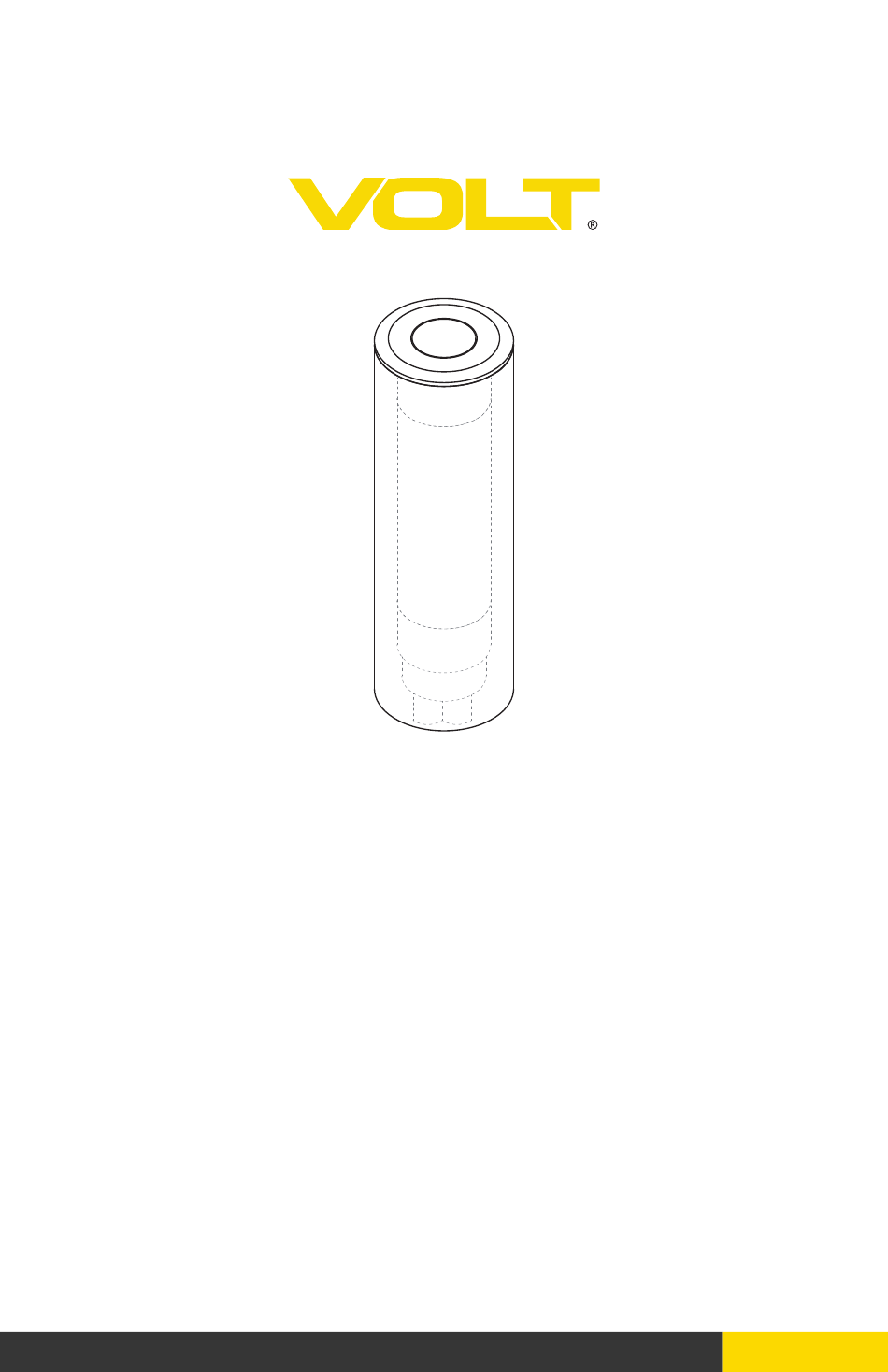

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Well Light ® ITEM: VWL-7127 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Well Light - VWL-7127 & AWL-5013 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body B. (1) PVC tube PRODUCT DIMENSIONS 0.75” 2.11” 2.17” DIG HOLE PVC Tube Dig a hole in the ground with approximately 3” of space Ground surrounding the PVC tube for pea gravel or sand. 3”...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Well Light - VWL-7127 & AWL-5013 ® WIRE CONNECTION Pass the fixture wire through the PVC tube. Place the Fixture Body fixture body into the PVC tube. PVC Tube Strip both leads from the fixture supply cable and the main supply cable.
