Engine Compartment Fuses - MG ZR Series Owner's Manual

Spare fuses
HB0677
A separate module containing spare fuses of varying values is
attached to one side of the main fuse box. The module contains:
• Five mini-size fuses suitable for the main fuse box.
• Four larger fuses suitable for the engine compartment fuse box.
• A double-ended fuse extraction tool, suitable for removing
both mini and larger-size fuses.
158
Fuse Replacement

ENGINE COMPARTMENT FUSES

25A 10A
5A
10A 15A 20A
30A
15A 20A

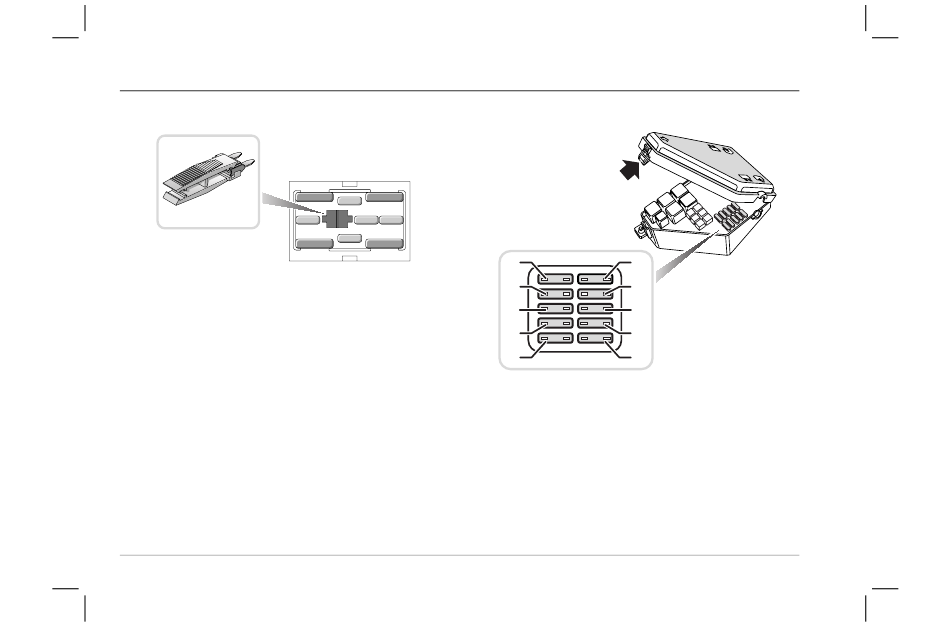

The fuse box is located on the left hand side of the engine
compartment. Press the catch (arrowed in illustration) to release
the cover.
Owners are advised against removing or replacing the
fusible links and relays identified on the underside of the
fuse box lid. Failure of any of these items should be
investigated by a qualified technician.
1 2
3 4
5 6
7 8
9 10
HB0113
