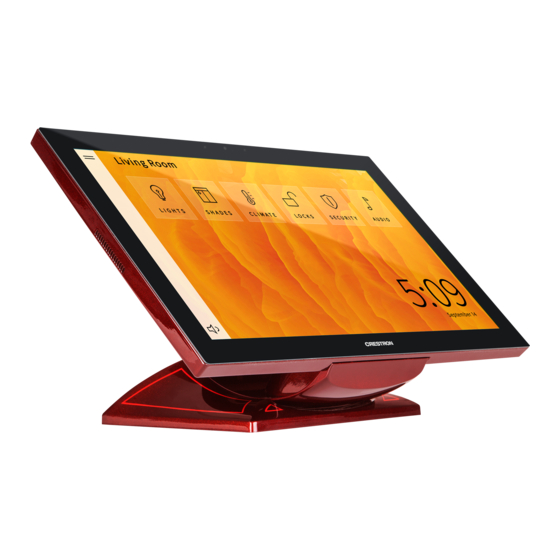

- Page 1 TS-1542/TS-1542-C 15.6" HD Touch Screen Supplemental Guide Crestron Electronics, Inc.
- Page 2 Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource. Crestron, the Crestron logo, DM and Rava are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
-
Page 3: Table Of Contents
Touch Test ....................10 Mic Test ....................11 LAN Test ....................11 Rava Test ....................12 RTSP Test ....................13 DM Preview (TS-1542-C Models Only) ............. 14 About ........................14 Save & Edit ......................15 Contents • i Supplemental Guide – DOC. 7824B... -
Page 5: Access The Setup Screens
If no project has been loaded or if an invalid project has been loaded, the touch screen defaults to the main setup screen. During regular operation of the TS-1542, there are two ways to access the setup screens: 1. Place a button on the project main page and assign the reserved join number (17242) that accesses the setup screens. -
Page 6: Configure The Ts-1542
Configure the TS-1542 Ethernet Setup On the TS-1542 Setup screen, tap Ethernet Setup to display the Ethernet Setup screen. Ethernet Setup Screen The Ethernet Setup screen displays the TS-1542’s MAC and IP addresses, subnet mask, default router, primary and secondary DNS, hostname, and domain. There are controls for turning DHCP on and off. - Page 7 Ethernet Setup - Static IPs screen. After new settings have been saved, tap Reboot on the Ethernet Setup - Static IPs screen to reboot the TS-1542 so that the new settings can take effect. If not making any changes, tap to return to the Ethernet Setup screen.
-
Page 8: Ip Table Setup
IP Table Setup On the TS-1542 Setup screen, tap IP Table Setup to display the Ethernet Setup - IP Table screen. Ethernet Setup - IP Table Screen The Ethernet Setup - IP Table screen displays up to four IP table settings, each of which has an Online indicator. - Page 9 On the Ethernet Setup - Edit IP Table Entry screen, tap Save Entry to save the current entry or Delete Entry to clear it. If not making any changes, tap to return to the Ethernet Setup - IP Table screen. TS-1542/TS-1542-C: 15.6˝ HD Touch Screen • 5 Supplemental Guide – DOC. 7824B...
-
Page 10: Audio Setup
TS-1542 Setup screen. Audio Setup On the TS-1542 Setup screen, tap Audio Setup to display the Audio Setup screen. Audio Setup Screen The Audio Setup screen provides controls for muting or unmuting the audio and for adjusting levels for the master volume, media volume, and beep volume. -
Page 11: Display Setup
Display Setup On the TS-1542 Setup screen, tap Display Setup to display the Display Setup screen. Display Setup Screen The Display Setup screen provides controls to adjust the screen’s LCD brightness, green key brightness, and red key brightness. Controls are also provided to enable using a hard key or proximity sensor to wake the LCD. -
Page 12: Standby Timeout
Standby Timeout On the TS-1542 Setup screen, tap Standby Timeout to display the Standby Timeout screen. Standby Timeout Screen The Standby Timeout screen provides controls to adjust standby timeout from 0 to 120 minutes. Tap Screen Saver Options to display the Standby - Screen Saver screen. -
Page 13: Diagnostics
Diagnostics On the TS-1542 Setup screen, tap Diagnostics to display the Diagnostics screen. Diagnostics Screen (TS-1542 Models Only) Diagnostics Screen (TS-1542-C Models Only) The Diagnostics screen displays the CPU temperature and the available memory, and it provides controls to open various test screens. The test screens are explained in the sections that follow. -
Page 14: Test Patterns
Touch Test Screen The touch test screen can be used to test the function of the screen. When a location button is tapped, its indicator on the screen lights. 10 • TS-1542/TS-1542-C: 15.6˝ HD Touch Screen Supplemental Guide – DOC. 7824B... -
Page 15: Mic Test
Diagnostics screen. LAN Test On the Diagnostics screen, tap LAN Test to display the Diagnostics - LAN screen. Diagnostics - LAN Screen TS-1542/TS-1542-C: 15.6˝ HD Touch Screen • 11 Supplemental Guide – DOC. 7824B... -
Page 16: Rava Test
The Diagnostics - Rava screen provides controls for testing the use of the Rava ® Intercom with the TS-1542. It can be used to call another touch screen that has Rava, and to test projects and settings. To place a call, dial the extension of the desired touch screen and tap Call. -
Page 17: Rtsp Test
Diagnostics screen. again to return to the TS-1542 Setup screen. TS-1542/TS-1542-C: 15.6˝ HD Touch Screen • 13 Supplemental Guide – DOC. 7824B... -
Page 18: Dm Preview (Ts-1542-C Models Only)
Diagnostics screen. again to return to the TS-1542 Setup screen. About On the TS-1542 Setup screen, tap About to display the About screen. About Screen 14 • TS-1542/TS-1542-C: 15.6˝ HD Touch Screen Supplemental Guide – DOC. 7824B... -
Page 19: Save & Edit
TS-1542 Setup screen. Save & Edit On the TS-1542 Setup screen, tap Save & Exit to save all settings, exit the setup screens, and return to the main project. TS-1542/TS-1542-C: 15.6˝ HD Touch Screen • 15... - Page 20 Crestron Electronics, Inc. Supplemental Guide – DOC. 7824B 15 Volvo Drive Rockleigh, NJ 07647 (2044930) Tel: 888.CRESTRON 05.16 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
