Crestron TSW-770R Quick Start Manual

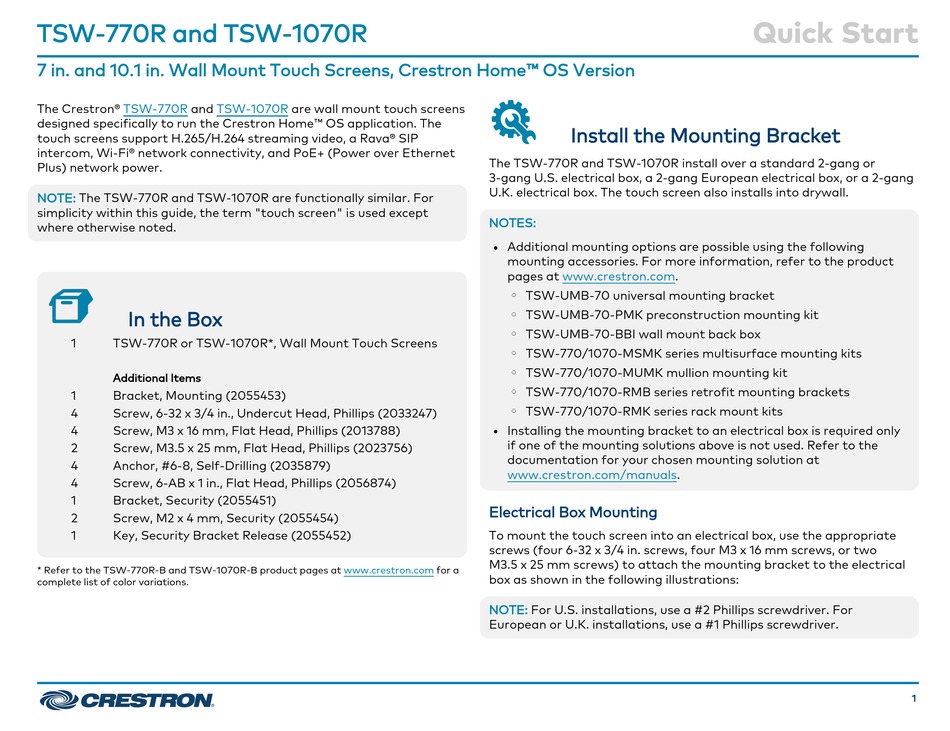

TSW-770R and TSW-1070R
7 in. and 10.1 in. Wall Mount Touch Screens, Crestron Home™ OS Version
The Crestron® TSW-770R and TSW-1070R
designed specifically to run the Crestron Home™ OS application. The
touch screens support H.265/H.264 streaming video, a Rava® SIP
intercom, Wi-Fi® network connectivity, and PoE+ (Power over Ethernet
Plus) network power.
NOTE: The TSW-770R and TSW-1070R are functionally similar. For
simplicity within this guide, the term "touch screen" is used except
where otherwise noted.
In the Box
1 TSW-770R or TSW-1070R*, Wall Mount Touch Screens
Additional Items
1 Bracket, Mounting (2055453)
4 Screw, 6-32 x 3/4 in., Undercut Head, Phillips (2033247)
4 Screw, M3 x 16 mm, Flat Head, Phillips (2013788)
2 Screw, M3.5 x 25 mm, Flat Head, Phillips (2023756)
4 Anchor, #6-8, Self-Drilling (2035879)
4 Screw, 6-AB x 1 in., Flat Head, Phillips (2056874)
1 Bracket, Security (2055451)
2 Screw, M2 x 4 mm, Security (2055454)
1 Key, Security Bracket Release (2055452)
* Refer to the TSW-770R-B and TSW-1070R-B product pages at
complete list of color variations.
are wall mount touch screens
www.crestron.com for a
Install the Mounting Bracket
The TSW-770R and TSW-1070R install over a standard 2-gang or
3-gang U.S. electrical box, a 2-gang European electrical box, or a 2-gang
U.K. electrical box. The touch screen also installs into drywall.
NOTES:
Additional mounting options are possible using the following
l
mounting accessories. For more information, refer to the product
pages at www.crestron.com.
TSW-UMB-70 universal mounting bracket
o
TSW-UMB-70-PMK preconstruction mounting kit
o
TSW-UMB-70-BBI wall mount back box
o
TSW-770/1070-MSMK series multisurface mounting kits
o
TSW-770/1070-MUMK mullion mounting kit
o
TSW-770/1070-RMB series retrofit mounting brackets
o
TSW-770/1070-RMK series rack mount kits
o
Installing the mounting bracket to an electrical box is required only
l
if one of the mounting solutions above is not used. Refer to the
documentation for your chosen mounting solution at
www.crestron.com/manuals.
Electrical Box Mounting
To mount the touch screen into an electrical box, use the appropriate
screws (four 6-32 x 3/4 in. screws, four M3 x 16 mm screws, or two
M3.5 x 25 mm screws) to attach the mounting bracket to the electrical
box as shown in the following illustrations:
NOTE: For U.S. installations, use a #2 Phillips screwdriver. For
European or U.K. installations, use a #1 Phillips screwdriver.
Quick Start
1
