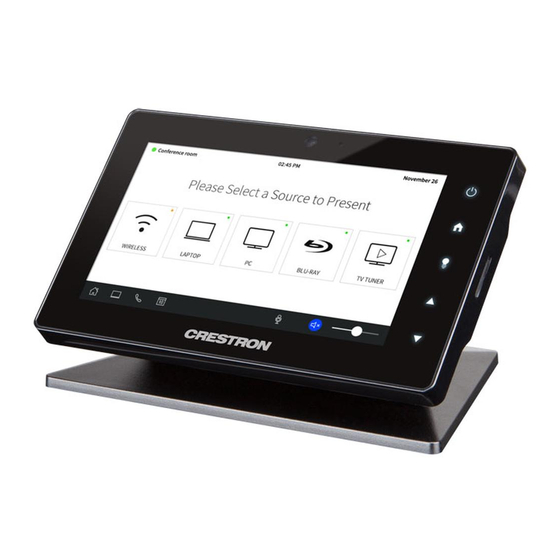

  • Page 1 TSW-560/TSW-760/TSW-1060 5", 7", and 10.1" Touch Screens Supplemental Guide Crestron Electronics, Inc.
  • Page 2 Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

  • Page 3: Table Of Contents

    Contents Access the Setup Screens Configure the Touch Screen Ethernet Setup ......................3 IP Table Setup ......................5 Audio Setup ......................7 Display Setup ......................8 Standby Timeout ....................10 Diagnostics ......................11 Test Patterns.................... 12 Touch Test ....................12 Mic Test ....................

  • Page 5: Access The Setup Screens

    TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens Access the Setup Screens The setup screens enable basic configuration prior to regular operation of the Crestron ® TSW-560, TSW-760, and TSW-1060 touch screens. To display the main setup screen, touch the display while applying power to the touch screen.
  • Page 6 The TSW-560/760/1060 Setup screen is displayed. TSW 760 Setup Screen The TSW-560/760/1060 Setup screen provides buttons for Ethernet setup, IP table setup, audio setup, display setup, standby timeout, and diagnostics. There is also a button to toggle system messages on or off, and an About button provides information about the touch screen.

  • Page 7: Configure The Touch Screen

    Configure the Touch Screen Ethernet Setup On the TSW-560/760/1060 Setup screen, tap Ethernet Setup to display the Ethernet Setup screen. Ethernet Setup Screen Use the Ethernet Setup screen to view the touch screen’s MAC and IP addresses, subnet mask, default router, primary and secondary DNS, hostname, and domain. This screen also contains a Link indicator to show the status of the Ethernet connection.
  • Page 8 If no changes are made, tap < BACK to return to the Ethernet Setup screen. • Tap < BACK again to return to the TSW-560/760/1060 Setup screen. 4 • TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens Supplemental Guide – DOC. 7927A...

  • Page 9: Ip Table Setup

    IP Table Setup On the TSW-560/760/1060 Setup screen, tap IP Table Setup to display the Ethernet Setup - IP Table screen. Ethernet Setup - IP Table Screen Use the Ethernet Setup - IP Table screen to view and edit up to four IP table settings, each of which has an Online indicator.
  • Page 10 Ethernet Setup - IP Table screen. Tap the text field below IP Address / Hostname to display the on-screen keyboard. On-Screen Keyboard 6 • TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens Supplemental Guide – DOC. 7927A...

  • Page 11: Audio Setup

    • Tap < BACK again to return to the TSW-560/760/1060 Setup screen. Audio Setup On the TSW-560/760/1060 Setup screen, tap Audio Setup to display the Audio Setup screen. Audio Setup Screen Use the Audio Setup screen to control the volume, media volume, and beep volume...

  • Page 12: Display Setup

    Tap < BACK to return to the TSW-560/760/1060 Setup screen. Display Setup On the TSW-560/760/1060 Setup screen, tap Display Setup to display the Display Setup screen. Display Setup Screen Use the Display Setup screen to adjust the LCD display and the key backlight settings.
  • Page 13 Tap Presets to access the Display High / Low Settings screen, which can be used to adjust touch screen auto-brightness threshold values. Display High / Low Settings Screen TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens • 9 Supplemental Guide – DOC. 7927A...

  • Page 14: Standby Timeout

    • Tap < BACK to return to the Display Setup screen. Standby Timeout On the TSW-560/760/1060 Setup screen, tap Standby Timeout to display the Standby Timeout screen. Standby Timeout Screen Use the Standby Timeout screen to adjust the touch screen's standby timeout duration.

  • Page 15: Diagnostics

    Tap < BACK to return to the Standby Timeout screen. Tap < BACK again to return to the TSW 560/760/1060 Setup screen. Diagnostics On the TSW-560/760/1060 Setup screen, tap Diagnostics to display the Diagnostics screen. Diagnostics Screen The Diagnostics screen displays the touch screen's CPU temperature and available memory, and it provides buttons to open various test screens.

  • Page 16: Test Patterns

    Tap < BACK to return to the Diagnostics screen. Touch Test On the Diagnostics screen, tap Touch Test to display the touch test screen. Touch Test Screen 12 • TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens Supplemental Guide – DOC. 7927A...

  • Page 17: Mic Test

    When the second playback is finished, the display automatically returns to the Diagnostics screen. TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens • 13 Supplemental Guide – DOC. 7927A...

  • Page 18: Lan Test

    Additionally, this screen provides controls to test the connection to the default router. Tap On to begin the test, and tap Off to end the test. Tap < BACK to return to the Diagnostics screen. 14 • TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens Supplemental Guide – DOC. 7927A...

  • Page 19: Keypad Test

    Tap < BACK to return to the Diagnostics screen. Rava Test On the Diagnostics screen, tap Rava Test to display the Rava Diagnostics screen. Rava Diagnostics Screen TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens • 15 Supplemental Guide – DOC. 7927A...

  • Page 20: Rtsp Test

    0 to 100%, and tap On or Off under Mute to mute or unmute the volume of the video stream. Tap < BACK to return to the Diagnostics screen. 16 • TSW-560/TSW-760/TSW-1060: 5", 7", and 10.1" Touch Screens Supplemental Guide – DOC. 7927A...

  • Page 21: About

    About On the TSW-560/760/1060 Setup screen, tap About to display the About screen. About Screen Use the About screen to view information about the touch screen, including the currently loaded firmware and the operating system versions. Tap < BACK to return to the TSW-560/760/1060 Setup screen.
  • Page 22 Crestron Electronics, Inc. Supplemental Guide – DOC. 7927A 15 Volvo Drive Rockleigh, NJ 07647 (2047265) Tel: 888.CRESTRON 12.16 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
