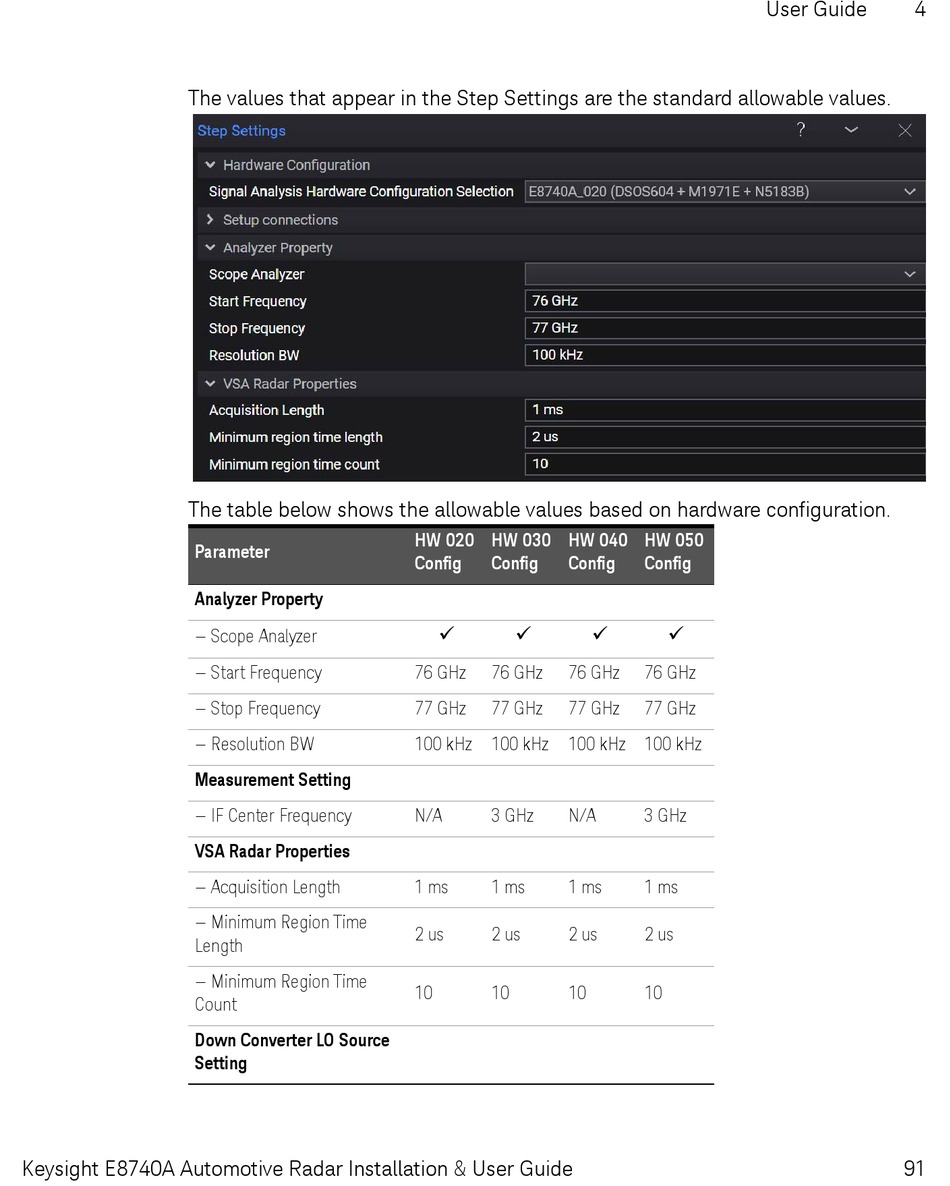

The values that appear in the Step Settings are the standard allowable values.
The table below shows the allowable values based on hardware configuration.
Parameter
Analyzer Property
— Scope Analyzer
— Start Frequency
— Stop Frequency
— Resolution BW
Measurement Setting
— IF Center Frequency
VSA Radar Properties
— Acquisition Length
— Minimum Region Time
Length
— Minimum Region Time
Count
Down Converter LO Source
Setting
Keysight E8740A Automotive Radar Installation & User Guide
HW 020 HW 030 HW 040
Config Config Config
  
76 GHz 76 GHz 76 GHz
77 GHz 77 GHz 77 GHz
100 kHz 100 kHz 100 kHz 100 kHz
N/A 3 GHz N/A
1 ms 1 ms 1 ms
2 us 2 us 2 us
10 10 10
User Guide
HW 050
Config

76 GHz
77 GHz
3 GHz
1 ms
2 us
10
4
