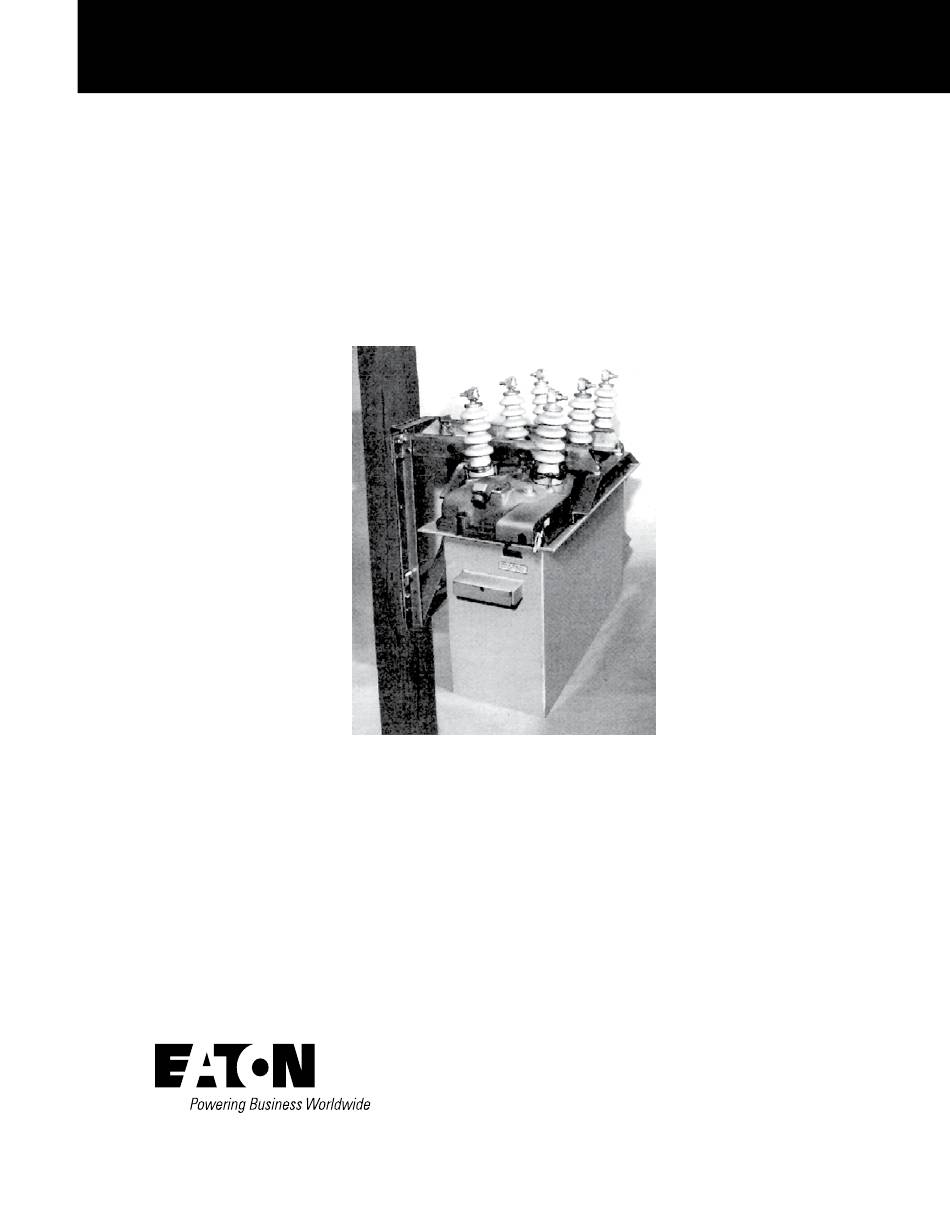

- Page 1 COOPER POWER Reclosers SERIES Effective January 2016 MN280039EN Supersedes S280-85-2 August 2004 KA146W5 single pole-mounting hanger; KA146W2 tank lifting windlass assembly and installation instructions For all W-group three-phase reclosers; Types GW and GWC sectionalizers; and Type VRV oil switch...
- Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other- wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to damage or...
-
Page 3: Table Of Contents
Installation of the windlass ............... 6 KA146W5 AND KA146W2 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280039EN... -
Page 4: Safety For Life
FOR LIFE FOR LIFE Eaton meets or exceeds all applicable industry standards relating to product safety in its Cooper Power™ series products. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing, and service. -
Page 5: Product Information
Introduction This manual contains assembly and installation instructions Quality standards for Eaton's Cooper Power™ series KA146W5 single pole- ISO 9001 Certified Quality Management System mounting hanger and the KA146W2 tank-lifting windlass. Description of operation Read this manual first... -
Page 6: Ka146W5 Single Pole-Mounting Frame
RX RXE Std. or 12-5/8 25-5/8 11-3/8 17”w/bcts RV, RVE Std. 25-1/16 11-3/8 RV, RVE Std. w/BCTs 17-1/2 25-1/8 11-3/8 Figure 1. Outline dimensions of KA146W5 pole- mounting hanger and KA146W2 tank-lifting windlass. KA146W5 AND KA146W2 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280039EN... -
Page 7: Assembling The Mounting Hanger
1/2-13 x 1-1/2 inch bolts, lockwashers, and nuts (14,15, and 16). Attach upper pole mount (9, with keyhole slot) and lower pole mount (10) to the vertical angles (7 and 8). Fasten with 14,15, and 16. KA146W5 AND KA146W2 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280039EN... -
Page 8: Parts List
K730101150200Q Hex bolt,1/2-13 x 1-1/2 in. K730101150150Q Lockwasher, 1/2-in. K900801050000Z Hex nut, 1/2-13 UNC-2B K880201113050Q Ground connector KP1596R Lifting decal KP310W Figure 2. Exploded view and parts list for KA146W5 pole-mounting hanger. KA146W5 AND KA146W2 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280039EN... -
Page 9: Parts List
Sheave assembly KA121 R Cable assembly KA592R3 Crank KP1031 R Hex bolt, 1/2—13 x 1-1/2 inch KP1354 Figure 3. Exploded view and parts list for KA146W2 tank-lifting windlass. KA146W5 AND KA146W2 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280039EN... -
Page 10: Installation Of The Windlass
Attach support angle (8) to bottom back portion of vertical angles on KA146W5 frame with 1/2-13 x 1-1/2 inch bolts (16), lockwashers (2), and nuts (3). Using 1-inch bolts (1 ) and flat washers (9), attach the upper sheave brackets (10 and 11) to the head casting flange at the tapped hole on each end of the recloser. - Page 11 This page is intentionally left blank. KA146W5 AND KA146W2 ASSEMBLY AND INSTALLATION INSTRUCTIONS MN280039EN...
- Page 12 United States Eaton.com/cooperpowerseries © 2016 Eaton All Rights Reserved Eaton is a registered trademark. Printed in USA For Eaton's Cooper Power series product Publication No. MN280039EN information call 1-877-277-4636 or visit: All trademarks are property www.eaton.com/cooperpowerseries. KA2048-097 Rev. 02 of their respective owners.
