Eaton 600 A 35 kV class Installation Instructions

Deadbreak Connectors
Catalog Data
CA650058EN
600 A 35 kV class insulated protective
cap
Effective May 2015
Supersedes 600-63 June 2000
COOPER POWER
Description
Eaton meets the full requirements of IEEE
Std 386™-2006 standard - Separable Insulated
Connector Systems, with its Cooper Power™
series 600 A, 35 kV Class insulated protective pap,
providing an insulated, fully shielded submersible
protection for energized 35 kV Class deadbreak
interfaces. The cap is required for temporary
or permanent installation on 35 kV deadbreak
bushings, junctions and other accessories having
interfaces that conform to IEEE Std 386™-2006
standard.
The cap design includes a semi conducting EPDM
insert for stress relief and high quality peroxide
cured EPDM insulation. The molded EPDM semi-
conducting shield maintains ground potential
on the cap's surface when the drain wire is
connected to a common ground.

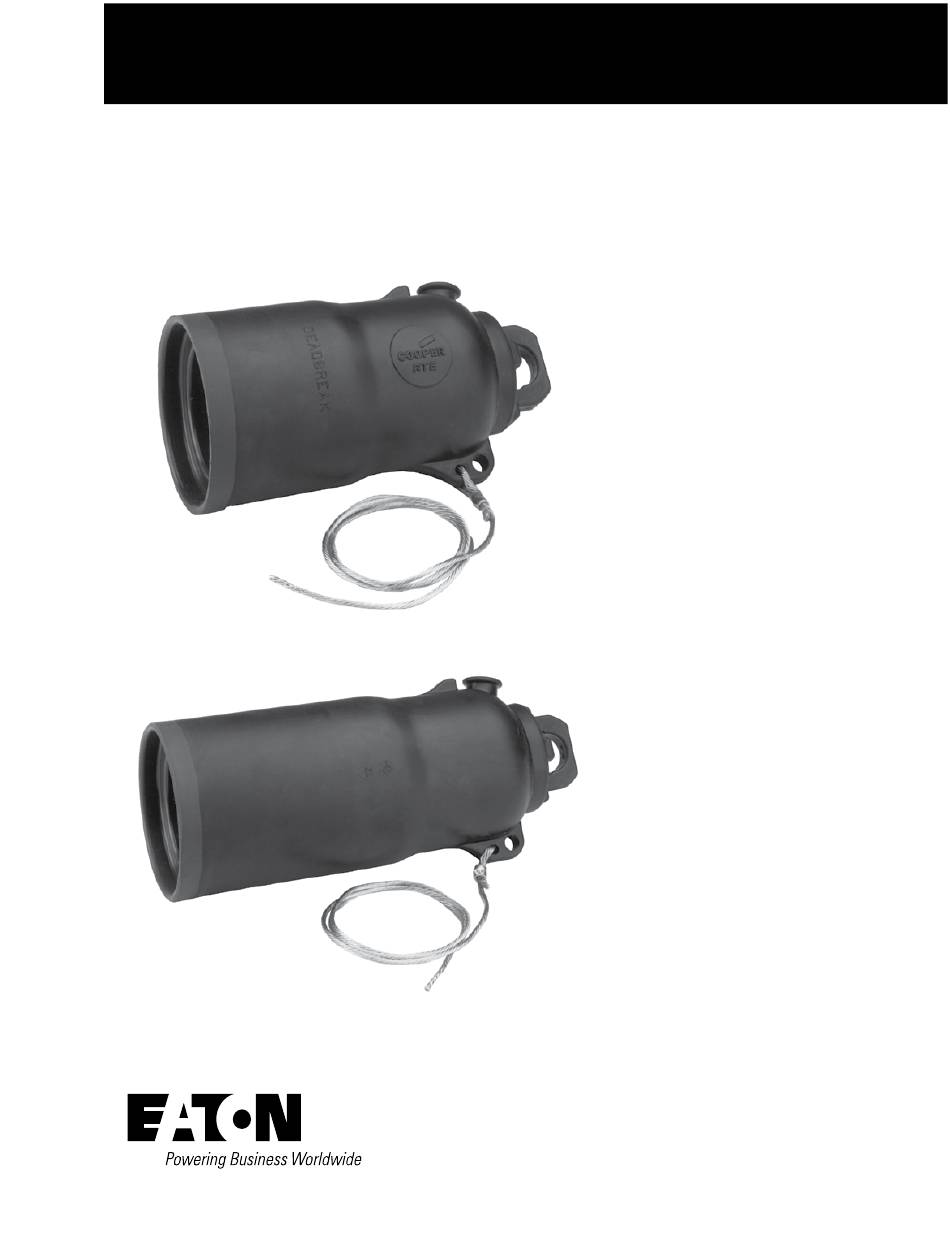

(Top image on left shows standard insulated
protective cap and bottom image shows U-OP™/
T-OP™ II connector insulated protective cap.)
Installation
No special tools are required. A hotstick tool is
used to place the protective cap on a de-energized
bushing. Refer to Service Information S600-63-1
600 A 15/25 and 35 kV Class Deadbreak Protective
Cap Installation Instructions for details.
Production tests
Tests are conducted in accordance with IEEE Std
386™-2006 standard.
ac 60 Hz 1 Minute Withstand
•
50 kV
•
Minimum Corona Voltage Level
•
26 kV
•
Tests conducted in accordance with Eaton
requirements:
Physical Inspection
•
Periodic Dissection
•
Periodic Fluoroscopic Analysis
•
