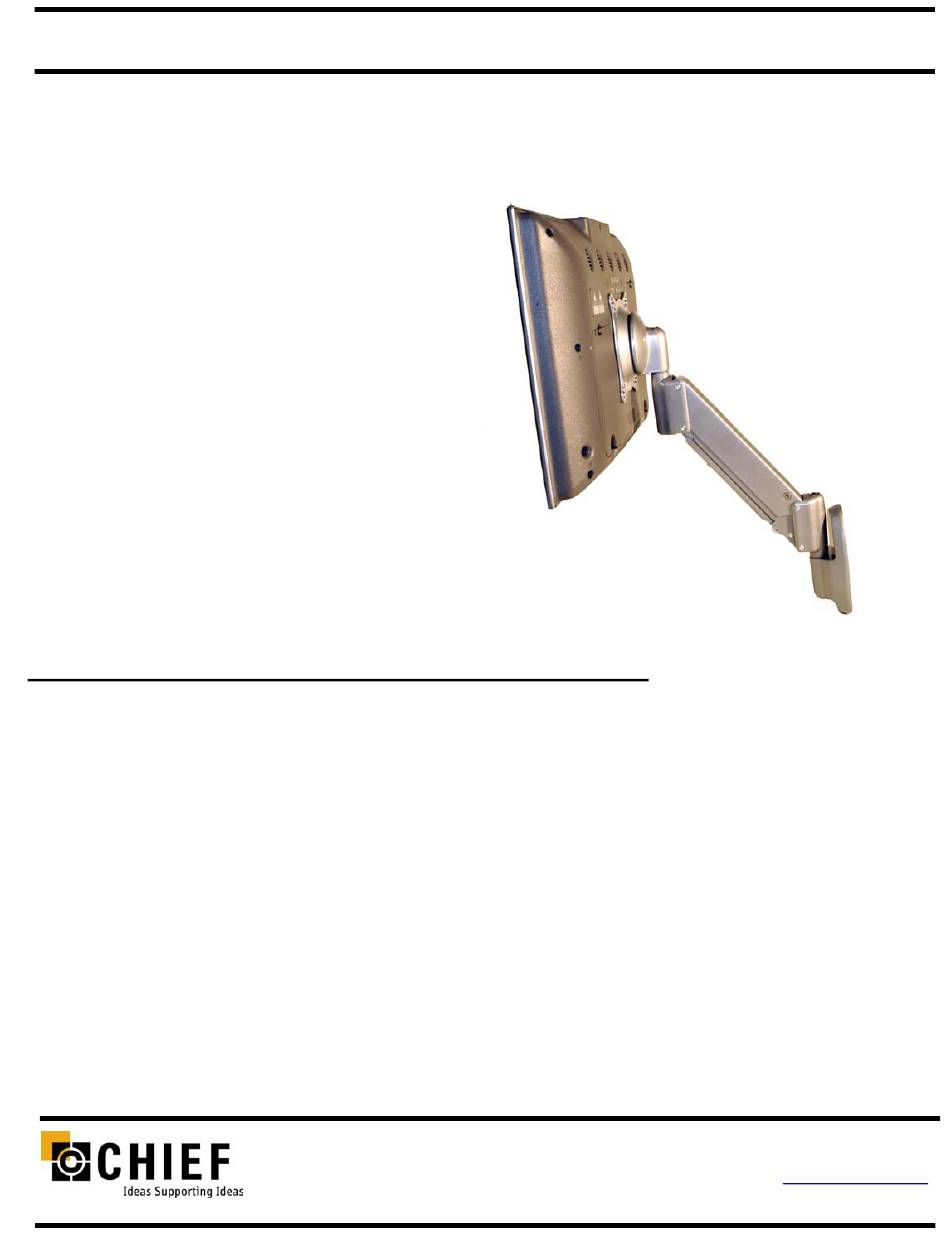

CHIEF FWV-110 Installation Instructions

Height-adjustable single swing arm wall mount
Hide thumbs Also See for FWV-110:

Advertisement

Quick Links

I N S T A L L A T I O N
Small Flat Panel
Height-Adjustable Single Swing Arm Wall Mount
(FWV-110)
The FWV is a sleek design providing a broad range
of viewing for Small Flat Panel Displays.
The FWV single swing arm desk mount easily rotates
laterally. The lift arm has 13 inches of vertical travel,
6-1/2" up from center and 6-1/2" down from center.
On standard installations, the FWV is wall-mounted.
The mount will safely hold a display weighing up to
25 lbs (11kg) maximum. The display can be up to 30
inches wide.
The FWV accommodates all VESA® 75mm/100mm
compliant displays.
BEFORE YOU BEGIN
CAUTION: To prevent damage to the mount, which could affect or void the Factory warranty, thoroughly
study all instructions and illustrations before you begin to install the mount brackets. Pay particular
attention to the "Important Warnings and Precautions" on Page 2.
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
8832-000035 Rev. A
2004 Chief Manufacturing
www.chiefmfg.com
07/04
