Summary of Contents for Plockmatic SR 85

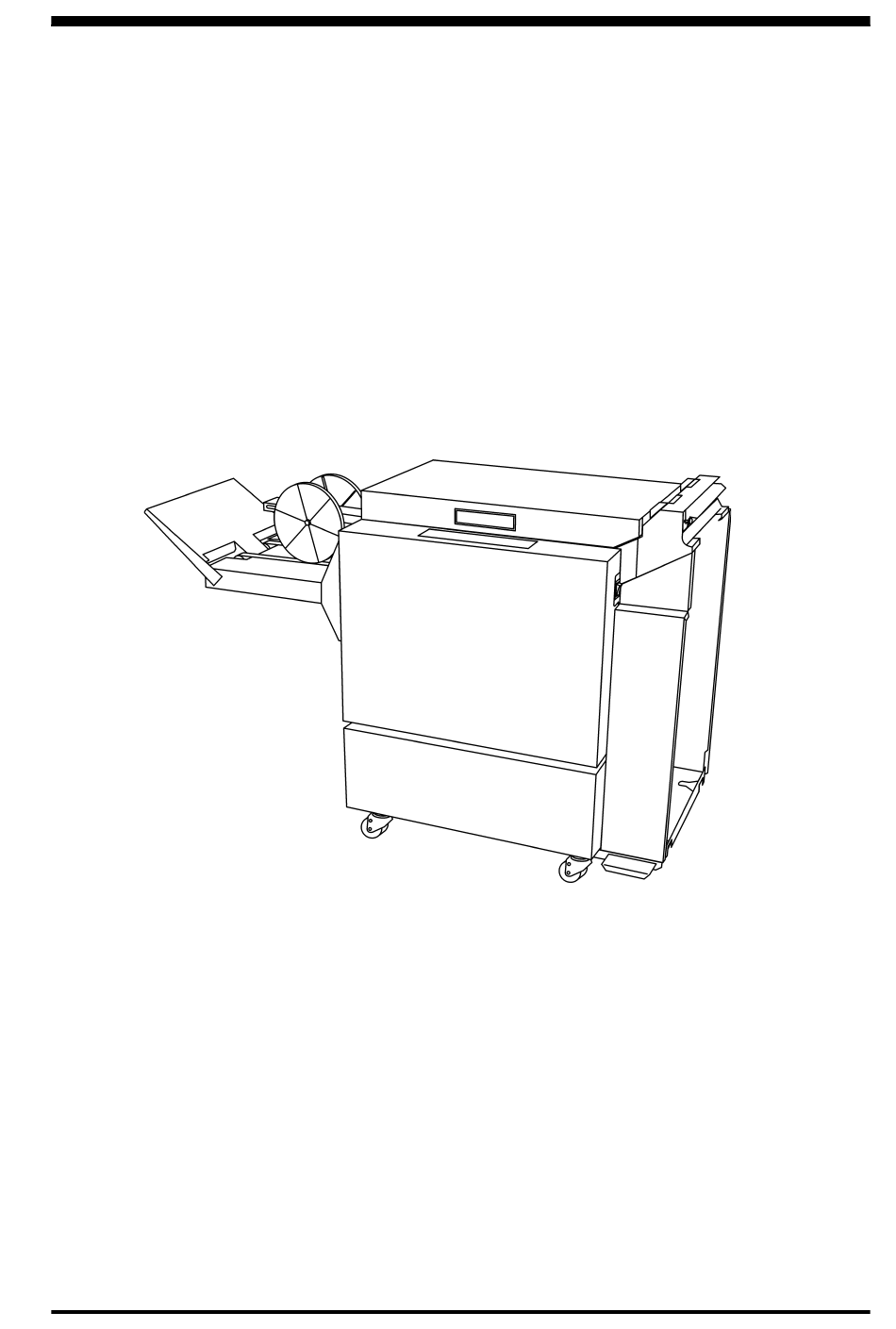

- Page 1 Operator Manual Bookletmaker SR 85 Februari 2001 Part No. 75656...
-
Page 2: Table Of Contents
Table of contents 1. Introduction Page 1.1 Operational safety 2. Getting to know the SR 85 2.1 Main components 2.2 Control panel 3. Operating and finishing modes 3.1 The operating modes 3.2 The finishing modes 3.3 Jam indications 4. Operator instructions 4.1 Docking / undocking the Bookletmaker... -
Page 3: Introduction
Always keep magnets and all devices with power cord from the power source receptacle strong magnetic field away from the machine. and call your customer service engineer to correct the problem. Bookletmaker SR 85 Operator Manual SR85 Op Man February 2001... -
Page 4: Getting To Know The Sr
2. Getting to know the SR 85 Take a few minutes to become familiar with the main components of the SR 85. 2.1 Main components Output wheels Top cover Belt stacker Infeed assembly Control panel Power switch Base Docking assembly Connection cable outlet Power cord receptacle incl. - Page 5 2.1 Main components, continues When operating the SR 85 you will required to move internal parts of the machine when making adjustments for the stapling and folding of your booklets, or when performing main- tenance activities. Take a few minutes to become familiar with these internal components.
-
Page 6: Control Panel
Manual / Auto mode button Fold mode indicator Program select button Run mode indicator Run / Adjustment button Adjustment mode indicator Length adjustment button, increase Paper jam indicator Length adjustment button, decrease Bookletmaker SR 85 Operator Manual SR 85 OP Man February 2001... -
Page 7: The Operating Modes
3. Operating and finishing modes The SR 85 can be operated in several combinations of modes. These modes are two operating modes and two finishing modes. In this section we will explain the different modes and how they are selected. -
Page 8: Jam Indications
Paper jam indicator The Paper jam indicator is illuminated when an operation in the SR 85 is not done within the preset time. Open the top cover and remove the jammed sets reachable, close the top cover and the SR 85 will automatically purge remaining jammed sets. -
Page 9: Docking / Undocking The Bookletmaker
Turn the Copier on, the shift tray will now go up to the upper position. The Copier is now in standard Copier mode. Note: It’s very important to turn on and off the machines in the correct sequence. Bookletmaker SR 85 Operator Manual SR85 Op Man February 2001... -
Page 10: Setting / Changing Paper Size
Close the top cover. Feed one test set into the SR 85. Open the top cover and adjust the sheet length so that the trail edge of the set just touches the backjogger. Close the top cover and push the Run / Adjustment button to exit the Adjustment mode. -
Page 11: Positioning The Output Wheels
To change the position of the Output wheels, do the following: Place the wheels on the conveyor belts . Shift position by turning the Output wheels while placed on the belts. Bookletmaker SR 85 Operator Manual SR85 Op Man February 2001... -
Page 12: Begin The Production
Select staple. Select Dup / Combine / Series. Select Book. Select Magazine. Send one A4 / A3 proof set from the Printer by pressing the ”proof button on the printer” Bookletmaker SR 85 Operator Manual SR 85 OP Man February 2001... -
Page 13: Replacing The Staple Cartridge
5.1 Replacing the staple cartridge You may remove and replace the staple cartridge while the stapler head is in place within the SR 85. The staple cartridges contain approximately 5000 staples per cartridge and can be replaced as often as necessary. -
Page 14: Replacing The Stapler Head / Clearing Stapler Jam
5.2 Replacing the stapler head / clearing stapler jam Switch the power switch to OFF (0) position. Open the Top cover on the SR 85. Disconnect the staple indication lead (1) from the socket. Hold the stapler head in place, press the release lever (2) to release the rear end of the stapler head and lift up this end. -
Page 15: Cleaning Of Fold Rollers
Repeat step 1 and 2 until rollers are cleaned (appro.. 2-3 times). 5.4 GFI function test and resetting WARNING: DO NOT use the SR 85 if the following test fails. No additional testing should be performed. Call for service. When testing the Ground Fault Interruptor (GFI ), the... -
Page 16: Problem Solving
Too many sheets / too heavy Check and correct according stock. to specifications section 7.1 Check/correct according to Set is incorrectly folded. Sheet length incorrectly 4.2. adjusted. Bookletmaker SR 85 Operator Manual SR 85 OP Man February 2001... -
Page 17: Specifications
Stacker full detection Total counter Length (stacker folded up) 873 mm 1378 mm Length (stacker folded down) Height 815 mm 595 mm Width Weight 91 kg Voltage 230/240V 50Hz 115V 60Hz Bookletmaker SR 85 Operator Manual SR85 Op Man February 2001...
