INSTALLATION INSTRUCTION SR85 TO MODEL 306/310
PURPOSE:
By means of a connection kit enable the SR85 booklet maker to work in line with the
Model 306/310 collator. The kit will not affect the normal operation of the SR85 to the
copier/printer.
Kit contents:
Description
Label, scale
Label, arrow
Microprocessor
Connection cable
Base to Collator
Installation instruction
Upgrade the software in SR85 if the software is below V5.02. Follow below procedure:
1.
Switch off main power.
2.
Remove rear cover.
3.
Remove the microprocessor by using an Extractor tool. Read Caution below.
4.

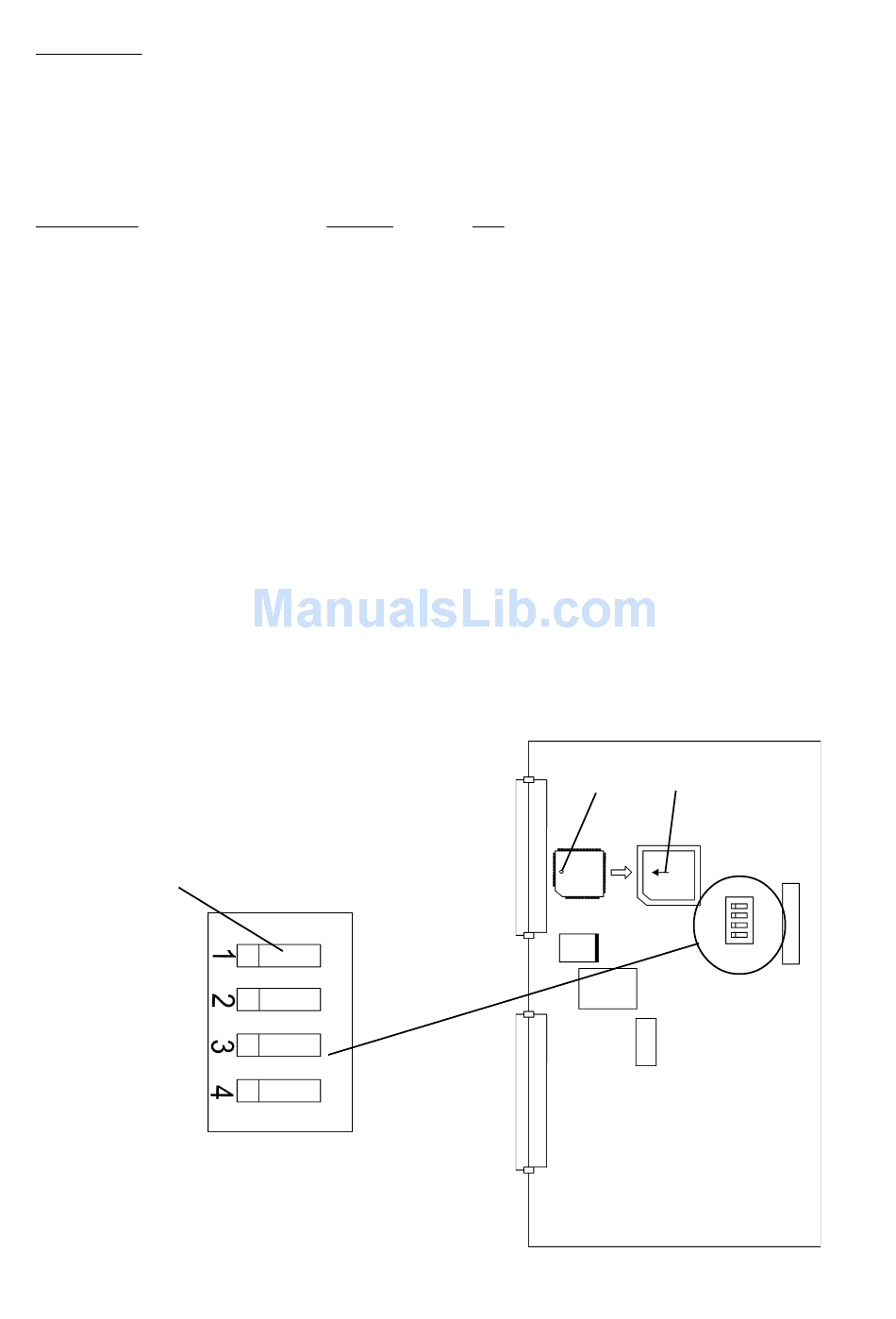

Insert the new microprocessor with the dot "A" positioned corresponding
to the arrow "B".
5.
To reset the EEprom, move the DIPswitch no. 1 on the controller PCB to the right
(right when facing the PCB).
6.
Switch on the main power.
Note: The ADJUST LED on the control panel is flashing.
7.
When the ADJUST LED stops flashing, switch off the main power.
8.
Move the DIP switch no.1 on the controller PCB to the left ( left when facing the PCB)
9.
Mount the rear cover.
10. Switch on the main power.
Caution: Always handle the circuit board in accordance
with electrostatic discharge procedures. The circuit
board and microprocessor are sensitive to ESD damage.
Normal mode < > Reset EEPROM
November 2001
Part no. 75952
Part no
75646
1 pce
75261
1 pce
761009-5.02
1 pce
760006
1 pce
900024
1 pce
75952
1 pce
1
Qty
A
(5)
T09149
B
