HIKOKI C 8FSHE Handling Instructions Manual page 51

(2) After adjustment, fi rmly tighten the wing nut and fasten the holder with the 6 mm knob bolt
(optional accessory). If the length of Height Adjustment Bolt 6 mm is insuffi cient, spread a
thin plate beneath. Make sure the end of Height Adjustment Bolt 6 mm does not protrude
from the holder.
CAUTION
When transporting or carrying the tool, do not grasp the holder.
○
There is the danger of the holder slipping out of the base. Grasp the handle
○
instead of the holder.
19. Stopper for precision cutting
(Stopper and holder are
optional accessory)
The stopper facilitates
continuous precision cutting in
lengths of 280 mm to 450 mm.
To install the stopper, attach
it to the holder with the 6 mm
knob bolt as shown in Fig. 20.
20. Confi rmation for use Crown
molding vise, Crown molding
Stopper (L) and (R) (Optional
accessory)
(1) Crown molding Stopper (L)
and (R) (optional accessories)
allow easier cuts of crown
molding without tilting the saw
blade. lnstall them in the base
both-sides side to be shown in
Fig. 21. After inserting
tighten the 6 mm knob bolts
to secure the Crown molding
Stoppers.
Stopper (Optional accessory)
Workpiece
6 mm Knob Bolt
(Optional accessory)
Crown molding
Vise Ass'y
(Optional accessory)
6 mm Knob Bolt
(Optional accessory)
6 mm Wing Nut
(Optional accessory)
51
Holder (Optional accessory)
6 mm Wing Nut
(Optional accessory)
Height Adjustment Bolt 6 mm
(Optional accessory)

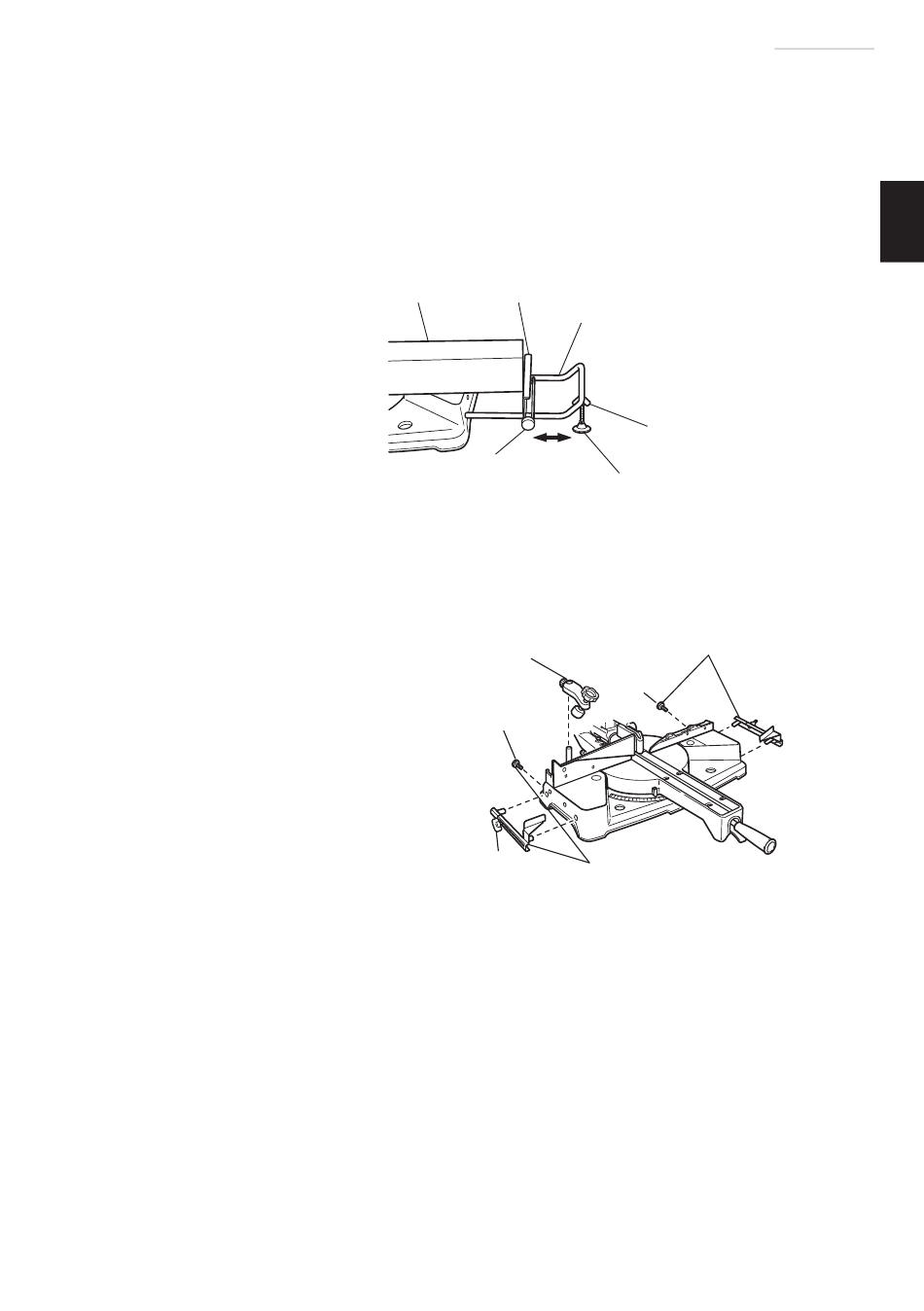

Fig. 20
Crown Molding
6 mm
Stopper (R)
Knob Bolt
(Optional accessory)
(Optional
accessory)
Crown Molding Stopper (L)
(Optional accessory)
Fig. 21
English
