HIKOKI C 8FSHE Handling Instructions Manual page 45

CAUTION
After adjusting the table insert for right angle cutting, the table insert will be cut to
some extent if it is used for bevel angle cutting.
When bevel cutting operation is required, adjust the table insert for bevel angle
cutting.
6. Confi rmation for use of sub fence (Optional
accessory)
In the case of direct angle cutting and right bevel
angle cutting, use the sub fence. Then, you can do
Left bevel angle cutting, Right bevel angle cutting
and Direct angle cutting and realize stable cutting
of the material with a wide back face.
WARNING

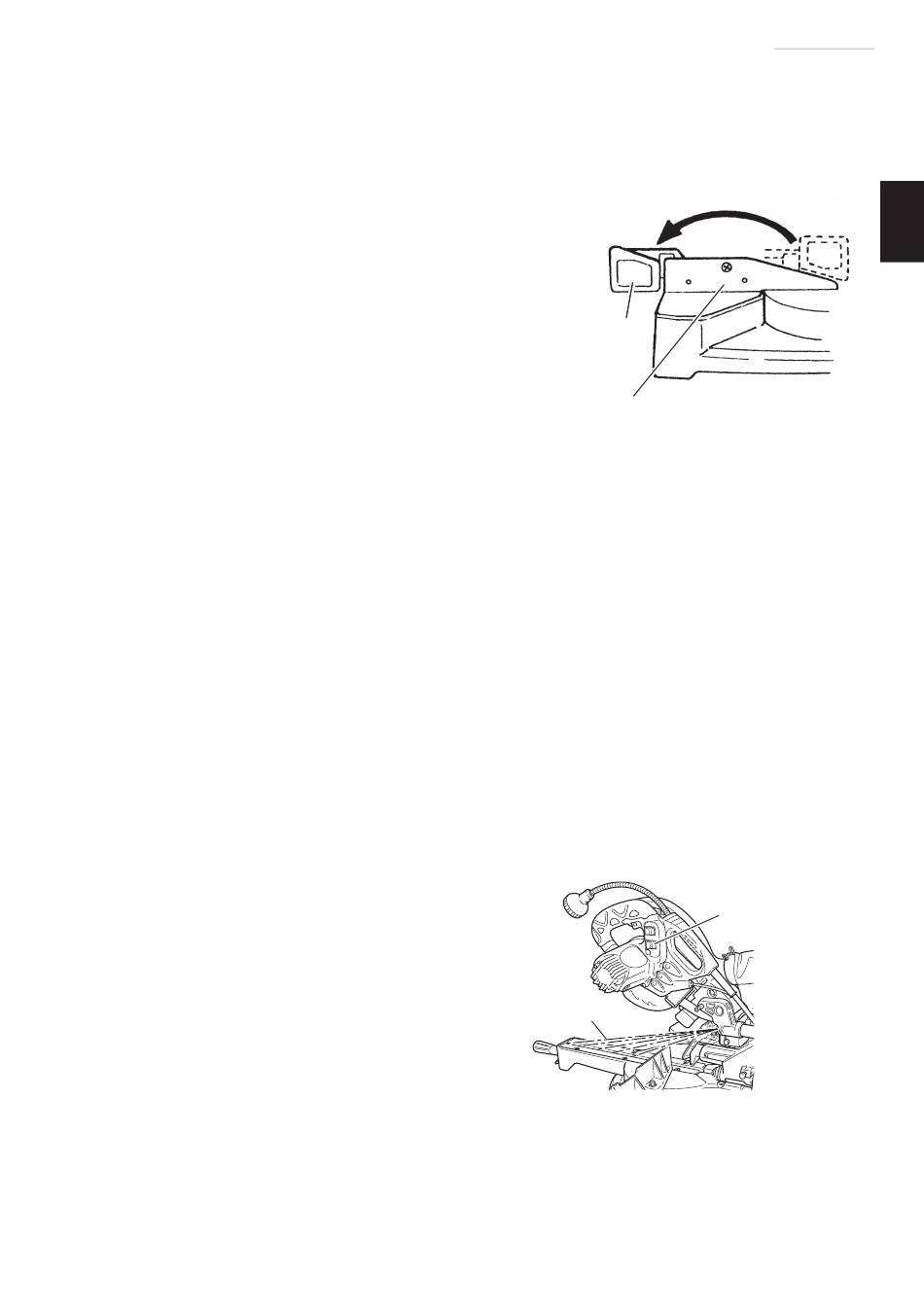

In the case of left bevel cutting, turn the sub
fence counterclockwise (Fig. 10). Unless it is turned counterclockwise, the main
body or saw blade may contact the sub fence, resulting in an injury.
7. Using an ink line
Upon lowering the motor section, the lower guard is raised and the saw blade appears.
Align the ink line with the saw blade.
CAUTION
Never lift the lower guard while the saw blade is rotating.
The sub fence will not only make contact and adversely aff ect cutting accuracy,
this could also result in damage to the guard.
8. Install the side handle (Fig. 1 on page 39)
Install the side handle that came enclosed with this unit.
9. Position adjustment of laser line (Only model
C8FSHE)
Ink lining can be easily made on this tool to the
laser marker. A switch lights up the laser marker
(Fig. 11).
Depending upon your cutting choice, the laser
line can be aligned with the left side of the cutting
width (saw blade) or the ink line on the right side.
The laser line is adjusted to the width of the saw
blade at the time of factory shipment. Adjust
the positions of the saw blade and the laser line
taking the following steps to suit the use of your
choice.
(1) Light up the laser marker and make a groove of about 5 mm deep on the workpiece that
is about 20 mm in height and 150 mm in width. Hold the grooved workpiece by vise as it is
and do not move it. For grooving work, refer to "21. Groove cutting procedures".
Sub Fence
Fence (B)
Laser line
45
English
Fig. 10
Switch
(For laser marker)
(Only C8FSHE)
Fig. 11
