− you read and follow these instructions,
− you read and follow all additional accompanying documents,
− observe the national accident-prevention regulations applicable at
the location where the device is being used.
The manufacturer accepts no responsibility for unauthorised
changes/alterations made to the WRK.

3 Scope of delivery

− WRK comprising holder, pick-up (dia. 4.5 mm), pick-up
− (dia.10 mm), tripod, reflow nozzles - large (33x33 mm, 27x27 mm,
24x24 mm, 20x20 mm) and small (18x18 mm, 15.5x15.5 mm,
12.5x12.5 mm, 10x10 mm)
− 3 suction inserts each for dia. 4.5 mm and dia. 10 mm
− 2 vacuum hoses with connecting nipple
− Operating Instructions for WRK desoldering set

4 Description of the WRK

The Weller WRK desoldering set optimises the desoldering process
and enables chip components to be accommodated precisely and
without being damaged during desoldering.
The release and accommodation procedure can be optimised for
each component size between 3 mm and 30 mm with the aid of the
different reflow nozzles.
The reflow nozzles are suitable for the use of the HAP 1 and
HAP 200 desoldering tools.

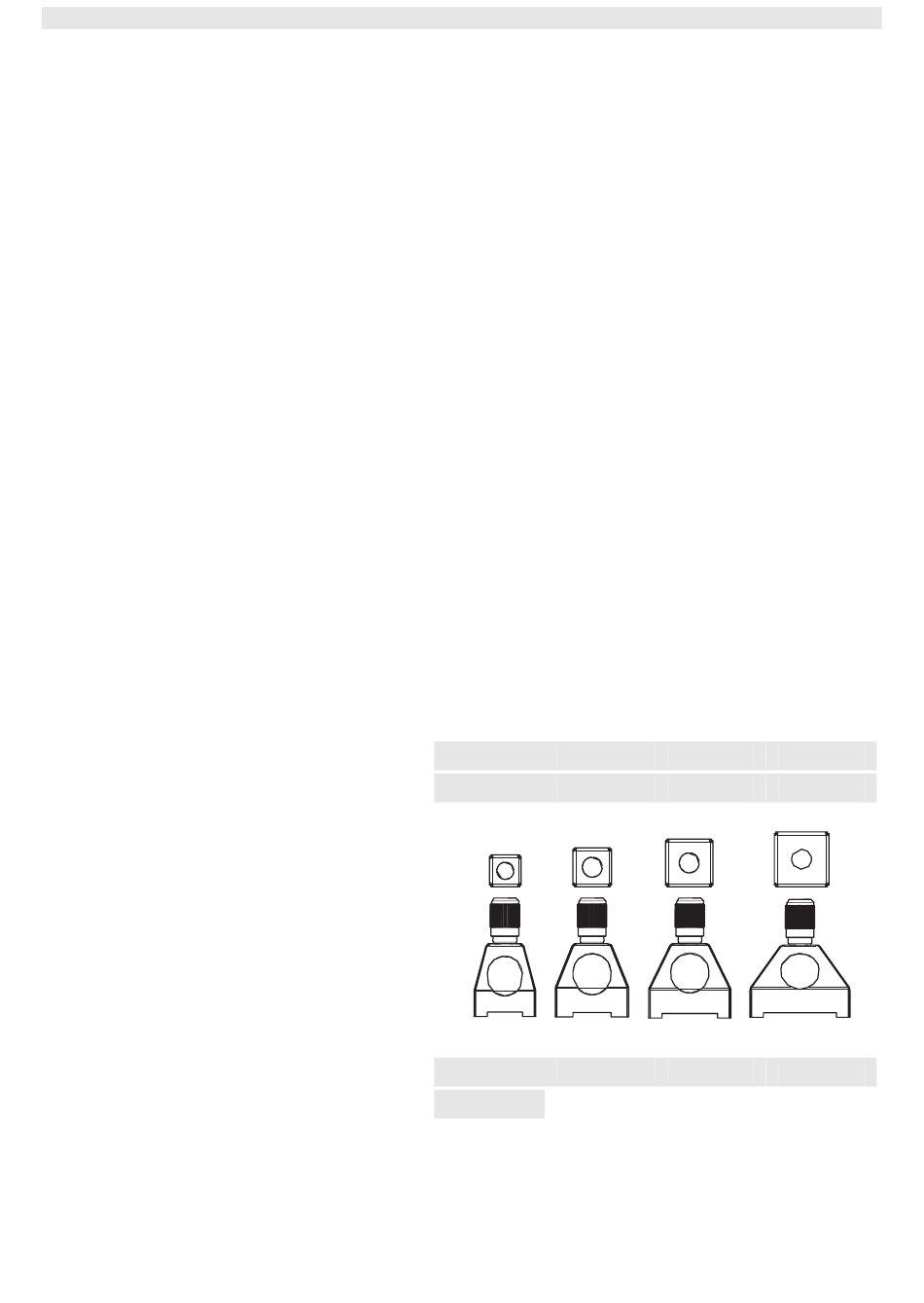

Suitable reflow nozzles for HAP 1 and HAP 200
HAP 200
HAP 1
Small
reflow
nozzles
Large
reflow
nozzles
HAP 200
HAP 1
WRK
