Summary of Contents for Weller WXR 3

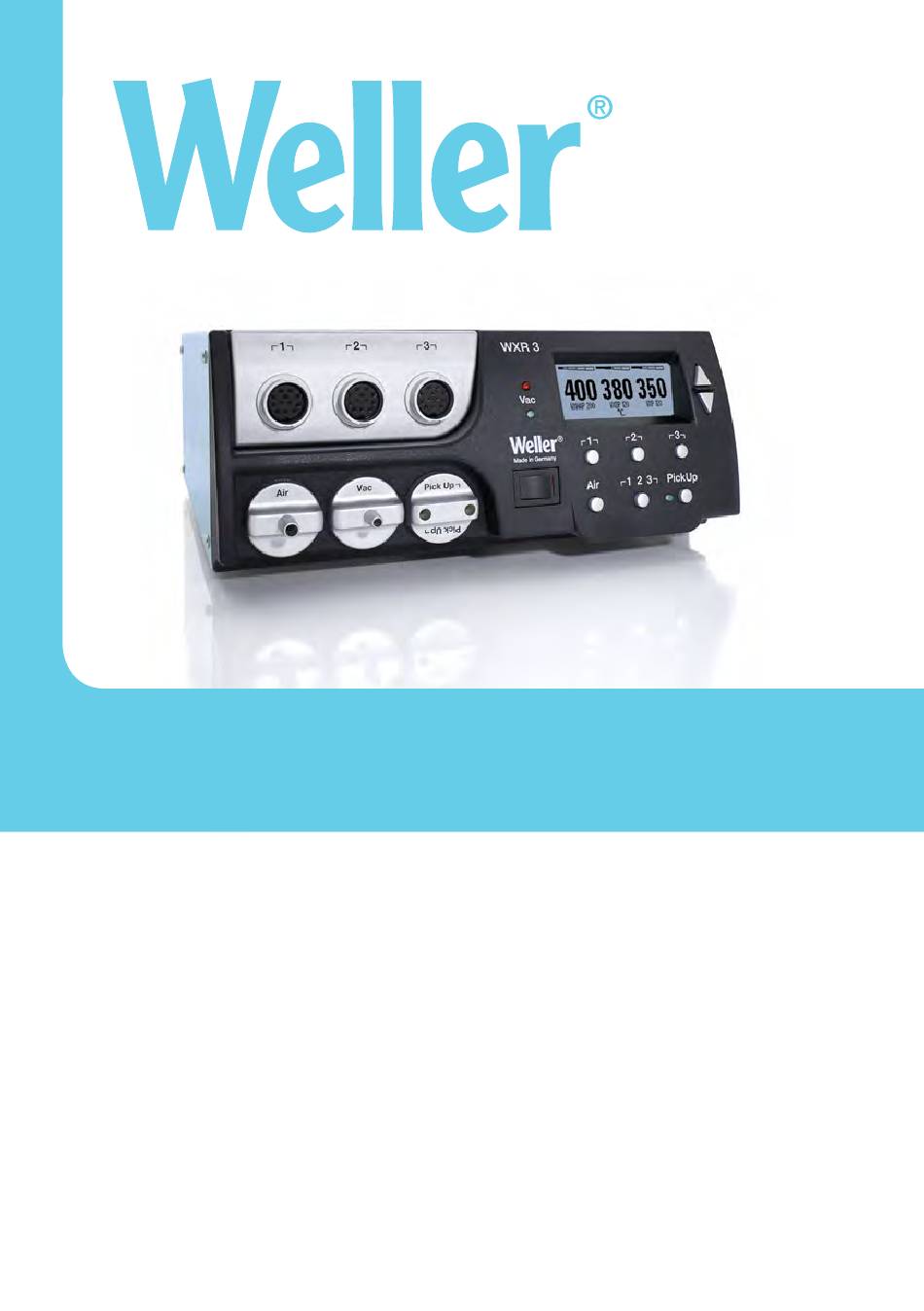

- Page 1 WXR 3 Translation of the original instructions...
- Page 2 COM 1 COM 2 Equipotential bonding Mains fuse USB port Interface...
- Page 3 Pick Up ¬ Pick Pick UP / Up 1 Up 2 DOWN Air connection nipple for hot air tools Vacuum connection Vacuum LED...
- Page 4 Actual temperature / nominal temperature Nominal temperature Fixed temperature Active channel...
- Page 5 COM 1 COM 2 Interface COM 1 / COM 2 WFV 60A Status indication DATA LOGGER (DL) active 2 CH 1, 2, 3 Switching output indicator...
-
Page 6: For Your Safety
If the device is faulty, active electrical conductors may be bare or the PE conductor may not be functional. Repairs must always be referred to a Weller-trained specialist. „ If the electrical tool‘s power supply cord is damaged, this must be replaced with a specially „... -
Page 7: Specified Conditions Of Use
„ Specified Conditions Of Use Only use the device indoors. Protect against mois- Supply unit for WELLER WX soldering tools. ture and direct sunlight. Use the repair station only for the purpose indica- ted in the operating instructions of soldering and Intended use of the soldering station/ desoldering desoldering under the conditions specified herein. -
Page 8: Starting Up The Device
Handling the soldering tips Prior to extended breaks between soldering work, „ switch off the soldering system or use the Weller Coat the selective and tinnable soldering tip with „ function to reduce the temperature when the solder when heating it up for the first time. -
Page 9: Equipotential Bonding
For your safety Equipotential bonding Four variants are possible by connecting the 3.5 mm jack socket differently: Hard-grounded supplied without plug. Equipotential with plug, equaliser at centre contact. bonding Floating with plug Soft-grounded with plug and soldered resistor. Ground- ed through selected resistor. Carrying out a firmware update Switch off station 1. -
Page 10: Parameter Menu
Parameter menu Standby Temp. Menu access Tool parameters The soldering tools have a usage detection device (sensor) in the handle which automatically initiates cooling to Standby temperature when the solde- ring tool is not in use. Standby time (temperature deactivation) Menu access Tool parameters When the soldering tool is not in use, the tem-... - Page 11 Parameter menu Perform. Mode Menu access Tool parameters The function determines the heating characteris- Option Description tics of the soldering tool to achieve the set tool standard adapted (medium) heating (factory temperature. setting) min. slow heating max. rapid heating Button lock WXHAP Menu access Tool parameters This function can be used to adjust the factory...
-
Page 12: Password (Lock Function)
Parameter menu Password (lock function) Menu access Station parameters After switching the lock function on, only the fixed Unlocking the soldering station temperature keys can be operated on the solde- 1. Call up the parameter menu. If the lock function ring station. - Page 13 Description RS232 Serial communication with PC or other compatible Weller devices (factory setting). The COM 1 port is configured as a foot switch input for activating the air flow. The COM 1 port is configured as a foot switch input for activating the vacuum.
-
Page 14: Technical Data
(10,75 x 9,25 x 4,02 inch) Weight ca. 6,7 kg Mains supply voltage 230 V, 50 Hz T0053500699 120 V, 60 Hz WXR 3 100 V 50/60 Hz T0053500199 Power consumption 420 W (600 W) Safety class I, antistatic housing... -
Page 15: Error Messages And Error Clearance
Error messages and error clearance Message/symptom Possible cause Remedial measures Tool has not been detected Check connection of tool to „ „ Display: „- - - device Tool defective „ Check connected tool „ No mains supply voltage Turn on mains power switch „... -
Page 16: Warranty
Original declaration of conformity Repair station WXR 3 Tool WXHAP 200, WXDP 120, WXDV 120, WXP 65, WXP 120, WXP 200, WXMP, WXMT, WXSB 200, WXHP 120 We hereby declare that the products described herein comply with the following guidelines:... - Page 17 Learn more about soldering tools and components we have.
