Weller WRK Operating Instructions Manual

Hide thumbs Also See for WRK:

Advertisement

WRK - Operating Instructions

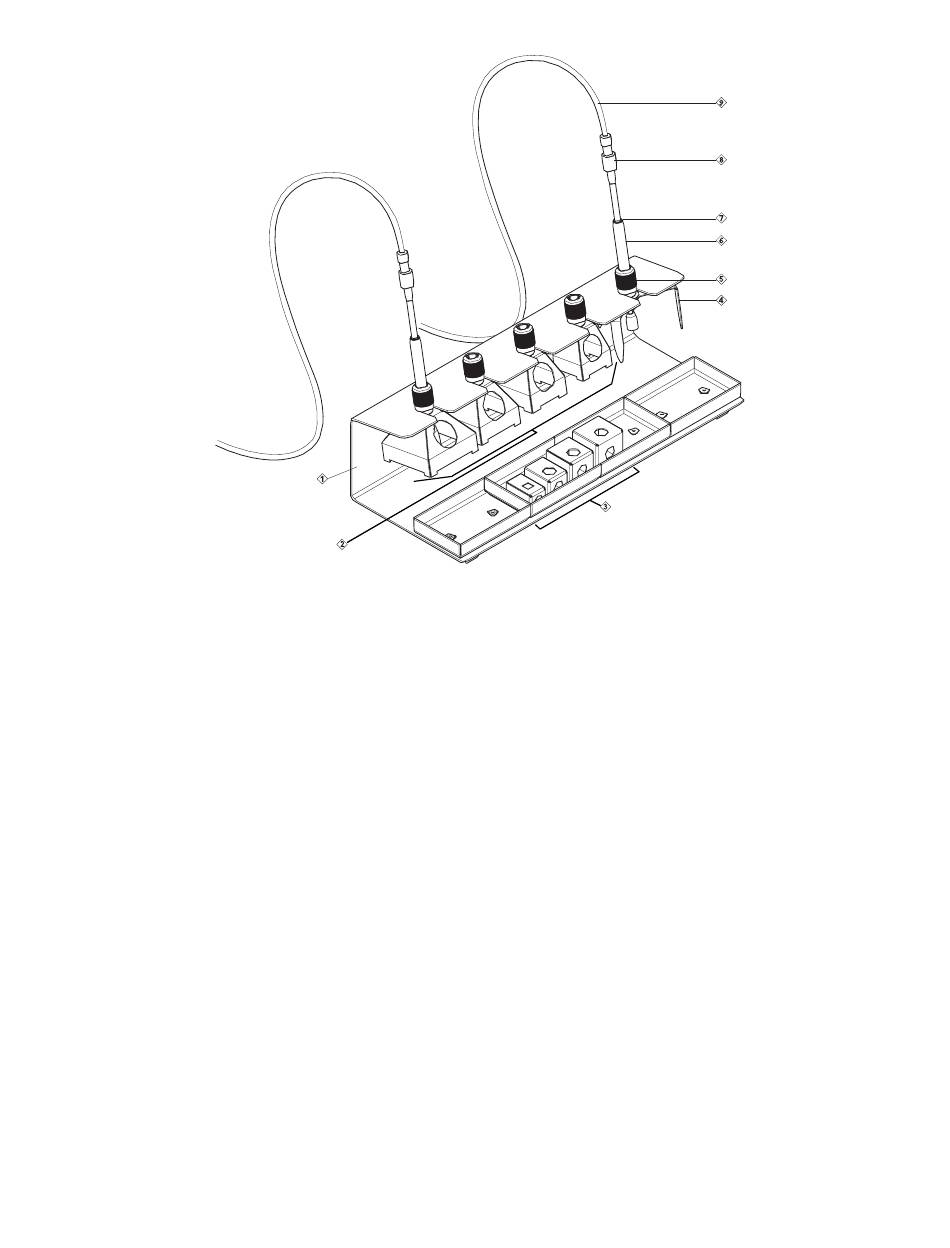

Device Overview
1
WRK Stand / Tool Holder
2
Reflow nozzle, large
3
Reflow nozzle, small
4
Tripod / Stand-Off
5
Clamping sleeve
6
Vacuum pick-up tool
7
Marker ring (Indicates Component Height)
8
Vacuum tube connector
9
Vacuum tube
10 Vacuum Cup with Heat Shield
1-9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WRK and is the answer not in the manual?

Questions and answers

Summary of Contents for Weller WRK

  • Page 1 WRK - Operating Instructions Device Overview WRK Stand / Tool Holder Reflow nozzle, large Reflow nozzle, small Tripod / Stand-Off Clamping sleeve Vacuum pick-up tool Marker ring (Indicates Component Height) Vacuum tube connector Vacuum tube 10 Vacuum Cup with Heat Shield...
  • Page 2: Table Of Contents

    − Please read the Operating Instructions of your Control Unit and Safety Information booklet 2 Cautions and Warnings! Please read the WRK Operating Instructions and the attached Safety Information carefully prior to initial operation. Failure to observe the safety warnings may result in accident, injury, or risk to health.
  • Page 3: Description Of The Wrk

    Always wear eye protection when working with soldering and desoldering applications. 3 Description of the WRK The Weller WRK Removal Kit optimizes the rework process and enables SMT components to be removed precisely and without being damaged. The removal procedure can be optimized for each component size between .120"...
  • Page 4 Note Also read and observe the Operating Instructions of your control unit. 1. Carefully unpack the WRK. 2. Assemble reflow nozzles (2, 3), tripod (4) and pick-up tool (6) in holder (1). 3. Switch off the control unit. 4. Connect the hot-air pencil (HAP) with air hose to the "Air“ outlet of the control unit and insert with the attachment plug in the correct connection socket of the repair station.
  • Page 5: Using The Wrk

    5 Using the WRK WRK operation during the component removal procedure is divided into 3 steps: 1. Positioning the Vacuum Pick-up tool 2. Preparing for Component Pick-up 3. Reflow and Removal of the component 5.1 Positioning the Pick-up The component to be reworked must be at least .08 " , (2 mm) smaller than the diameter of the reflow nozzle used, otherwise the component may be damaged.
  • Page 6 Preparing for Component Pick-up Note Pictures are for illustration use only. Vacuum hose must be connected and activated for the vacuum pick-up tool to operate. 1. Carefully position the vacuum pick-up tool with mounted reflow nozzle, (A2) or with the tripod, (B2) over the component. 2.
  • Page 7: Accessories

    • 3 suction inserts each for .180 " (4.5 mm) diameter and .400 " (10 mm) diameter • 2 vacuum hoses with connector • Operating Instructions for WRK removal kit 8 Disposal Dispose of replaced equipment parts, filters or old devices in...
  • Page 8: Warranty

    9 Warranty Cooper Hand Tools warrants to the original purchaser and any subsequent owner (“Buyer”) that Weller soldering and desoldering products will be free from defects in material and workmanship for a period of one year from date of purchase, provided that no warranty is made with respect to products which have been altered, subjected to abuse or improperly used, installed or repaired.
