PRODUCT INSTALLATION INSTRUCTIONS Dispensing Towers

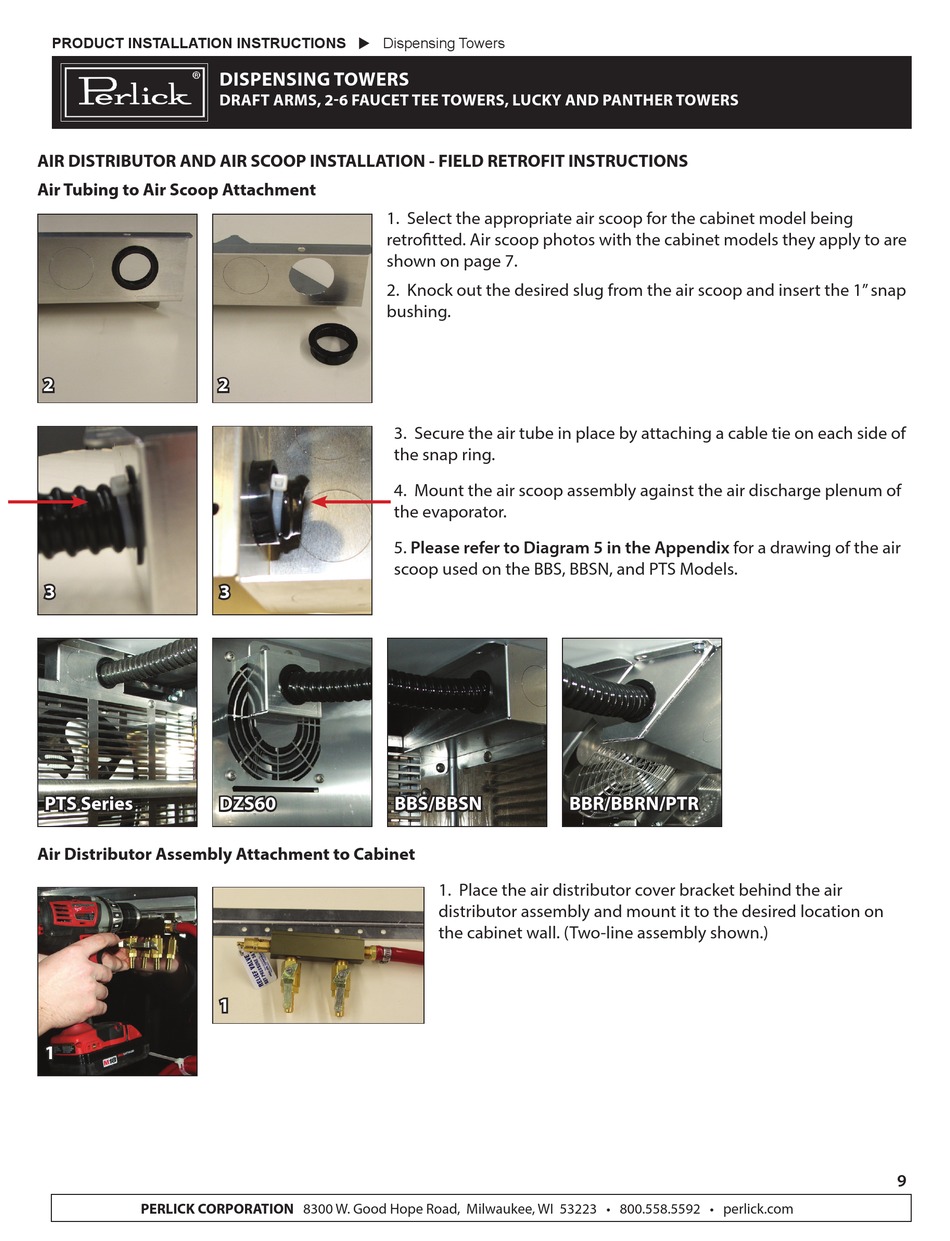

AIR DISTRIBUTOR AND AIR SCOOP INSTALLATION - FIELD RETROFIT INSTRUCTIONS
Air Tubing to Air Scoop Attachment
2
3
PTS Series
Air Distributor Assembly Attachment to Cabinet
1
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
DISPENSING TOWERS
DRAFT ARMS, 2-6 FAUCET TEE TOWERS, LUCKY AND PANTHER TOWERS
1. Select the appropriate air scoop for the cabinet model being
retrofitted. Air scoop photos with the cabinet models they apply to are
shown on page 7.
2. Knock out the desired slug from the air scoop and insert the 1" snap
bushing.
2
3. Secure the air tube in place by attaching a cable tie on each side of
the snap ring.
4. Mount the air scoop assembly against the air discharge plenum of
the evaporator.
5. Please refer to Diagram 5 in the Appendix for a drawing of the air
scoop used on the BBS, BBSN, and PTS Models.
3
DZS60
BBS/BBSN
1
BBR/BBRN/PTR
1. Place the air distributor cover bracket behind the air
distributor assembly and mount it to the desired location on
the cabinet wall. (Two-line assembly shown.)
9
