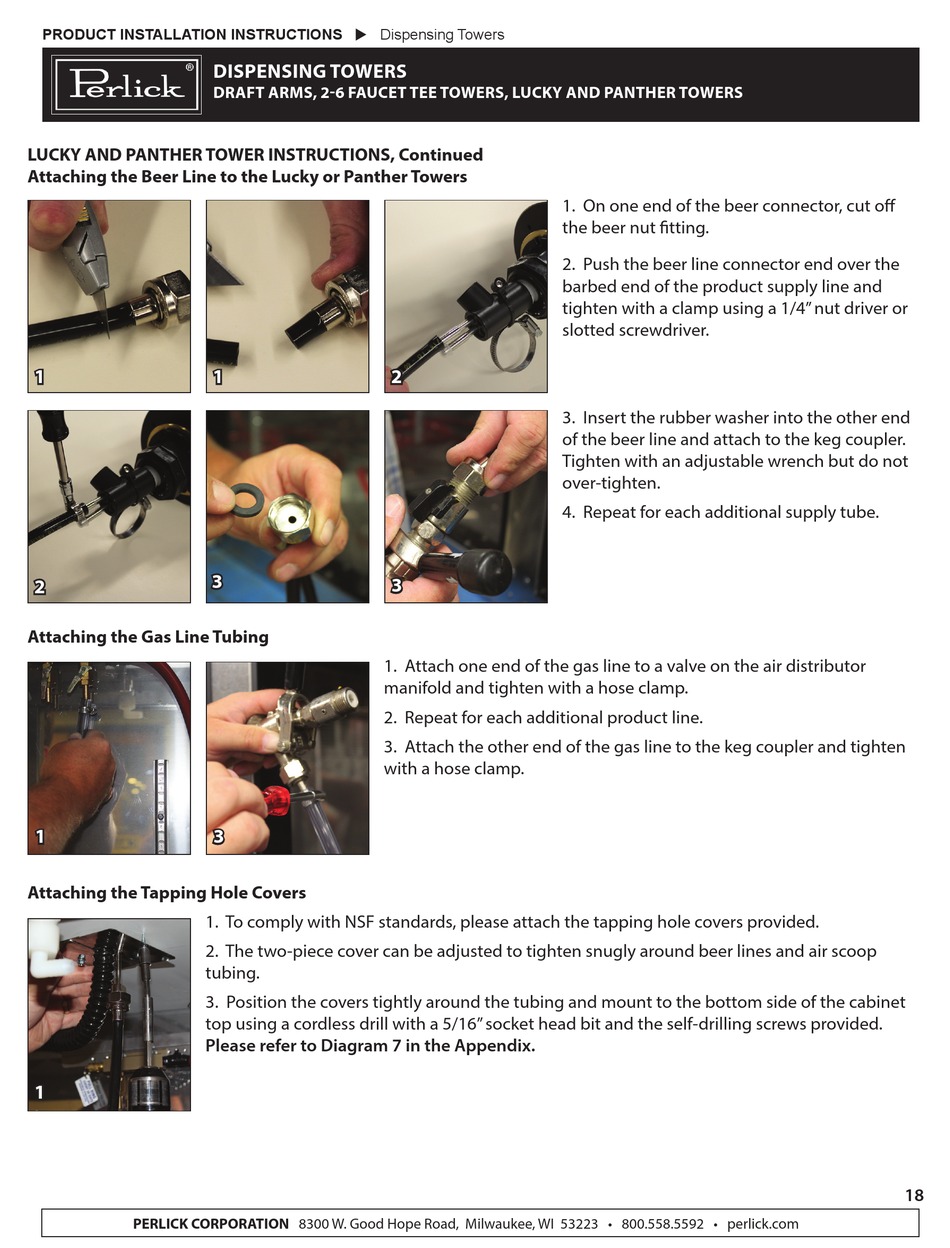

LUCKY AND PANTHER TOWER INSTRUCTIONS, Continued

Attaching the Beer Line to the Lucky or Panther Towers

1
2

Attaching the Gas Line Tubing

1

Attaching the Tapping Hole Covers

1. To comply with NSF standards, please attach the tapping hole covers provided.
2. The two-piece cover can be adjusted to tighten snugly around beer lines and air scoop
tubing.
3. Position the covers tightly around the tubing and mount to the bottom side of the cabinet
top using a cordless drill with a 5/16" socket head bit and the self-drilling screws provided.
Please refer to Diagram 7 in the Appendix.
1
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
DISPENSING TOWERS
DRAFT ARMS, 2-6 FAUCET TEE TOWERS, LUCKY AND PANTHER TOWERS
1 2
3
1. Attach one end of the gas line to a valve on the air distributor
manifold and tighten with a hose clamp.
2. Repeat for each additional product line.
3. Attach the other end of the gas line to the keg coupler and tighten
with a hose clamp.
3
1. On one end of the beer connector, cut off
the beer nut fitting.
2. Push the beer line connector end over the
barbed end of the product supply line and
tighten with a clamp using a 1/4" nut driver or
slotted screwdriver.
3. Insert the rubber washer into the other end
of the beer line and attach to the keg coupler.
Tighten with an adjustable wrench but do not
over-tighten.
4. Repeat for each additional supply tube.
3
18
