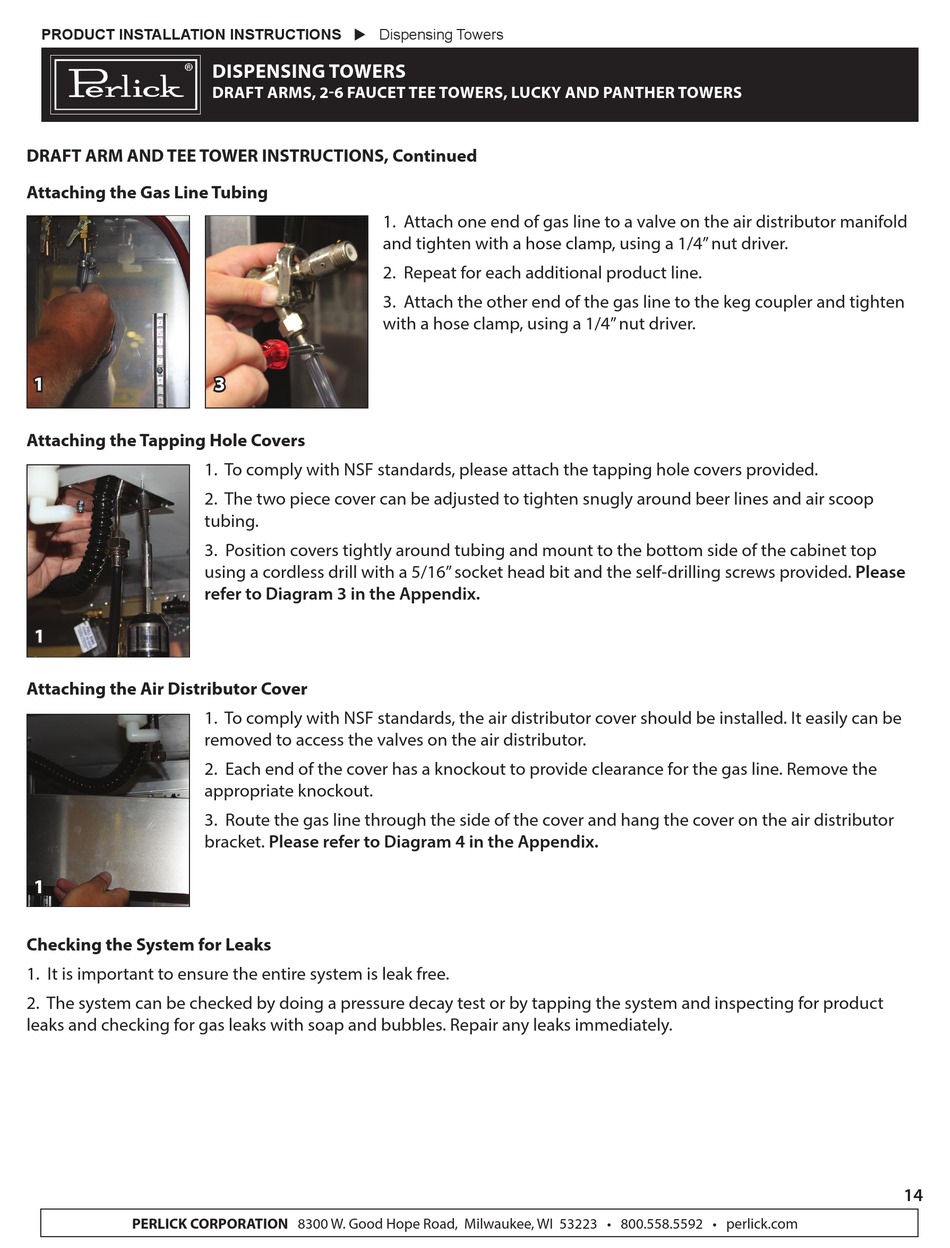

PRODUCT INSTALLATION INSTRUCTIONS  Dispensing Towers
DRAFT ARM AND TEE TOWER INSTRUCTIONS, Continued

Attaching the Gas Line Tubing

1

Attaching the Tapping Hole Covers

1. To comply with NSF standards, please attach the tapping hole covers provided.
2. The two piece cover can be adjusted to tighten snugly around beer lines and air scoop
tubing.
3. Position covers tightly around tubing and mount to the bottom side of the cabinet top
using a cordless drill with a 5/16" socket head bit and the self-drilling screws provided. Please
refer to Diagram 3 in the Appendix.
1

Attaching the Air Distributor Cover

1. To comply with NSF standards, the air distributor cover should be installed. It easily can be
removed to access the valves on the air distributor.
2. Each end of the cover has a knockout to provide clearance for the gas line. Remove the
appropriate knockout.
3. Route the gas line through the side of the cover and hang the cover on the air distributor
bracket. Please refer to Diagram 4 in the Appendix.
1

Checking the System for Leaks

1. It is important to ensure the entire system is leak free.
2. The system can be checked by doing a pressure decay test or by tapping the system and inspecting for product
leaks and checking for gas leaks with soap and bubbles. Repair any leaks immediately.
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
DISPENSING TOWERS
DRAFT ARMS, 2-6 FAUCET TEE TOWERS, LUCKY AND PANTHER TOWERS
1. Attach one end of gas line to a valve on the air distributor manifold
and tighten with a hose clamp, using a 1/4" nut driver.
2. Repeat for each additional product line.
3. Attach the other end of the gas line to the keg coupler and tighten
with a hose clamp, using a 1/4" nut driver.
