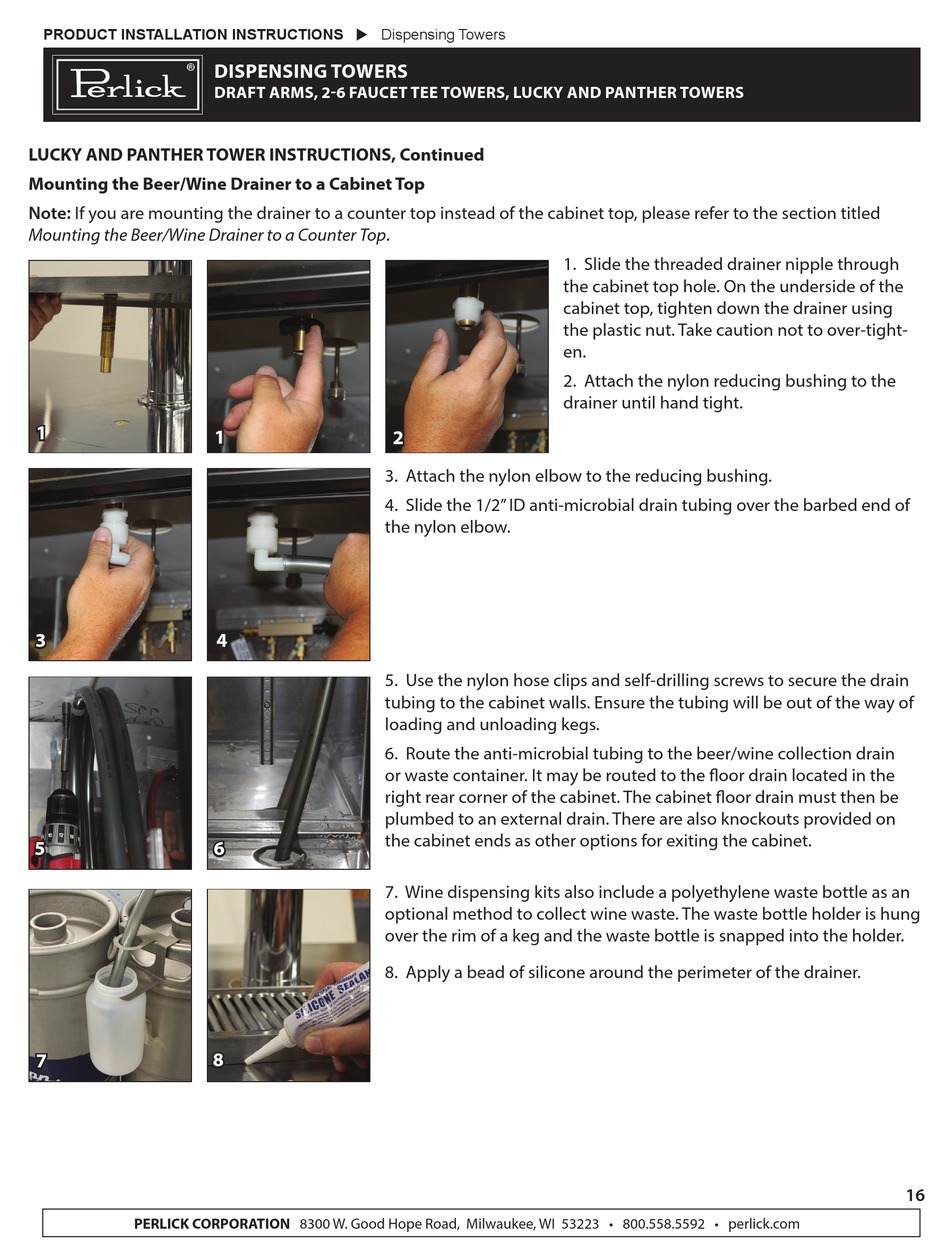

Mounting the Beer/Wine Drainer to a Cabinet Top

Note: If you are mounting the drainer to a counter top instead of the cabinet top, please refer to the section titled
Mounting the Beer/Wine Drainer to a Counter Top.
1
3
5
7
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
DISPENSING TOWERS
DRAFT ARMS, 2-6 FAUCET TEE TOWERS, LUCKY AND PANTHER TOWERS
1
3. Attach the nylon elbow to the reducing bushing.
4. Slide the 1/2" ID anti-microbial drain tubing over the barbed end of
the nylon elbow.
4
5. Use the nylon hose clips and self-drilling screws to secure the drain
tubing to the cabinet walls. Ensure the tubing will be out of the way of
loading and unloading kegs.
6. Route the anti-microbial tubing to the beer/wine collection drain
or waste container. It may be routed to the floor drain located in the
right rear corner of the cabinet. The cabinet floor drain must then be
plumbed to an external drain. There are also knockouts provided on
the cabinet ends as other options for exiting the cabinet.
6
7. Wine dispensing kits also include a polyethylene waste bottle as an
optional method to collect wine waste. The waste bottle holder is hung
over the rim of a keg and the waste bottle is snapped into the holder.
8. Apply a bead of silicone around the perimeter of the drainer.
8
1. Slide the threaded drainer nipple through
the cabinet top hole. On the underside of the
cabinet top, tighten down the drainer using
the plastic nut. Take caution not to over-tight-
en.
2. Attach the nylon reducing bushing to the
drainer until hand tight.
2
16
