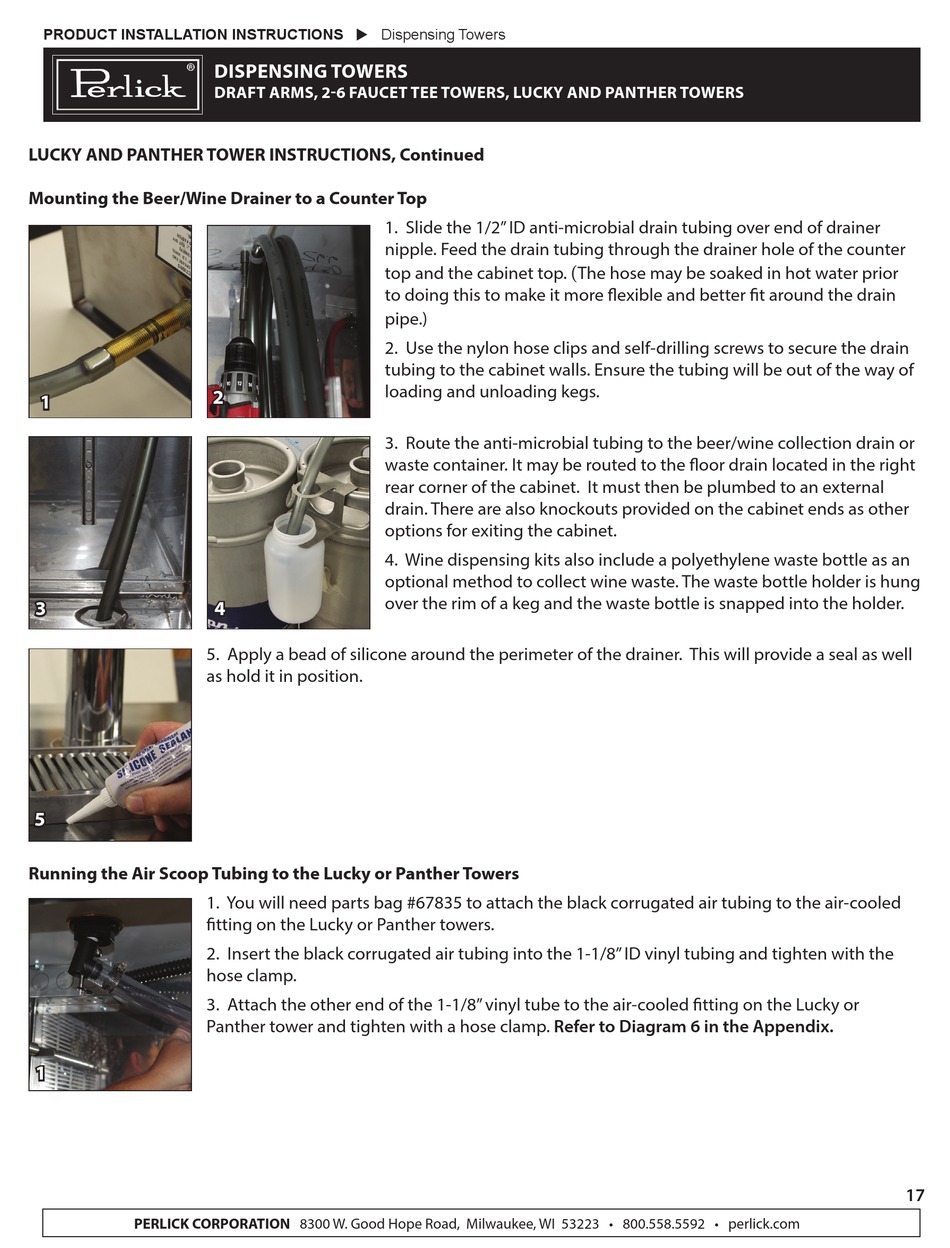

Mounting the Beer/Wine Drainer to a Counter Top

1
3
5. Apply a bead of silicone around the perimeter of the drainer. This will provide a seal as well
as hold it in position.
5

Running the Air Scoop Tubing to the Lucky or Panther Towers

1. You will need parts bag #67835 to attach the black corrugated air tubing to the air-cooled
fitting on the Lucky or Panther towers.
2. Insert the black corrugated air tubing into the 1-1/8" ID vinyl tubing and tighten with the
hose clamp.
3. Attach the other end of the 1-1/8" vinyl tube to the air-cooled fitting on the Lucky or
Panther tower and tighten with a hose clamp. Refer to Diagram 6 in the Appendix.
1
